| Model: | 2608A |
|---|---|
| Brand: | KYORITSU |
| Origin: | - |
| Category: | Electronics & Electricity / Electronic Instrument / Electricity Meter & Instrument |

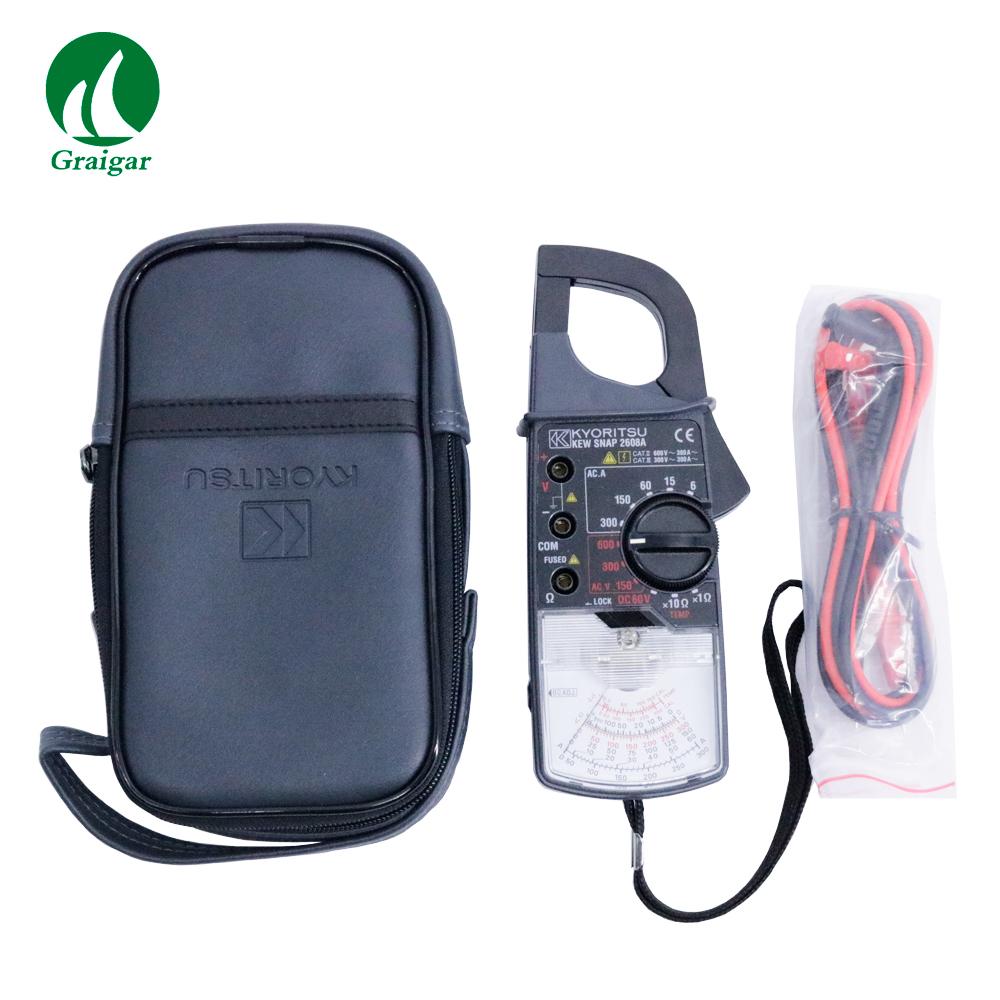

| Label: | KEW SNAP 2608A , AC Clamp Meter , KYORITSU |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |
• DC voltage range is also available especially for checking emergency battery operated power supply.
• Can measure temperature using optional probe.
• Tear drop shaped transformer jaws for ease of use.
AC A 6/15/60/150/300A ±3% of FS
AC V 150/300/600V ±3% of FS
DC V 60V ±3% of FS
Ω 1/10kΩ (25/250Ω mid-scale)
|±2% of scale length
Temperature -20ºC~+150ºC (with the use of Temperature Probe 7060)
|±5ºC (0ºC~+100ºC)
|±10ºC (other ranges)
Conductor Size Ø33mm max.
Frequency Response 50Hz/60Hz
Safety Standard IEC 61010-1 CAT.III 300V Pollution Degree 2
IEC 61010-2-031
IEC 61010-2-032
Withstand Voltage 3700V AC for 1 minute
Power Source R6P (AA) (1.5V) × 1
Dimensions 193(L) × 78(W) × 39(D)mm
Weight 275g approx.
Accessories 7066A (Test leads)
8923 (Fuse [0.5A/600V]) × 2
9097 (Carrying case)
R6P (AA) × 1
Instruction Manual
Optional 7060 (Temperature probe)
8008 (Multi-Tran)
