| Model: | BJ-22B |
|---|---|
| Brand: | KAIYING |
| Origin: | Made In China |
| Category: | Security & Protection / Fire Fighting |
| Label: | diesel fire pump , fire pump facotories , portable pump |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:18 Mar, 2024 |

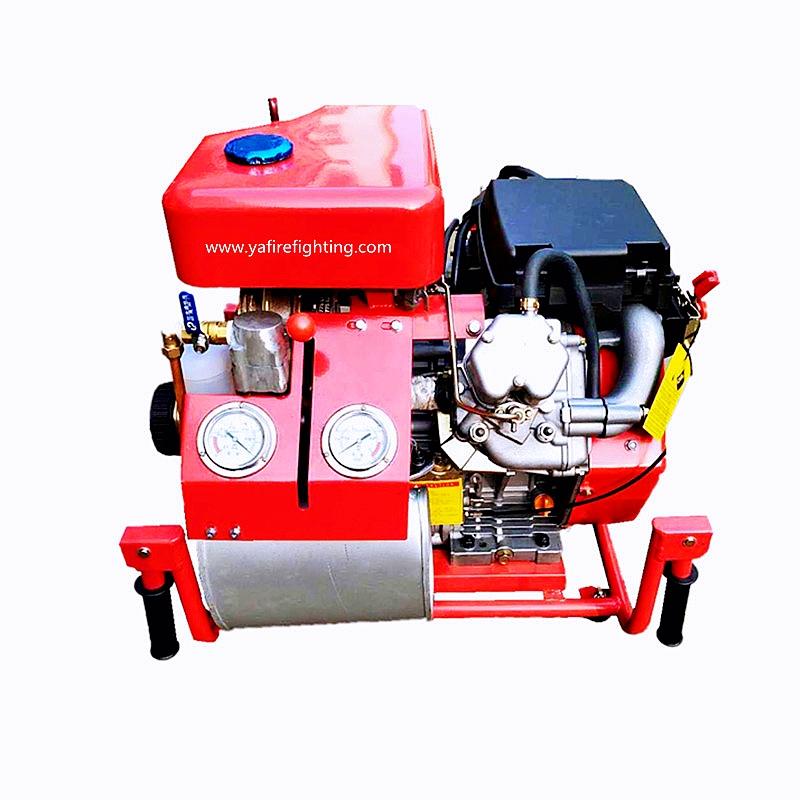

The portable/mobile/ hand-carried fire pump is composed of engine, priming device and centrifugal water pump. It's a kind of multi-purpose pump, mainly designed for fire fighting,suitable for fire fighting in fire rescue departments, professional fire brigades, industrial and mining enterprises, counties,villiages, towns, etc.It has more advantages on narrow roads or places where fire trucks could not reach. It also could be used for drain waterlogging, drought resistance,irrigation,etc. It"s an ideal equipment for watering, water supply and emergency disaster relief.
|
Engine Model |
V-Twin,4-stroke,direct injection WS2V88A |
|
Displacement |
875ml |
|
Max theoretical power |
14kw/25HP |
|
Pump Body |
Single stage |
|
Fuel tank capacity |
7L |
|
Oil capacity |
2.3L |
|
Starting system |
Electric |
|
Flow |
1200L/M |
|
Pressure |
0.6mpa |
|
Max suction depth |
≥7m |
|
Priming type |
Rotary vane vacuum pump |
|
Priming time |
≤20s |
|
Pump head |
80m |
|
Inlet |
80mm |
|
Outlet |
65mm |
|
Weight |
100kg |
|
Appearance dimension |
720x630x630mm |
