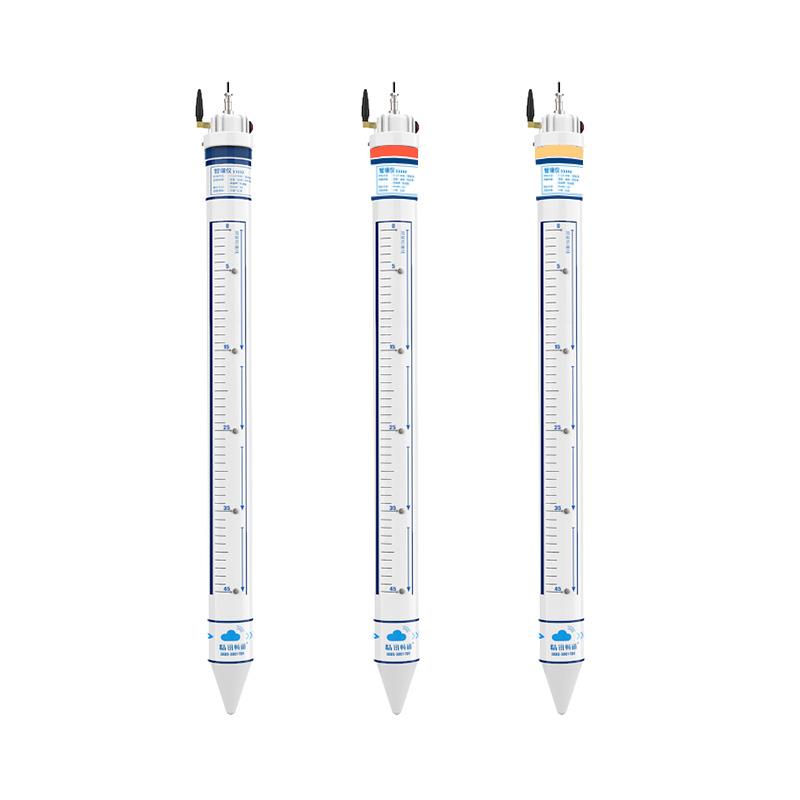

![Multi Depth [JXCT] Soil Sensor NPK EC Temperature Moisture Tester 1](https://img.diytrade.com/smimg/2973462/50796656-13947948-0/Multi_Depth_JXCT_Soil_Sensor_NPK_EC_Temperature_Moisture_Tester/21a5.jpg "Multi Depth [JXCT] Soil Sensor NPK EC Temperature Moisture Tester 1")
![Multi Depth [JXCT] Soil Sensor NPK EC Temperature Moisture Tester 2](https://img.diytrade.com/smimg/2973462/50796658-13947949-0/Multi_Depth_JXCT_Soil_Sensor_NPK_EC_Temperature_Moisture_Tester/4f3b.jpg "Multi Depth [JXCT] Soil Sensor NPK EC Temperature Moisture Tester 2")
![Multi Depth [JXCT] Soil Sensor NPK EC Temperature Moisture Tester 3](https://img.diytrade.com/smimg/2973462/50796660-13947950-0/Multi_Depth_JXCT_Soil_Sensor_NPK_EC_Temperature_Moisture_Tester/3c39.jpg "Multi Depth [JXCT] Soil Sensor NPK EC Temperature Moisture Tester 3")
| Model: | JXBS-3001-TDR |
|---|---|
| Brand: | JXCT |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electrochemical Products |
| Label: | Multi Depth Soil Sen , soil sensor , Temperature Moisture |
| Price: |
US $670
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:20 Dec, 2021 |
Multi Depth Soil Sensor Integrated Soil NPK EC Temperature Moisture Monitoring
The white tube type intelligent soil sensor is a new type of intelligent agricultural soil sensor designed on the principle of TDR non-contact measurement, easy to install, accurate and other intelligent agricultural soil sensor.The soil tester can quickly and accurately monitor the temperature and humidity, conductivity, nitrogen, phosphorus and potassium in different soil layers.
Features:
1. TDR non-contact measurement
2. Comprehensive and accurate, dynamic monitoring
3. Automatic temperature compensation without calibration
4. ABS integrated shell, service life can reach 10 years.
The soil sensor are widely used in soil monitoring, agricultural greenhouses, pastoral irrigation, and water conservancy projects
| Multi Depth Soil Sensor Parameters | |
| Power Supply | 12V DC, Solar charging |
|
Comunication Method |
RS485/ GPRS |
| Moisture Range | 0-100% |
| Moisture Accuracy | ±3%(0-53%) ±5%(53%-100%) |
| Resolution | 1%RH |
| Temperature Range | -20~80℃ |
| Temperature Accuracy | ±0.5℃ |
| Resolution | 0.1℃ |
| Working Environment | -20~80℃ 0-95%, non-condensing |
| Protection Level | IP67 |
