Pharmaceutical Metal Detector Description
Applications.
It is suitable for the testing of cookies, potato chips, baby food, pharmaceuticals and other small packaging products.
Main functions.
Data can be exported: The system can export production information to spreadsheet and connect with SPC system.
Live animation: The system supports FEMA connection. The animation completely simulates the actual performance in the form of animation, making it easy to track any abnormal activity.
Autosave: The system automatically saves inspection images for easy comparison.
Comprehensive Software: The system has advanced shielding function, optimizing the inspection sensitivity, and inspecting quality defects in products.
TONEDO Small Package X-Ray Machine Features:
Safe and Reliable: X-ray leakage is less than 1µSv/hour which is complying America FDA Standards and Europe CE Standards. The X-ray radiation is much less than 1Gy that is extremely safe for people.
Designed Complete Shielded Structure: It can prevent leakage accident caused by users’ wrong operation.
Friendly Operation Interface: The X-ray inspection system is with 17inches full colour touch screen, easy to use.
Automatically Save Detecting Parameters: Users do not need to set data by themselves. The images will be stored automatically, in order to ensure product safety and quality control.
Easy Cleaning And Maintenance: Detachable structure makes cleaning easy.
IP Rate: IP66 for detecting tunnel, IP54 for rest of the body for harsh washdown environments.
Strong Environmental Adaptability: The X-ray inspection system is equipped with industrial air conditioner, which is capable of operating temperature from 0℃ to 40℃, being suitable for tough environment.
Full-airtight Case: Sealing system to avoid water and dust, equipped with high performance dehumidifier device, which can endure high humidity up to 90%.
Top Grade Components, Class-leading Stability: All parts are from world famous suppliers, ensuring high performance and long life.

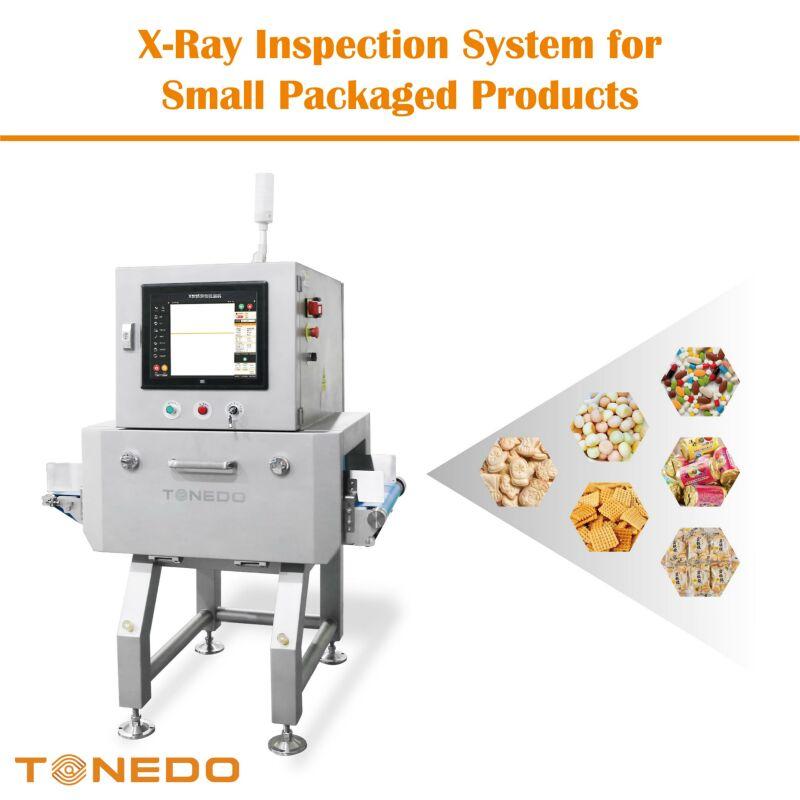

TTX-2417K100
X-Ray Inspection System for small packaged products
Technical Parameters
|
Model |
TTX-2417K100 |
|
X-Ray Generator |
40-100kV (Adjustable) |
|
Inspection Width |
240mm |
|
Inspection Height |
170mm |
|
Non-load Inspection Sensitivity |
Stainless steel ball Φ0.3mm Stainless steel wire Φ0.2*2mm Ceramic ball Φ1.0mm Glass ball Φ1.0mm |
|
Conveyor Speed |
10-70m/min. |
|
Display Screen |
17”full color touch screen |
|
Interface |
LAN Port, USB Port |
|
Working Environment |
Temperature: -10℃-40℃ (Cooling method: Industrial air conditioner) Humidity: 30%-90%, Preventing Dew (Dehumidification method: dehumidifier device) |
|
X-ray Leakage |
＜1μSv/hour |
|
Protection Mode |
Protective curtains (Detachable) |
|
Alarming System |
Alarm and machine stops (Rejecter optional) |
|
Power Supply |
AC220V ±10% 50/60Hz, 1.5kVA Max |
|
IP Rate |
IP66 |
|
Main Material |
SUS304 |
|
Application |
Packaged and products in bulk |
|
Loading Capacity |
Standard: ≤5kg (On the whole conveying belt) |
TTX-2417K100 Configuration
|
Brand |
Parts |
Specification/Model |
QTY. |
|
IEI |
Industrial Personal Computer |
- |
1 |
|
IEI |
Touch Screen |
17”Full Color Touch Screen |
1 |
|
Orientalmotor |
Inverter |
0.18KW |
1 |
|
DT |
Detector |
X-Scan 0.4 c5-256 |
1 |
|
MINNO |
Industrial Air Conditioner |
1000W |
1 |
|
VJ |
X-Ray Tube |
40-100KV (Adjustable) |
1 |
|
Orientalmotor |
Motor+Reducer |
90W |
1 |
|
OMRON |
Switcher |
|
3 |
