12V2A Switching Power Adapter with CE UKCA
Product Description
UKCA 12V2A Power Adapter
Model No.: JHD-AP024B-120200BA-A,
Out：12VDC,2A
Input voitage range ：100-240V AC
Input voltage frequency ：50-60Hz
Variation Frequency ：47~63Hz
Standby power dissipation ：meet CoC V5,DoE Ⅵ
Safety Certification ：UKCA
12V 2A AC-ADAPTER 12V 2000MA AC/DC ADAPTER Product Reliability
Electric Strength(Hi-pot) ：Primary to Secondary: 3000Vac 10mA 60S
Leakage Current ：0.25mA max. at 240Vac / 50Hz input
Protection ：Over-voltage Protection, Over-current Protection,Short Circuit Protection
ESD ：Contact discharge performance is 4KV;Air discharge performance is 8KV
Temperature Rise (Burn-In) : 85-95% Load For Each, 40 ± 5 ℃, 4 Hours.
Insulation Resistance ：100MΩ min. @ primary to secondary add a 500Vdc test voltage
EMC : EN55014/24/32/35 & EN61000
Wide input voltage range, in line with global standards.
| Payment Terms: | TT |
| Lead Time: | 45days |
| Standards Certificate: | UKCA,CE,ROHS |
| |

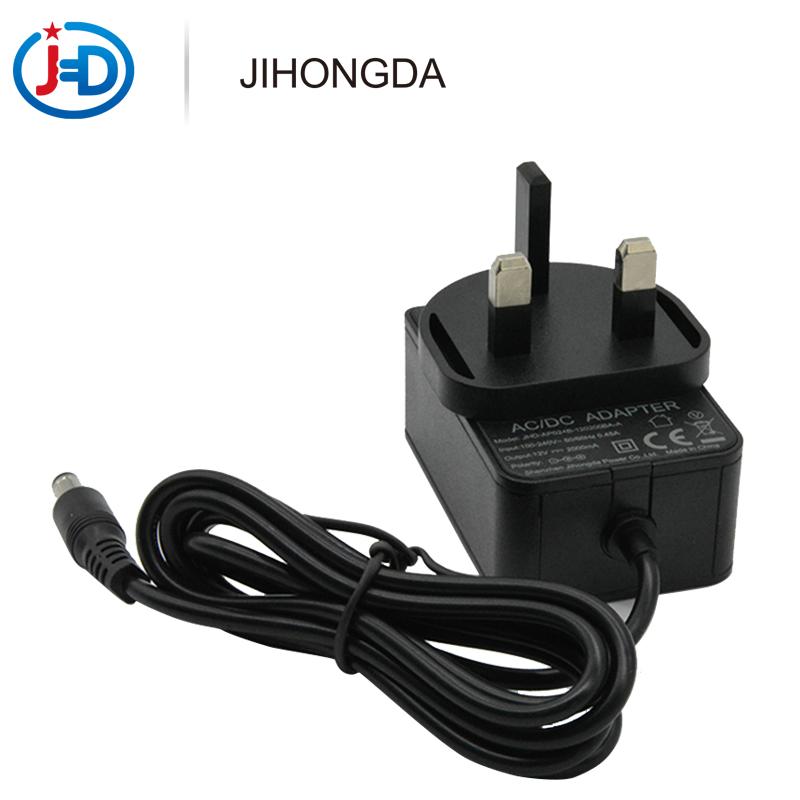

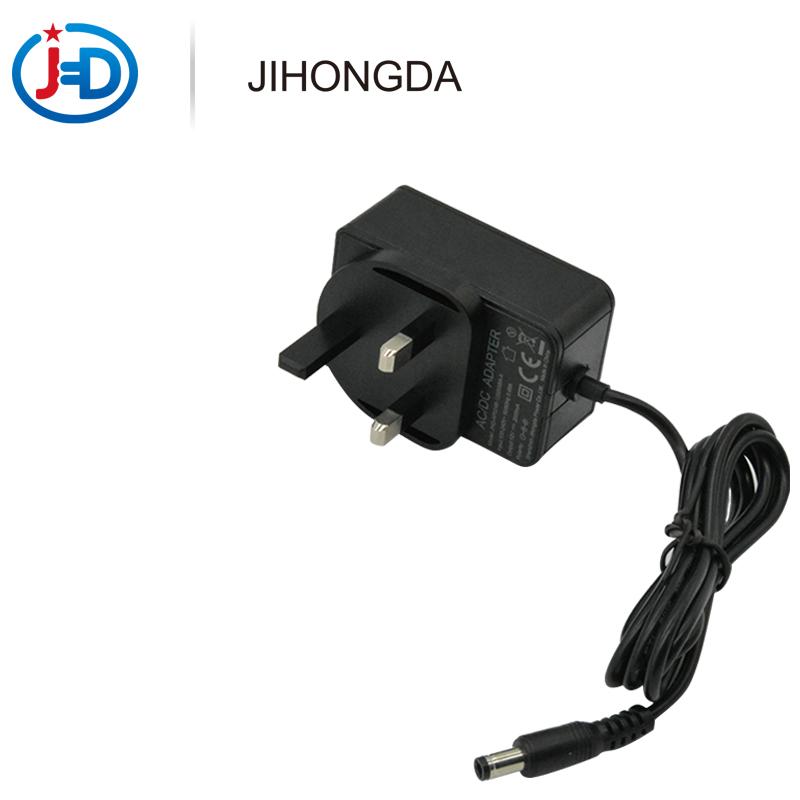

Product Image
