| Model: | TH-280SK2 |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Packaging , Printing & Paper / Printing Materials |
| Label: | Skateboard heat tran , Skateboard transfer , Skateboard printing |
| Price: |
US $9600
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 Aug, 2023 |
Specification
|
Model No |
TH-280SK-2 |
Maximum workpiece height |
50mm |
|
Printing color |
single color/ multicolor |
stamping temperature |
0- 300℃ |
|
printing speed |
150-250 PCS/H |
stamping pressure |
≤2000kgf |
|
roller size |
￠250*280mm |
Wattage |
1100W |
Advantage
1. PLC program independent control
2. Single cycle
3. Transfer station: 2 stations
4. Item count: Yes
5. Speed adjustment: Yes
6. Delay in each part: Yes
7. Printing speed: 150-250 times/hour
8. Drive: hydraulic, frequency conversion motor
9. Control system: PLC control
10. Rubber roller size: ￠250×280mm
11. Up and down stroke of hydraulic cylinder: 75 mm
12.Maximum workpiece height: 30mm
13. Hot stamping temperature selection range: room temperature～280℃
14. Selection range of hot stamping pressure: ≤2000kgf
15. Heating power: 11KW
16. Net weight: 750KG
17. Net size: 1560*700*2050mm
1. Using PLC programmable controller, high sensitivity, touch screen operation interface, simple and convenient.
2 Using 2 sets of 2P hydraulic cylinders to press down, the transfer pressure is high;
3. Using double straight elbow hydraulic cylinder lifting type, faster speed; machine running more stable.
4. The double oil cylinders are independently controlled, and the mechanical parts are also independently adjusted and operated; it is convenient for safe and fast operation;
5. The temperature and transfer time are adjustable; the accuracy is high, and the stability of the whole machine is super good;
6. The height of the hot stamping head is adjustable; the heating tube adopts a single heat pipe in series to keep the temperature of the hot stamping rubber head even.

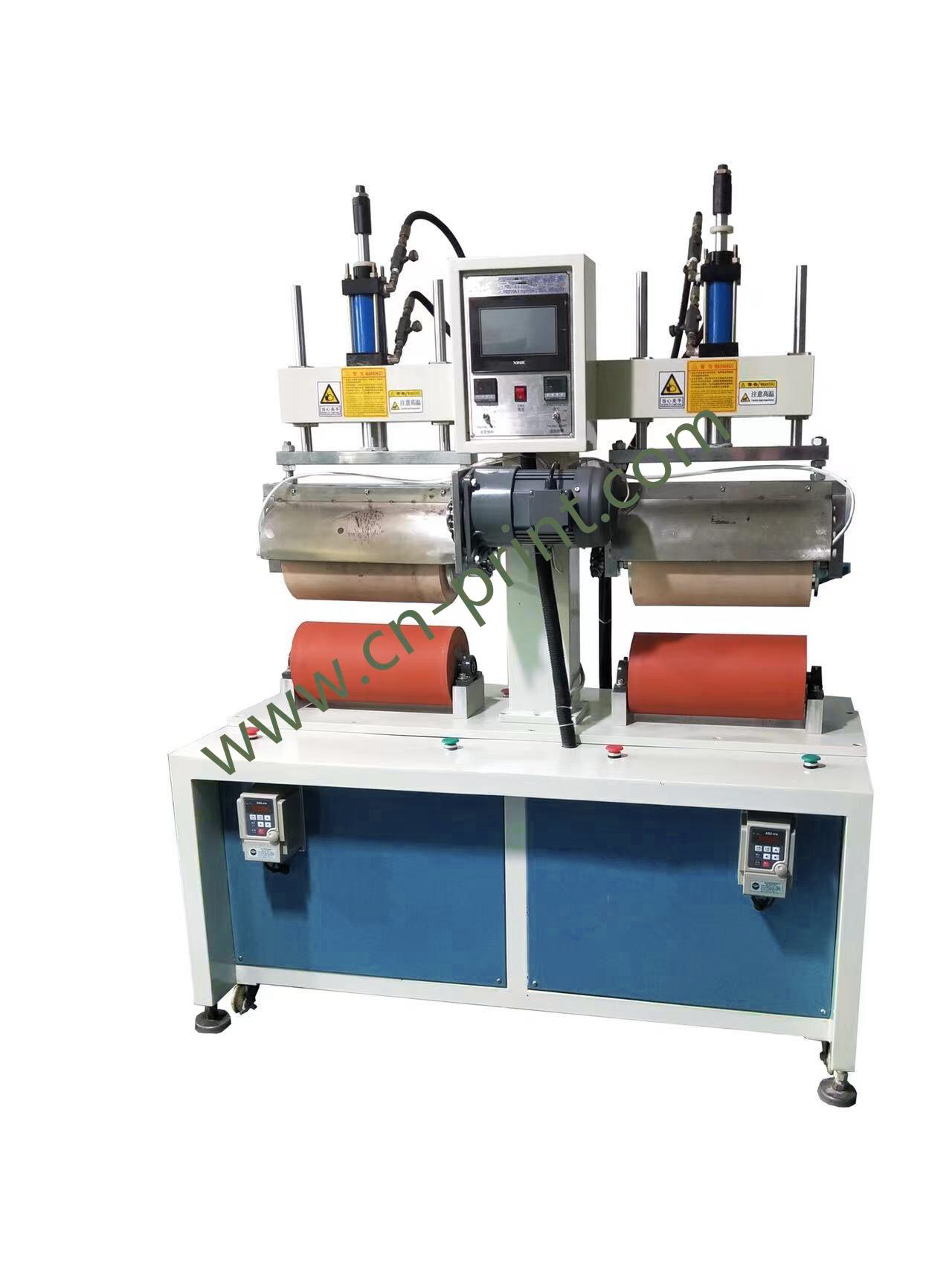

The special double-head heat transfer machine for skateboards conforms to the latest engineering specifications. After the program
is set to stop the main power supply, the ironing head motor will automatically power off after 50 minutes of continuous operation
(protect the rubber roller from being burned when it is turned off under high temperature);The requirement is absolutely
trustworthy.
The machine is equipped with an emergency switch: when you press the emergency switch in an emergency, the machine will be powered
off immediately. Back to the starting position, turn out the emergency switch after the matter is handled, you can safely start and return to normal.
