Product Description

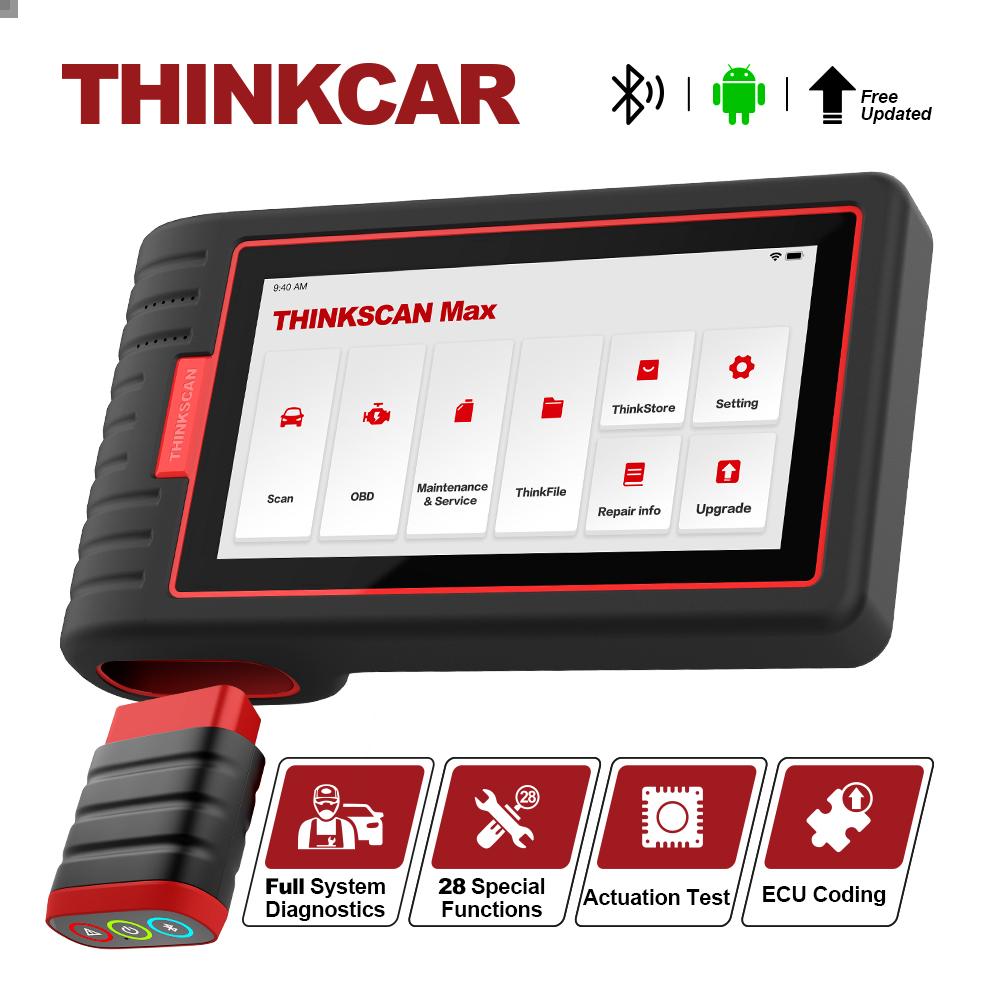

Thinkcar Thinkscan Max 5.99 Inch Professional  Automotive Code Reader Tester Full System/ 28 Reset Function/+Free Upgrade/ More than 100+ Car Brands/ + Bluetooth / Wifi connection ,Supported Auto VIN Scan /ECU Coding/A/F Reset/ Action Test OBD2 Scanner

Why Choose ThinkCar ThinkScan MAX ?

1.Full System Diagnostic for 94 Car Makes:

There are many other full system diagnostic scanners in the market, but most of which only supports 50-60 car makes. However, thinktool mini code reader scan tool will be able to perform full system diagnosis on 94 car makes, offering repairshops more choice and chance no matter what kinds of vehicles you encounter.

2.28 Maintenance Reset Functions:

All 28 Reset Functions are Life-time Free Update !!!

Besides diagnostic function, thinktool mini can also be a maintenance reset tool, then you don't need to buy another service tool. The 16 commonly-used function includes: oil reset, Sunroof reset,EPB service, ABS bleeding, Injector Coding,Suspension reset, Gearbox reset,AFS Headlamp Reset,Throttle Adaptation,Gear Learning, EGR Reset, BMS, SAS,DPF, IMMO, Basic TPMS Reset service etc.

3.Actuation Test,Bi-Directional Test and ECU Coding Supports :( Note : need buy them additional )

Actuation Test Supports ,this function is used to test whether the execution components in the electronic controlsystem can work normally.

Bi-Directional Test and ECU Coding also support ,but need buy them in ThinkStore first !

4.Wireless Connection, Bluetooth Diagnosis:

Many traditional diagnostic scan tools are equipped with diagnostic cables and you have to connect the car scanner with the OBDII port via cable during the diagnosis, which limits the diagnostic distance within 1m. While thinktool mini offers wireless connector, making it convenient and efficient during the work.

5.Lifetime One-Key Update:

You will enjoy lifetime update through one-key wifi update, which is rare in diagnostic market as other diagnostic tools only offer one year free update.

6.Screenshot & Screen Recorder:

You can capture and save the diagnositc process with this feature rather then use the telephone to take pictures.

ThinkCar ThinkScan Max Language :

English , German , Spanish , French , Italian , Japanese , Portuguese

ThinkCar ThinkScan Max Update & Warranty :

Update :1 Year Free Update

Warranty :5 Years warranty

THINKSCAN Max, one of the diagnostic products launched by THINKCAR TECH INC, isthe highest-level OBD product of the THIiNK series for DIY users.Equipped with Androidoperating system, it features powerful functions and can be updated online. Moreover, fullcommunication protocols make it cover a wider range of vehicle models.

Through the simple Bluetooth communication between diagnostic dongle and the hostcomputer, it achieves full car model and full system vehicle trouble diagnosis,whichinclude Reading DTCs, Clearing DTCs,Reading Data Stream, Actuation Test and Special Functions.

ThinkCar ThinkScan Max supports Full system of the cars :

Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics etc.( Great for car repair shops and mechanics to improve business)

THINKCAR ThinkScan Max has 28 service functions which allows you to reset various systems in your vehicle. support more function than other scanners priced similarly :

1 Oil Reset

The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset themileage or driving time to zero after the maintenance, so the maintenance light will go out and the systemwill start a new maintenance cycle.

2 Elec.Throttle Adaption

Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learningvalue of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.

3 Steering Angle Reset

To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor, replacing steering mechanical parts (such as steeringgearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recoveringcar body, you must reset the steering angle.

4 Battery Matching

This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, inwhich the original low battery fault information will be cleared and battery matching will be done.

5 ABS Bleeding

When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system torestore ABS brake sensitivity. lf the ABS computer,ABS pump, brake master cylinder, brake cylinder, brakeline, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

6 Break-pad Reset

lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to theon-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms.

7 DPF Regeneration

DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuouscombustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reducePM ignition combustion) to stabilize the filter performance.

8 Gear Learning

The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped withDelphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, orcrankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.

9 IMMO Service

To prevent the car being used by unauthorized keys, the anti-theft key matching function must beperformed so that the immobilizer control system on the car identifies and authorizes remote control keysto normally use the car. When the ignition switch key, ignition switch, combined instrument panel,ECu,BCM, or remote control battery is replaced, anti-theft key matching must be performed.

10 Injector Coding

Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder soas to more accurately control or correct cylinder injection quantity. After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identifyinjectors to accurately control fuel injection.

11 TPMS Reset

After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.

12 Suspension Matching

This function can adjust the height of the body. When replacing the body height sensor in the airsuspension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.

13 AFS Reset

This feature is used to initialize the adaptive headlamp system.According to the ambient light intensity, theadaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjustthe headlamp lighting angle while monitoring the vehicle speed and body posture.

14 A/T Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impactproblem. In this case, this function needs to be done so that the gearbox can automatically compensateaccording to the driving conditions so as to achieve more comfortable and better shift quality.

15 Sunroof Initialization

This function can set the sunroof lock off, closed when it rains,sliding / tilting sunroof memory function,temperature threshold outside the car etc.

16 EGR Adaption

This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.

17 ODO Reset

a) ODo reset is to copy,write, or rewrite the value of kilometers in the chip of odometer by using a car

diagnostic computer and data cable, so that the odometer shows the actual mileage.

b)Usually when the mileage is not correct due to the damaged vehicle speed sensor or odometer failure, it is necessary to do ODo reset after maintenance.

18 Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator. When the vehicle collidesand the airbag deploys, the corresponding fault code of the collision data appears, the airbag indicatorlights up, and the fault code cannot be cleared. Since the data inside the airbag computer is disposable,it is required that all new accessories must be replaced, but after performing this function, the data of theairbag computer can be recovered and the fault code can be cleared, the airbag light will go out, and theairbag computer can continue to use.

19 Transport Mode

ln order to reduce power consumption, the following functions may be disabled,including limiting thevehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At thistime, the transport mode needs to be deactivated to restore the vehicle to normal.

20 A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

21 Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function inECU(provided that the vehicle has a hidden function and supported by hardware).

22 NOx Sensor Reset

NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalyticconverter learned value stored in the engine ECu.

23 AdBlue Reset (Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or flled up, urea reset operation is required.

24 Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

25 Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

26 Tyre Reset

This function is used to set the size parameters of the modified or replaced tire.

27 Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover theautomatic ascending and descending function of power window.

28 Language Change

This function is used to change the system language of the vehicle central control panel.

ThinkCar ThinkScan Max Full OBD Function :

Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.

On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

The Other Function of ThinkCar ThinkScan Max :

AUTOVIN SCAN:click "diagnose" and "autosearch" after connecting to the vehicle. Then the thinktool mini automotive diagnosti tool will begin to scan the VIN automatically.

One-Key Wifi Update:no need to update on computer. Just click update after connecting wifi, then all softwares will start to update. (you will enjoy lifetime update through one-key wifi update, which is rare in diagnostic market as other diagnostic tools only offer one year free update.)

One-Key Screenshot:use the feature to capture and save the diagnostic process for you rather than take pictures by telephone.

One-Key Screen Recorder:you will hardly find this feature on other scanners. This is one of the biggest advantage of thinktool Mini, which will be a big surprise to those who like recording video of the whole diagnostic process. With this feature, you don't need to hand up a telphone during the diagnosis.

ThinkCar ThinkScan Max Supports about 94 Car software list :

For ASTONMARTIN, For AUDI, For AUSTFORD, For AUSTHOLDEN, For BAIC, For BENZ, For BMW, For BXFIAT, For BXGM, For CHANGAN, For CHANGCHENG, For CHANGHE, For CHR ER, For CITROEN, For DAEWOO, For DAIHATSU, For DFXK, For DR, For FERRARI, For FIAT,FLYER, For FUTIAN, For GAZ, For GM, For HAFEI, For HMAZDA, For HONDA, For HUACHEN, For HYUNDAI, For IKCO, For INDIANMAHINDRA, For INDIANMARUTI, For INDIANTATA, For JMC, For IVECO, For IZH, For JACTY, For JIAO, For JINLONG, For JOYLONG, For ISUZU, For KIA, For LANDROVER, For LIFAN, For LIUWEI_TY, For LUXGEN, For MAHINDRA, For MALAYSIA PERODUA, For MALAYSIA PROTON, For MARUTI, For MASERATI, For MAXUS, For MAZDA, For MITSUBISHI, For MVM, For NISSAN, For OPEL, For PAZ, For PERODUA, For PEUGEOT, For PORSCHE, For PROTON, For QIRUI_TY, For QOROS, For RENAULT, For ROVER, For SAAB, For SAICMG, For SAIPA, For SEAT, For SEAZ, For SGM, For SKODA, For SMART, For SPARK_TY, For SPRINTER, For SSANGYONG, For SUBARU, For SUZUKI, For TATA, For TOYOTA, For TRUMPCHI, For UAZ, For USAFORD, For VAZ, For VOLVO, For VW, For XIALI, For XINKAI, For ZAZ, For ZHONGSHUN, For ZHONGTAI, For ZHONGXING

ThinkCar ThinkScan Max Two Ways Connect car :

wireless diagnosis VS wire diagnosis

wireless diagnosis:thinktool mini + wireless connector

diagnostic distance: 5-10 m

wire diagnosis:scanner+ diagnostic cable

diagnostic distance: 1m

Many traditional diagnostic scan tools are equipped with diagnostic cables and you have to connect the car scanner with the OBDII port via cable during the diagnosis, which limits the diagnostic distance within 1m. While thinktool mini offers wireless connector, making it convenient and efficient during the work. The diagnostic distance can be 5-10 m.

How to Register ThinkCar ThinkScan Max ?

Step 1 : Choose Time Zone

Step 2 : Agree the agreement term

Step 3 : New Registration , Create APP Account .

ThinkCar ThinkScan Max hardware configuration :

Battery Capacity:3100mAh/7.6V

Screen Size: 5.99 inches

Resolution: 720*1440 pixel

Working Voltage: 5V

Working Current: ≤2.5A

Working Environment: 14 °F ~122°F(-10°ºC ~50°C)

Storage Environment: -4 °F ~140°F(-20°ºC~60°C)
