| Model: | B-TH-504E |
|---|---|
| Brand: | BOTO |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Laboratory Instrument |
| Label: | climate test chamber , temp and humidity , product testing |
| Price: |
US $3000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:03 Nov, 2021 |

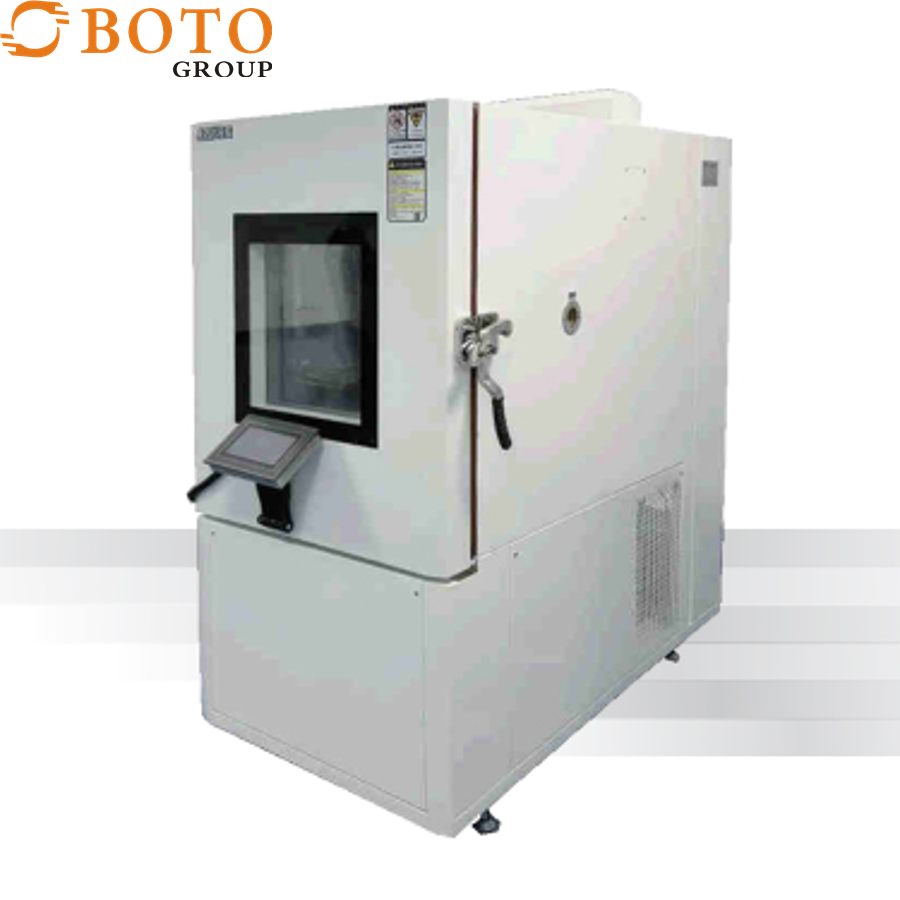

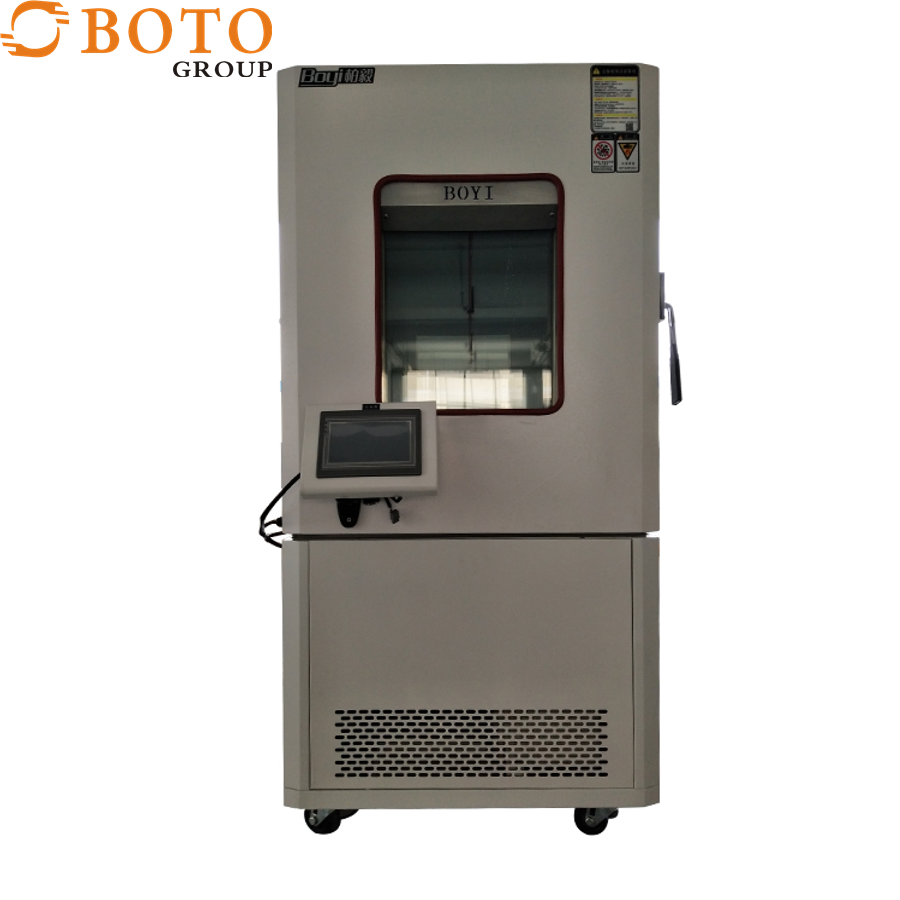

504L -70℃~150℃ Environmental Programmable High&Low Temp&Humidity Chamber for products life span test
TH-XX-X series depends on different temperature and volume needs.
XX represents the volume of the chamber and it can be 80,120,225,408,504,800 and 1000.
X represents the low temperature of the temp range and it can be A 0℃,B -20℃, C -40℃,D -60℃ and E -70℃.
| Model | B-TH-80 | B-TH-120 | B-TH-225 | B-TH-408 | B-TH-504 | B-TH-800 | B-TH-1000 |
| Volume (V) | 80 L | 120L | 225L | 408L | 504L | 800L | 1000L |
| Temperature range |
A: 0°C ~150°C B:-20°C~150°C C: -40°C~150°C D: -60°C~150°C E: -70°C~150°C Customized temperature is available. |
||||||
BOTO product characteristics:
1.The import of compressors and refrigeration accessories by the well-know brands in the national boundaries ensures the stability of the refrigeration system.
2.The cause of the faults can be displayed and the reason is easy to exclude.
3.The special air supply cycle design, the temperature and humidity distribution uniformity is good.
4.The whole series of imported microcomputer controllers are colored. Color touch screen, Chinese and English system, can be used as a function of setting the city value. It can show the cause of the trouble, exclude easy, super quiet design, effectively reduce the running noise of the equipment, and
5.Super quiet design, effectively reduce the running noise of the equipment.
6.Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, over temperature protection, leakage protection.
Standards: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Technical specification:
| Model | B-TH-504 | |
|
Inner chamber size W×H×D(cm) |
70×90×80 | |
|
Outside Size W×H×D(cm) |
100X180X103 | |
| Volume (V) | 504L | |
| Temperature range |
A: 0°C ~150°C B:-20°C~150°C C: -40°C~150°C D: -60°C~150°C E: -70°C~150°C Customized temperature is available. |
|
| Humidity range |
RH20%-98% Customized humidity is available. |
|
| Function | Fluctuation | ±0.5°C ±2.5%RH |
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |
| Refrigeration Way | Single stage compression refrigeration | |
| Refrigerator | French Tecumseh | |
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |
| Condensing Way | Air-cooled or water-cooled | |
| Water Supplying Way | Automatic cycling water supply | |
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system
|
|
