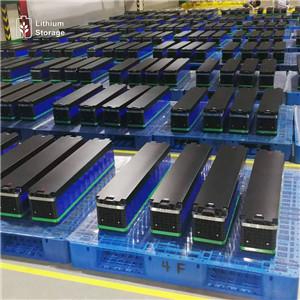

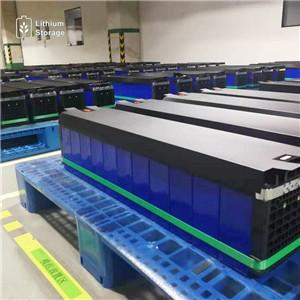

LFP100Ah Standard Module Vda Lithium Ion Battery lithium iron phosphate 100ah
100Ah Lithium Ion Battery Pack Standard Module is composed of 1P8S LFP27173204-100Ah, data collecting unit of BMS and fixed fittings. The capacity and voltage of LFP100Ah Standard Module is 25.6V100Ah. Standard module as the standard group structure can be connected in series to expand voltage and in parallel to expand capacity.
Product Parameter Table
|
No. |
Items |
STANDARD MODULE |
Note |
|
|
LFP100Ah 1P8S-25.6V100Ah |
||||
|
1 |
Nominal voltage(V) |
25.6 |
|
|
|
2 |
Operating voltage(V) |
min |
20 |
T:25±3℃ |
|
3 |
max |
29.2 |
T:25±3℃ |
|
|
4 |
Nominal capacity(Ah) |
100 |
1/3C，100%DOD |
|
|
5 |
Nominal energy（KWh ） |
2.56 |
1/3C，100%DOD |
|
|
7 |
Group mode |
1P8S |
|
|
|
8 |
Module weight（kg） |
19.74 |
|
|
|
9 |
Maximum continuous charge current（A） |
100 |
|
|
|
10 |
Maximum continuous discharge current（A） |
100 |
|
|
|
11 |
Maximum pulse charge current（A） |
200 |
@10S，SOC≤70% |
|
|
12 |
Maximum pulse discharge current（A） |
200 |
@10S，SOC≥30% |
|
|
14 |
SOC operating range（%） |
10~90 |
|
|
|
15 |
Module cooling method |
Natural cooling |
|
|
|
16 |
Module heating method |
No |
Or heating film |
|
|
17 |
Temperature detector qty. |
2 |
|
|
|
18 |
Shipping capacity (SOC) |
50%±5 |
SOC is consistency in the same batch |
|
|
19 |
Temp. Condition（℃） |
Charge |
0~55 |
|
|
Discharge |
-20~55 |
|
||
|
Storage |
-30~55 |
|
||
|
20 |
Dimension L （mm） |
273.5 |
|
|
|
21 |
Dimension W（mm） |
177 |
|
|
|
22 |
Dimension H（mm） |
220 |
|
|
|
23 |
Relevant product standard |
GB/T 31484—2015GB/T 31485—2015GB/T 31486—2015 |
|
|
Applications
Vda Lithium Iron Phosphate Battery products can be applied in trucks, cars, buses, forklifts as driving force and various energy storage systems.
