| Model: | CLC-GL1426 |
|---|---|
| Brand: | CLC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | - |
| Price: |
US $18000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:04 Oct, 2021 |

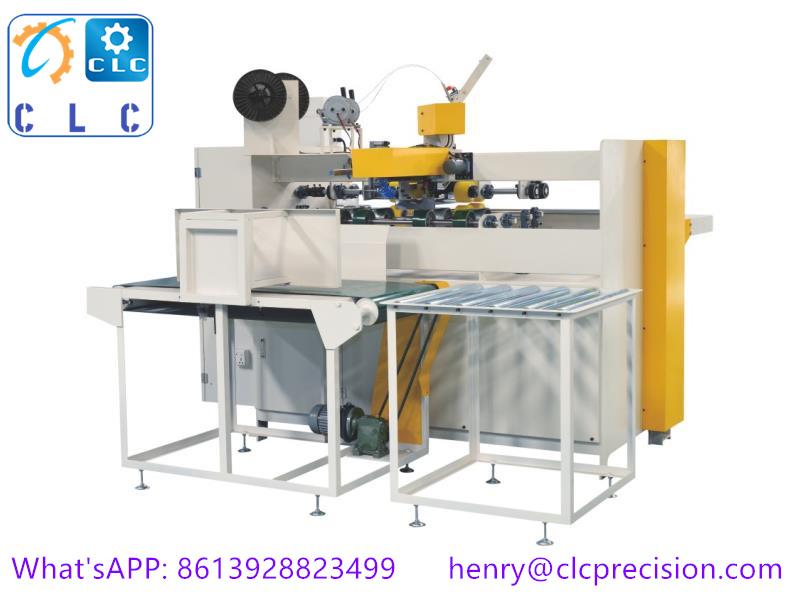

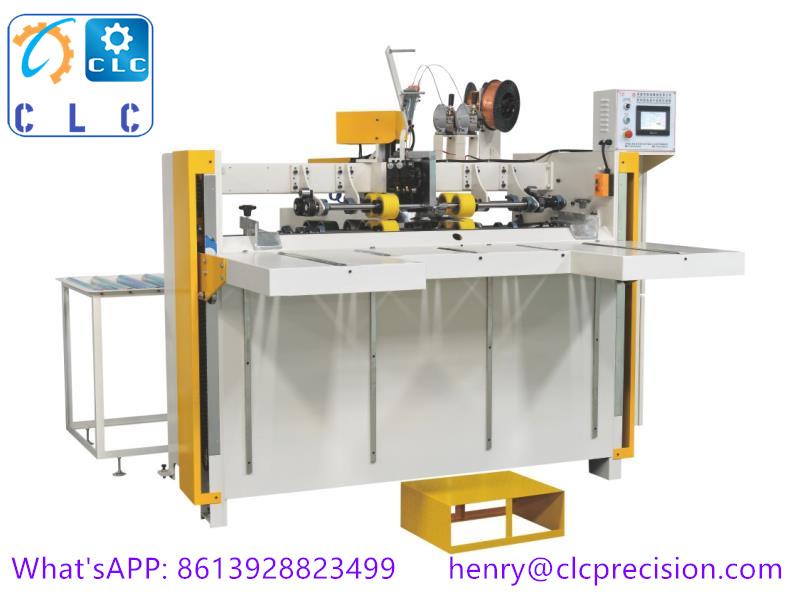

Semi-Automatic Box Stitching Machine
Semi-Automatic Box Stitching Machine, one of post-printing equipment, is mainly used for the stitching of single sheet corrugated cardboard forming, to meet the requirements of multiple varieties and different order.
Finished products are automatically counted and sent in bundles for easy packing.
The standard model of Semi-automatic Box Stitching Machine have CLC-GL1426 only. Also can customized other size according to customer’s requirement.
|
Top working speed(pcs/min) |
500 |
|
Nails distance(mm) |
15-120 |
|
Nails amount(pcs) |
2-999 |
|
Nails selection |
Single/ double/ Mixed nails |
|
Paperboard thickness(mm) |
3-11 |
|
Nails specification(mm) |
17#(2.0x1.0);18#(1.8x0.8) |
|
Max. sheet length（L+W）X2(mm) |
2800 |
|
Min. sheet length（L+W）X2(mm) |
600 |
|
Max. sheet width（W）(mm) |
Not limit |
|
Min. sheet width（W）(mm) |
300 |
|
Side mark（C）(mm) |
120-500 |
|
Stitching flap（D）(mm) |
30-45 |
|
First stitching length( back stop)(mm) |
15 |
|
Total power(HP) |
5 |
|
Machine size(floor area)(mm) |
2600x2000x1800 |
|
Machine weight(kg) |
1600 |
|
Lifting height of Feeding table (mm) |
900 |
