Max 16A 250V- upgraded for US Military
Labeled 13A, 220V- for marketing
Maximum Capacity 4,000 watts
CE compliant
Size: 6 ¼" x 2" x 1 ¼" Weight: 6.6 oz
6 Outlets built
Socket Input: to be required .
1 5/8" center-to-center spacing
Lightning Surge Protector
No Fuse Circuit Breaker
A Light Indicator (No On/off / Reset Switch)
|

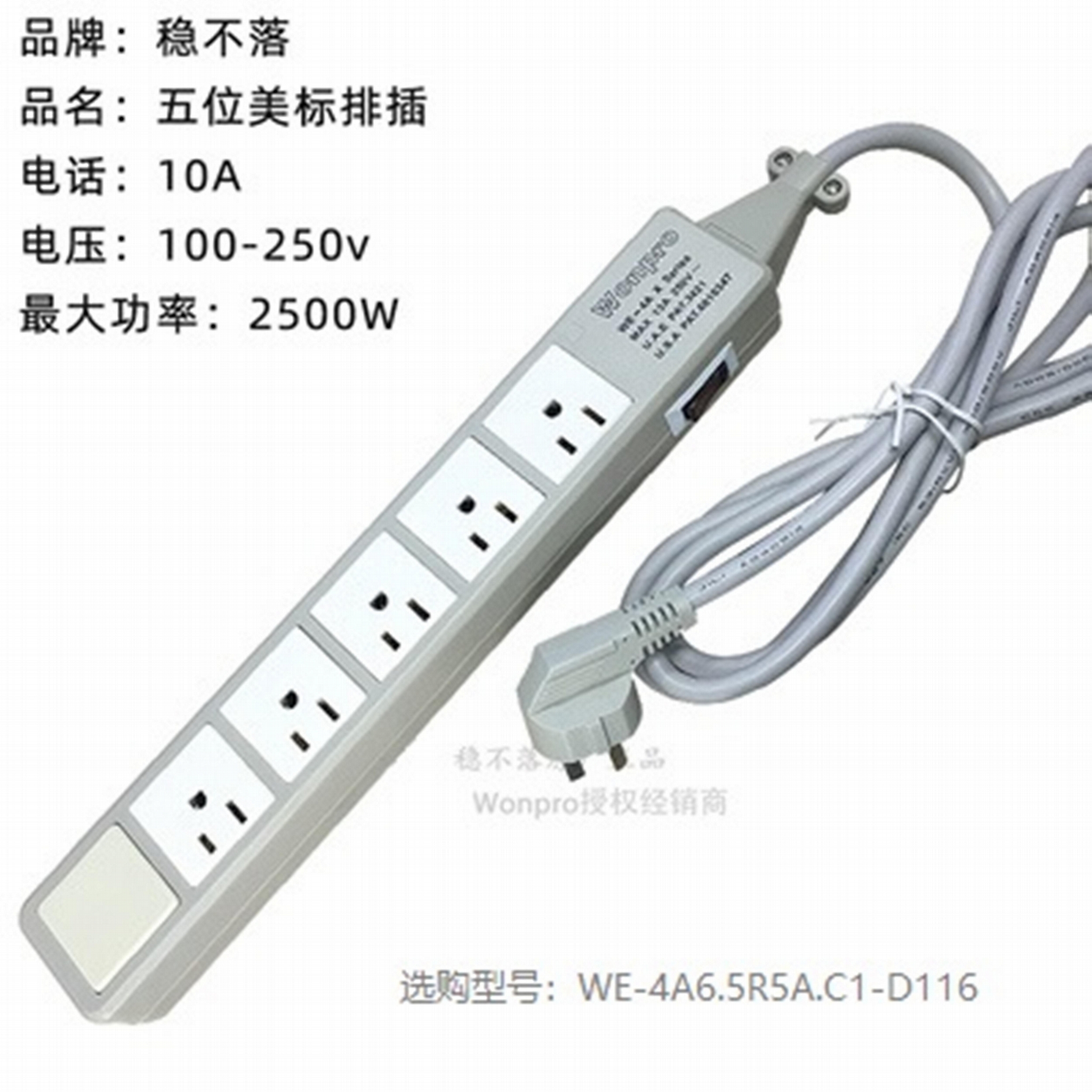

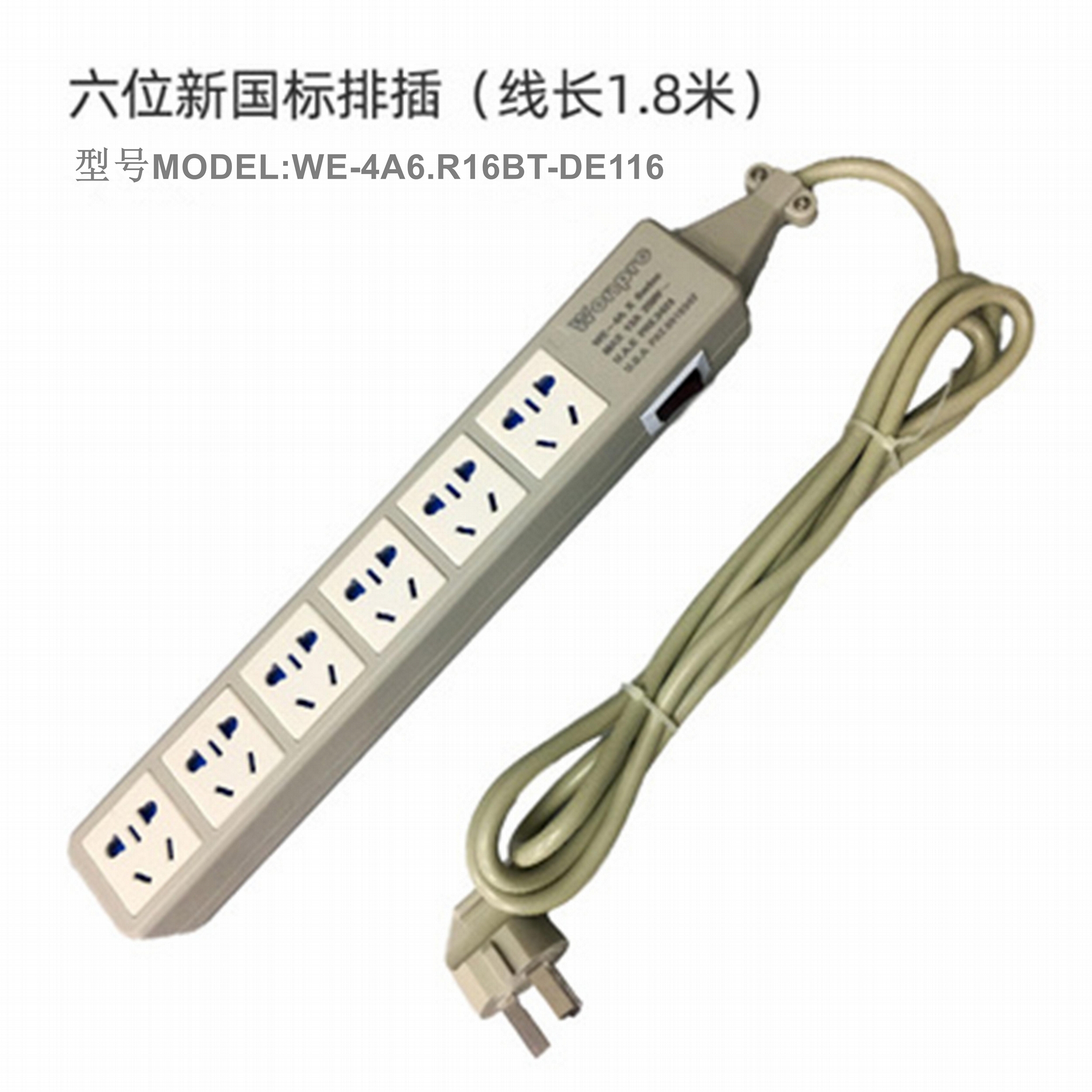

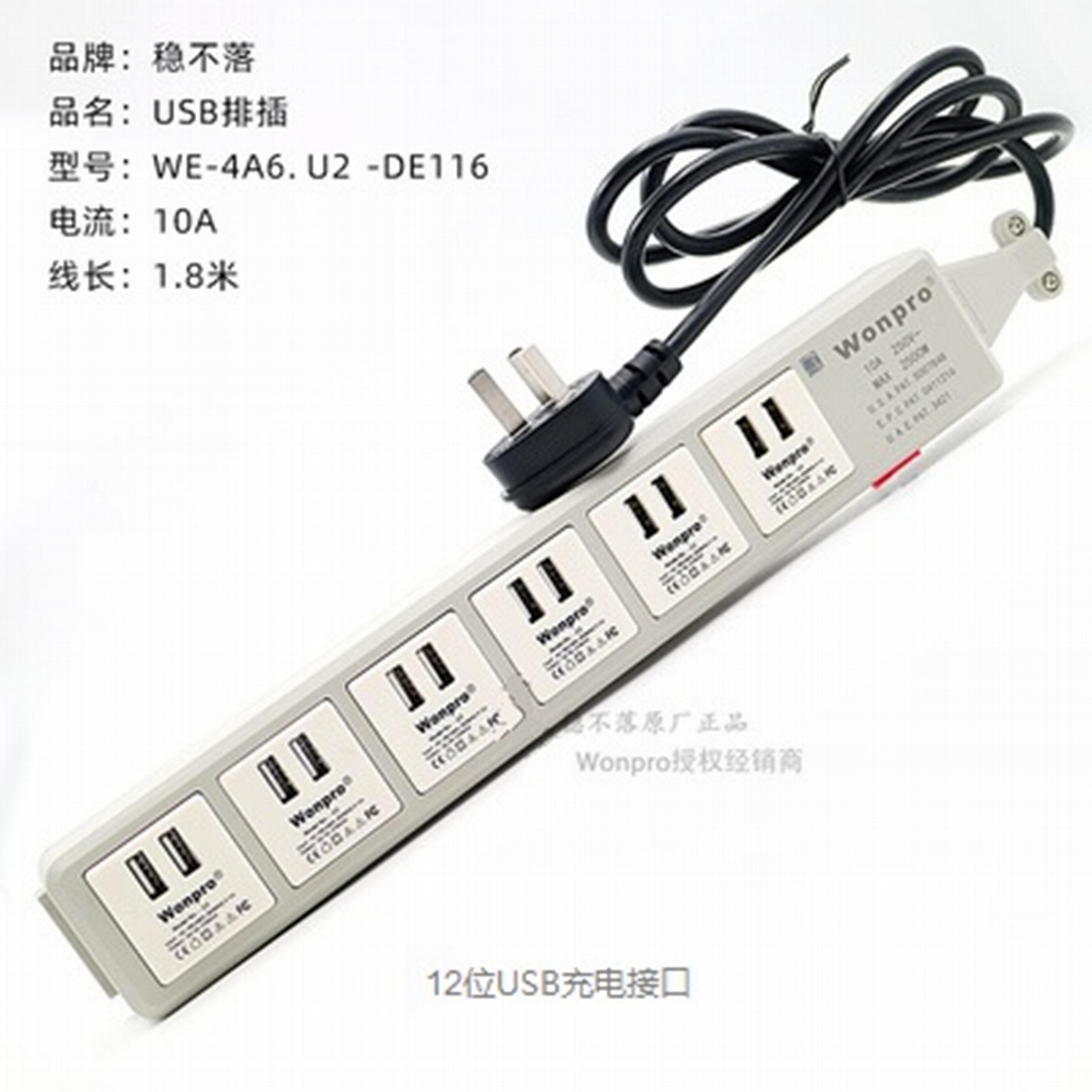

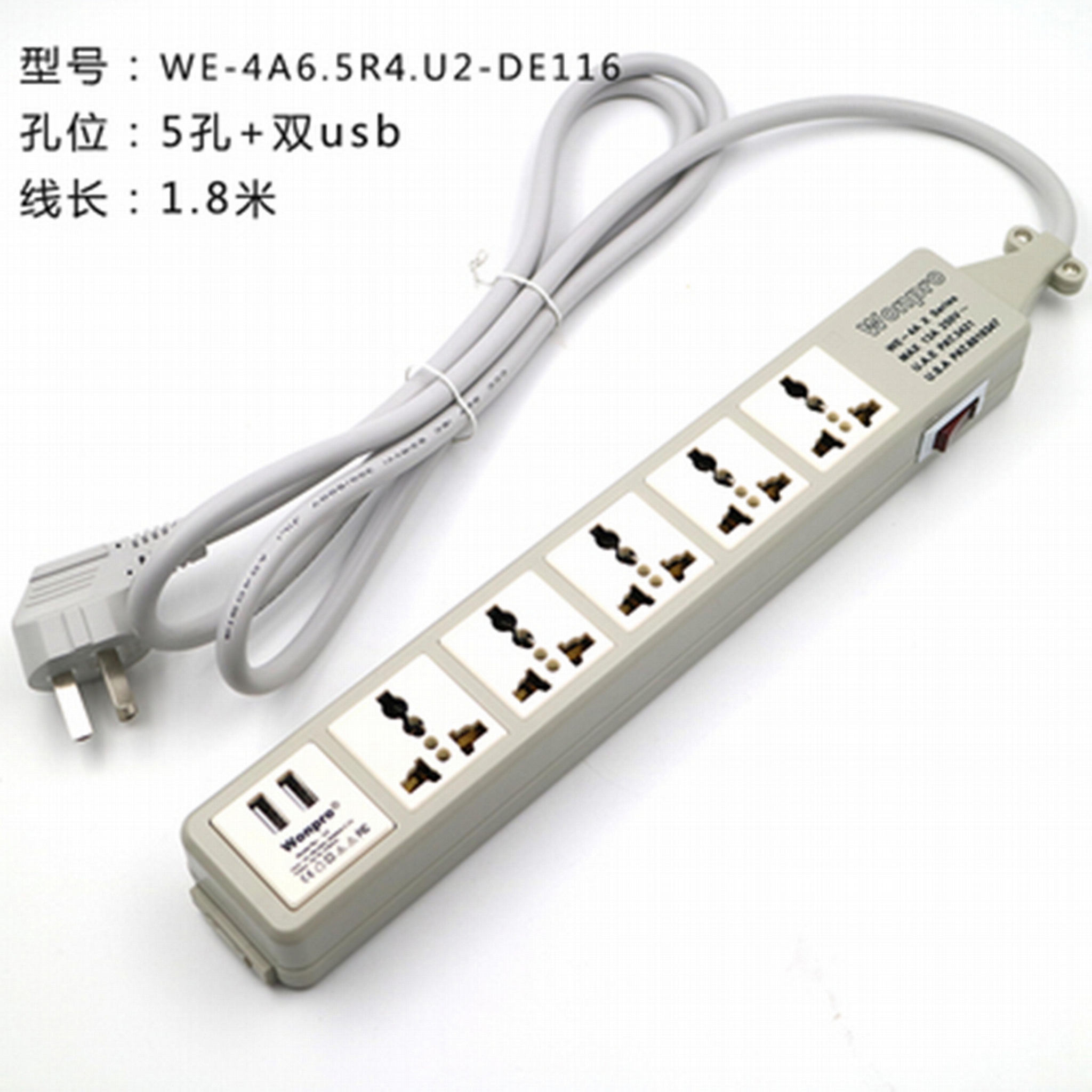

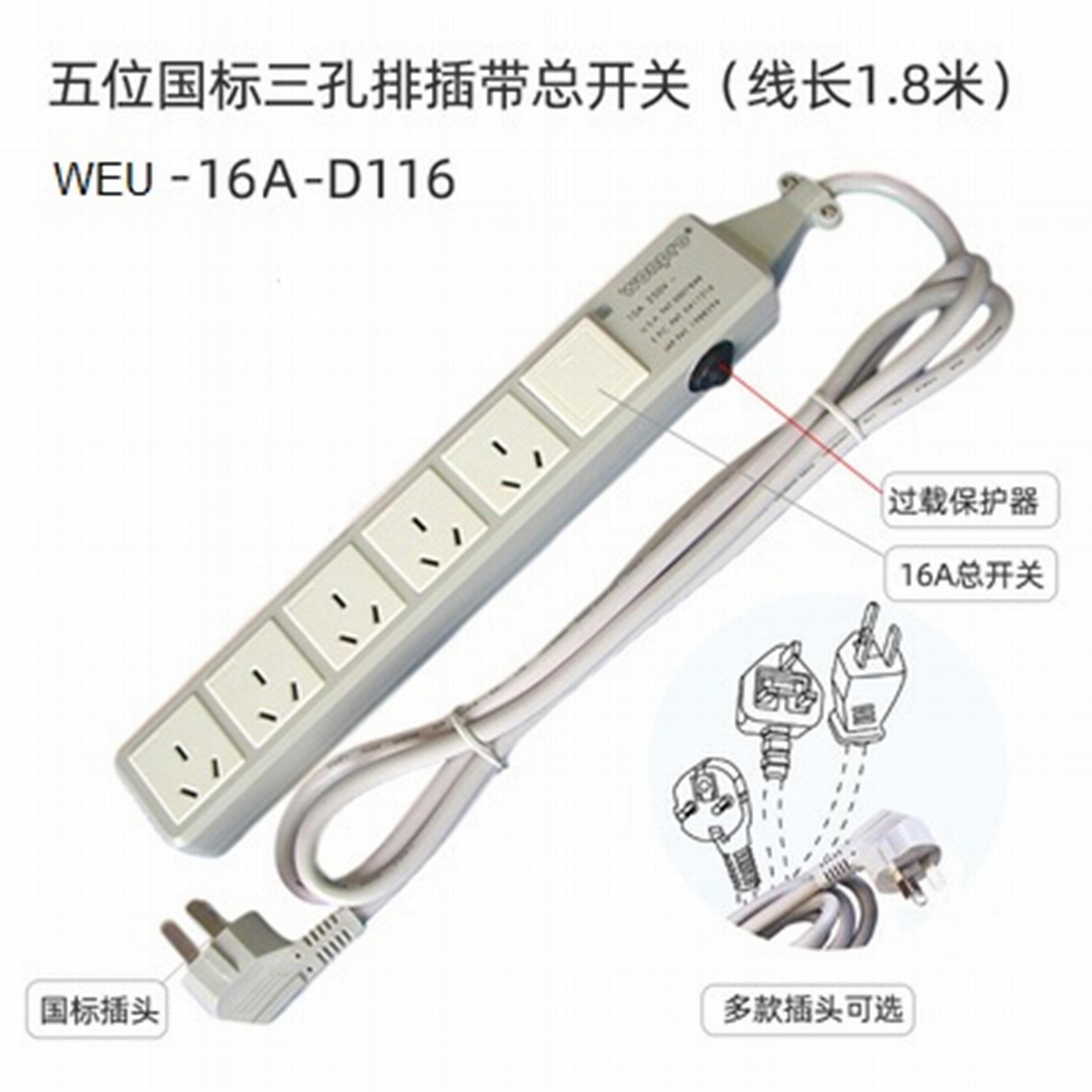

The WE Power Strip Series represents the world's most versatile and configurable universal power strips. Its patented modular receptacle framework and interchangeable power cord design make it possible to configure the WE series power strip with different number or different types of Wonpro universal receptacles and easily detach its power cord and change to another country type.
The unique design lets you convert any single country-specific outlet into multiple universal ones. It is the ideal power strip to bring with you when attending overseas exhibitions and conventions. All 6-gang WE-series power strip models come with built-in surge absorber and circuit breaker for your maximum protection.
WE-Series Universal Power Strip Models
| WE-4 |
 |
3-gang with R4 universal receptacle
2P+E 13A 250V
|
| WE-3 |
 |
3-gang with R3 universal receptacle
2P+E 13A 250V
|
| WE-4A |
 |
6-gang with R4, surge absorber, no-fuse circuit breaker and indicator
2P+E 13A 250V
|
| WE-3A |
 |
6-gang with R3, surge absorber, no-fuse circuit breaker and indicator
2P+E 13A 250V
|
|
How Detachable Power Cord Design Works

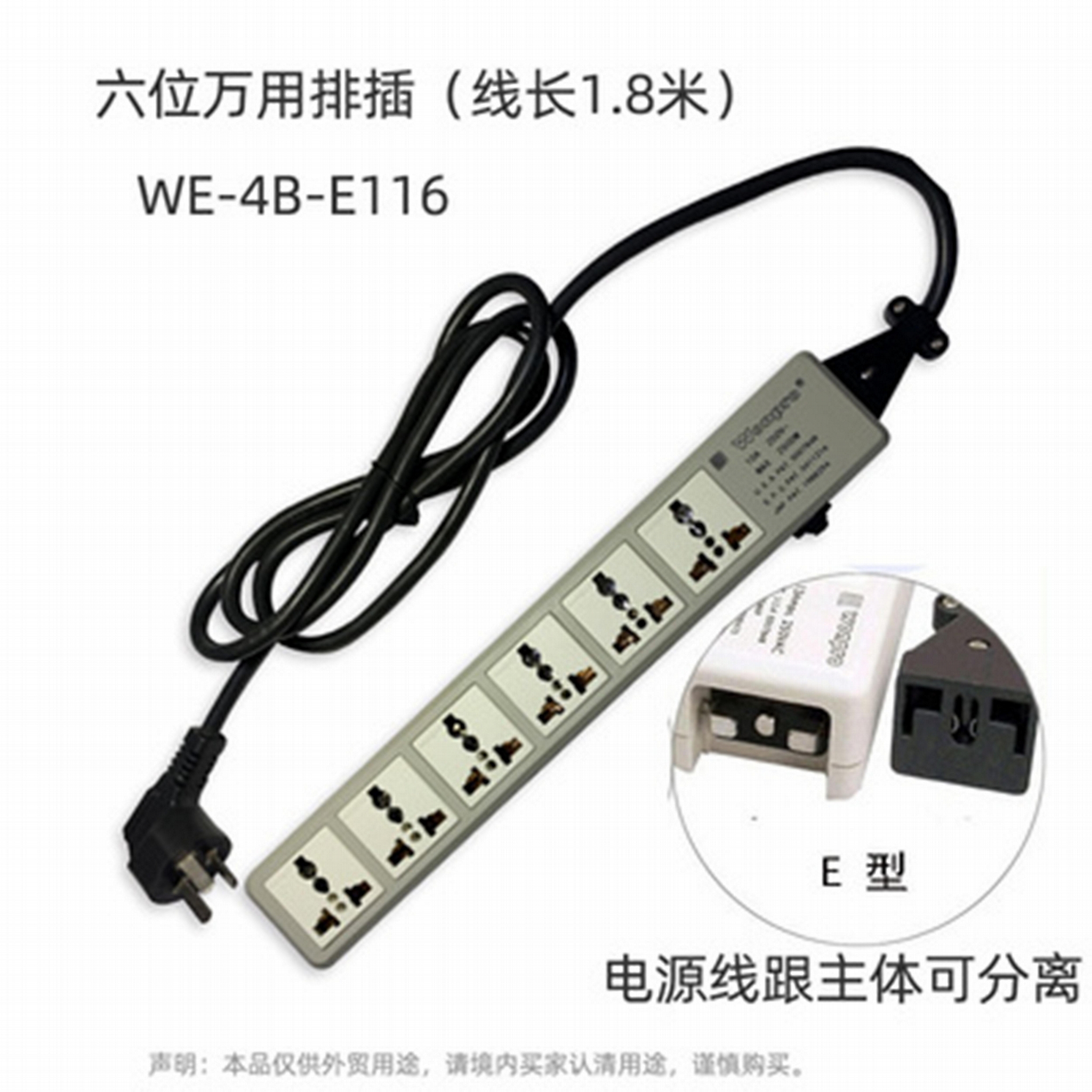

The patented detachable power cord design is made possible with our WSP/WSR secure locking plug and receptacle. With a simple slide-to-lock or unlock motion, you can easily replace the power cord of a WE series power strip from one country type to another in seconds. This unique design vastly increases the configurability and applicability of the WE series power strip for all situations.
 |
 |
WE-109 (Germany, France, European Shuko compatible, etc)
WE-107 (UK, Hong Kong, Singapore, etc)
WE-105 (USA, Canada, Japan, Taiwan, etc.)
|
The picture here shows how the WE power strip can be easily configured with different power cords such as the WE-109 for German, French, Korea, etc, or WE-107 for UK, Hong Kong, Singapore, etc, or WE-105 for USA, Canada, Taiwan, Japan, etc.
WE Series Power Cords
 |
-
This is our patented L-shaped plug to provide a secured, locking, no-slip contact with the receptacle
-
For use with R-Series receptacle R2 & R3
|
 |
- for Taiwan, Japan, USA, Canada, etc.
- 2P+E
|
 |
- For Taiwan, Japan, USA, Canada, etc.
- 2P
|
 |
- For England, Hong Kong, UAE, Singapore, Malaysia, etc.
- 2P+E
|
 |
- Commonly know as the 'Shuko' plug
- Grooved grounding design for use with inlay type outlet
- For Germany, France, Holland, Spain, Korea, etc.
- 2P+E
|
 |
- No Grounding, not for inlay type outlet
- For Germany, France, Holland, Spain, etc.
- 2P
|
 |
- For use with inlay type outlet
- For Russia, and some Middle East, East European, and South American countries.
- 2P
|
 |
- for India, Hong Kong, South Africa, etc.
- 2P+E
|
 |
- For use with inlay type outlet
- For South Africa
- 2P+E
|
 |
- Not for use with inlay type outlet
- For Switzerland
- 2P+E
|
 |
- Not for use with inlay type outlet
- For Italy
- 2P+E
|
 |
- For some Middle East countries
- 2P+E
|
 |
- For Australia, New Zealand, China, etc.
- 2P+E
|
 |
- No Grounding
- For Australia, New Zealand, China,
etc.
- 2P
|
 |
- For 220V only
- For USA, Taiwan, Japan, Canada, etc.
- 2P+E
|
 |
|
 |
- For 220V only
- For USA, Taiwan, Japan, Canada, etc.
- 2P+E
|
 |
- For standard IEC-320 receptacle found in most computer equipment into an universal one
- 2P+E
|
|
