| Model: | - |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | - |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:18 Aug, 2021 |

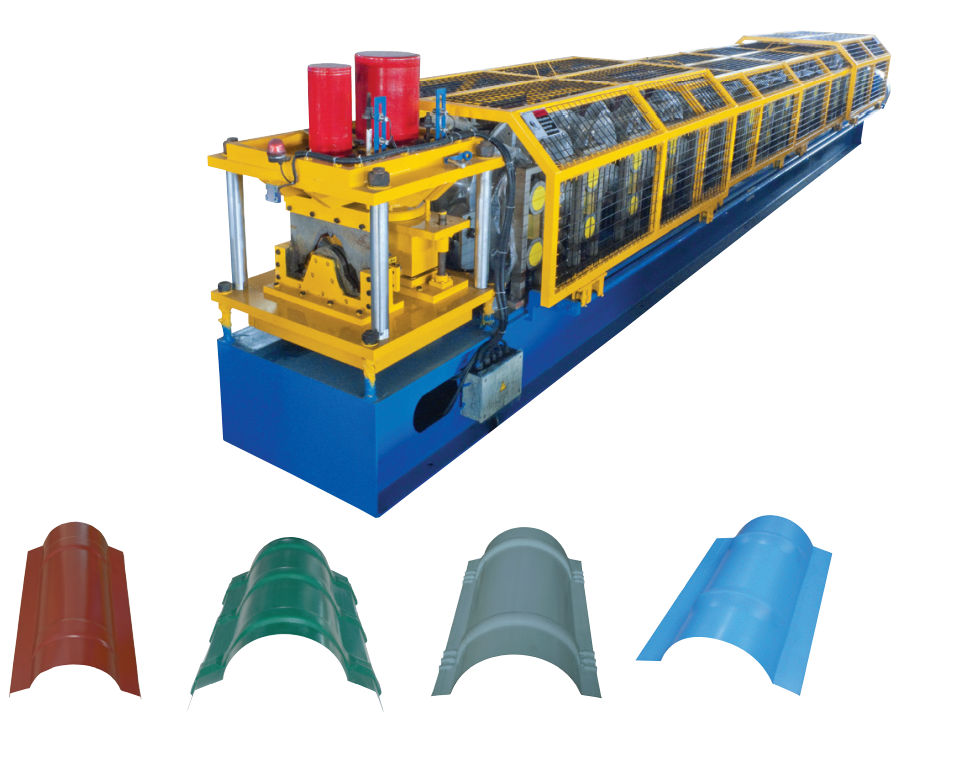

The roll forming machine for ridge cap profile/ridge cap forming machine/ridge cap rofile making machine is used to produce various rainspout with different appearances according to production needs. And the produced product is widely used for Hotels, building material shops, manufacturing plant, manufacturing repair shop, farm, home use and construction etc.
The roll forming machine for ridge cap profile/ridge cap forming machine/ridge cap rofile making machine is composed of hydraulic uncoiler, feeding guide, cold rolling mills, PLC control system, hydraulic cutting, and exit rack etc.
Produced material: Glazed Steel
Thickness: 0.4mm-0.6mm
Feeding width: up to 1220mm
Material of forming roller: 45# steel.
Roll stage: 16 stages as discussed.
Speed:15m/min (Higher speed is available, depends on the specification required by the buyer)
