E-DNS05 All Directions Ionizing Air Snake with sensor

Model:E-DNS05
Brand:IONSTAT/ECW
Origin:Made In China
Category:Security & Protection / Anti-Stati
Label:Ionizing Air Snake , static eliminator , ESD anti static
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Dongguan Xiwei Electronic Technology Co., Ltd

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:29 Sep, 2022

Product Description

Section 1 Introduction

E-DNS05 Ionizing Air Snake is a benchtop hand free air nozzle static charge eliminator. Operator can twist and adjust the height and angle of metal tube to target a specific area or object. It is equipped with a High Voltage device. Airflow and electric power of the device can be controlled by the foot switch or optical sensor switch, which are attached to the device.



E-DNS05 Benchtop Ionizing Air Snake produces air stream, which is charged with both positiveand negative charged ions that can rapidly neutralize the charge on a target object and thus removes static charge and dust and debris that are attracted to a material’s surface by it. Once static charges are neutralized, dust particles and other contamination are freed and carried away by the air stream.



Section 2 –Feature

2.1 Quick neutralization of static charges;

2.2Electric shock protection and sound deadener design;

2.3 Optical sensor switch/Foot switch controls output of HV power and compressed air;

2.4 Adjustable airflow position;

2.5 Air nozzle incorporates with power supply.



Section 3  Specification

Operating Voltage: 220V

Power Consumption: Max. 35VA

Operating Temperature: -10°C ~ +45°C

Operating Air Pressure: 0.3MPa ~ 0.8MPa

Air Velocity: 10m/sec

High Pressure Air Consumption: Approximately 3m3/hour

Weight: Approximately 4.0kg



Testing Result (Normal condition):

Testing Condition

Voltage: 1.0kv ~ 100v, -1.0kv ~ 100v

Temperature: 22℃, RH: ≤60%

Distance

150mm

Decay time

Positive +

1.3s

Negative -

1.5s

Ion Balance

Positive +

-50v ~ +50v

Negative -

Remarks:

1.This data available using a ME268A Charged Plate Analyzer.

2.Test figures are subject to the variation in the atmospheric conditions.


Payment Terms:TT

Product Image

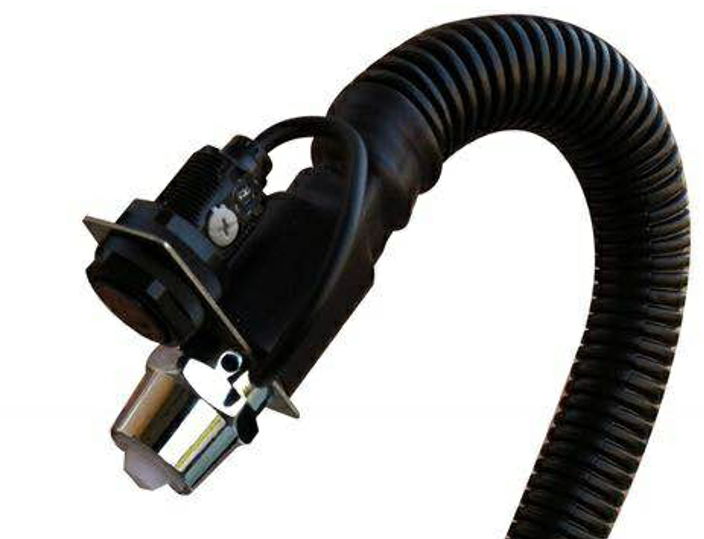

E-DNS05 All Directions Ionizing Air Snake with sensor 1
Img 1
E-DNS05 All Directions Ionizing Air Snake with sensor 2
Img 2
E-DNS05 All Directions Ionizing Air Snake with sensor 3
Img 3
