CE AC benchtop Ionizer static eliminator Ionizing air blower

Model:E-001
Brand:IONSTAT
Origin:Made In China
Category:Security & Protection / Anti-Stati
Label:ionzing air blower , staticeliminator , ESD blower
Price: US $60 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Dongguan Xiwei Electronic Technology Co., Ltd

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:11 Aug, 2022

Product Description

Description

E-001 desktop ionizing blower produces an airflow that is rich in positive and negative ions. Directing the airflow on an object that has a static electricity charge will neutralize the charge.

The desktop ionizing blower is a portable ionized air blower. It uses a small fan to produce air flow. The volume of airflow is controlled by a variable speed control, which provides a wide range of airflow setting. The high voltage AC is applied to a circular arrangement of tungsten steel ion emitter points, which results in an intense alternating electric field at the tip of the emitter points. It is this electric field that creates alternating polarity ions in the airflow. To assure that the unit is working properly, the high voltage AC is monitored by an ionization indicator lamp.

The desktop ionizing blower features a patented balancing circuit. Also features a patented built-in emitter point clear. Using the point clear takes only seconds. Cleaning the emitter points on a weekly basis prevents the build-up of airborne debris all electrical ionizers are prone to. This keeps your blower working in top form for the life of the unit.

The desktop ionizing blower was designed for use with sensitive electronic components, where electrostatic discharge is a problem. The desk-top ionizing blower can also be used where static electricity causes problems such as: attraction of dirt to product, misalignment of small parts due to electrostatic “jumping” and undesirable adhesion of plastic films due to electrostatic charge.

SECTION 2. Features

  • Small, light weight and portable
  • Rapidly neutralizes static charges
  • Variable speed fan with wide range of air flow
  • Inherently balanced ion output
  • Ionization indicator lamp
  • Optional warm function
  • SECTION 3. Specification

    Input Voltage

    110VAC/220VAC

    Maximum power

    50W

    Ion balance

    ≦ ∣±10∣V

    Dissipation range

    From1000V to 100V < 1.5S(Maximum air volume)

    (According to ESD—STM3.1—2000 Ionization)

    Air Coverage

    30cm*150cm

    Ozone Volume

    < 0.005 ppm(15cm away from the ionizer)

    Working Temperature

    0—50℃

    Fan Speed

    250—500FPM@30cm(Continuously adjustable)

    Noise

    50—57dB@60cm

    Indicator Light

     Illuminating -High-voltage generating ions

    Weight

    2.4KG

    Dimension

    14*21.8*8.3cm

    Optional Part

    Foam filter (30PPI Open Cell Polyurethane Foam)

    Maintenance

    Cleaning, Testing, Calibration

    S estion

    Rotating the ionizing needle cleaning knob on time



    ION OUTPUT (DISCHARGE TIME)

    Away from ionizer

    Left 300mm

    Center line

    Right 300mm

    300mm



    1.3sec



    600mm

    3.2sec

    2.5sec

    3.3sec

    900mm

    6.4sec

    4.6sec

    6.5sec

    1.  Distance measured in mm, decay time measured in seconds.

              2.  Test data available using ME 268A charges plate analyzer.

    3.  Test figures are subject to the variation in the atmospheric conditions.

              4. Discharge times are in seconds from 1000 volts to 100 volts.


Payment Terms:TT Paypal

Product Image

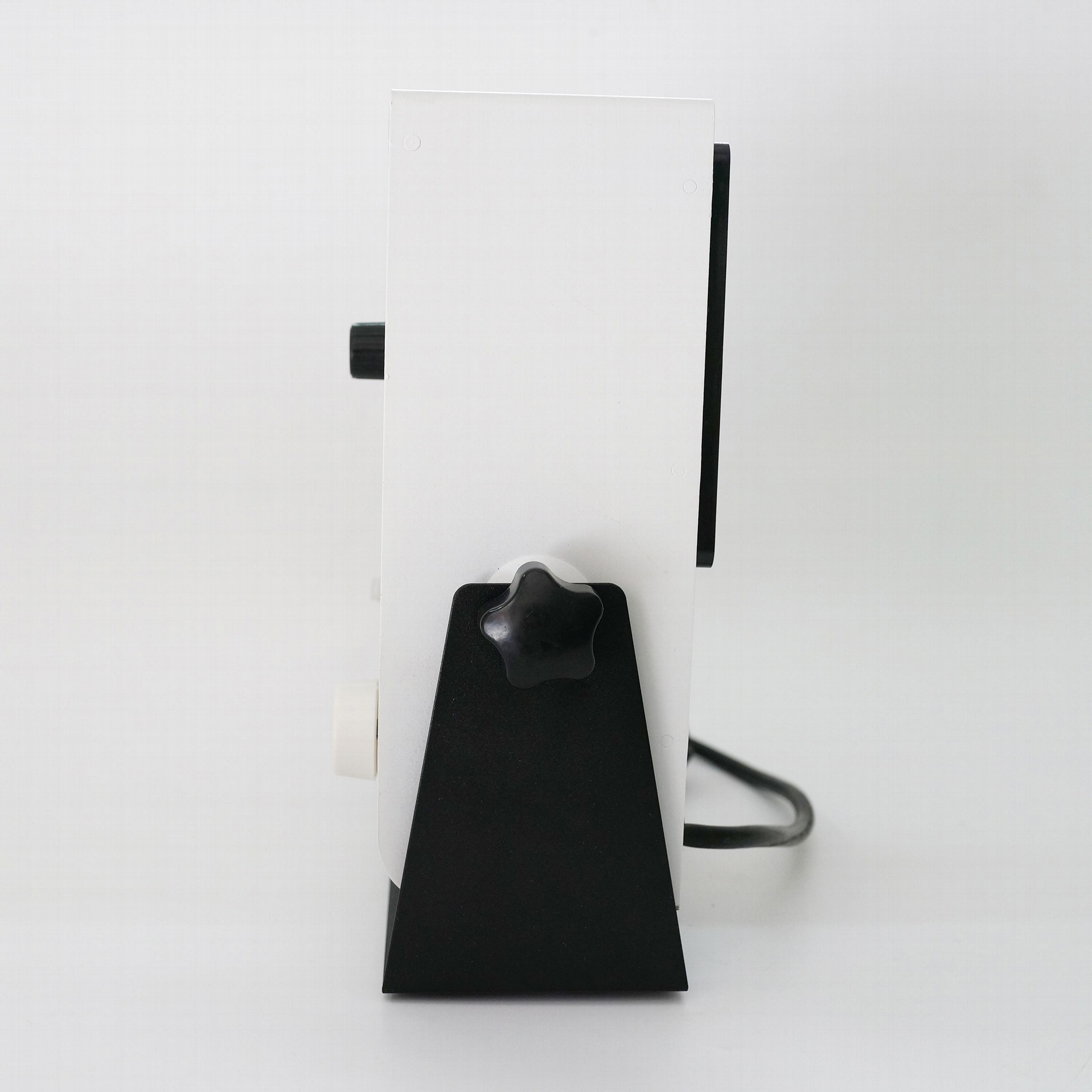

CE AC benchtop Ionizer static eliminator Ionizing air blower 1
