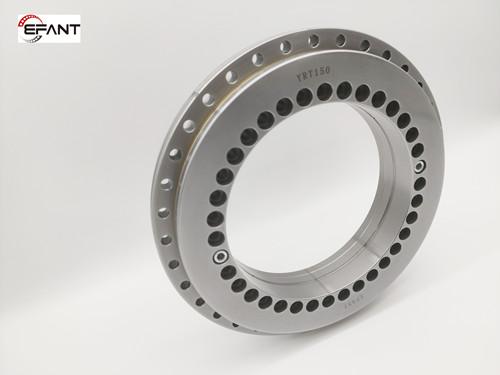

| Model: | YRT150 |
|---|---|
| Brand: | EFANT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Insulation |
| Label: | - |
| Price: |
US $150
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:14 Jul, 2021 |
Bearing parameters
| Brand | EFANT |
| Model | EFRT150 (YRTC150) |
| Inner Diameter d(mm) | 150 |
|
Tolerance δd(mm) |
0/-0.013 |
| Outer Diameter D(mm) | 240 |
| Tolerance δD(mm) | 0/-0.015 |
|
Bearing Height H(mm) |
40 |
| Tolerance δH(mm) | ±0.35 |
| Bearing height H1(mm) | 26 |
| Tolerance δH1(mm) | ±0.175 |
|
Tight tolerance δH10(mm) |
±0.03 |
|
Height2(mm) |
14 |
| Tight tolerance δH20(mm) | ±0.020 |
| Outer diameter of inner ringD1(mm) | 150 |
| Height of outer ringC(mm) | 12 |
|
Shoulder of inner ring ds(mm) |
212.5 |
| Shoulder of outer ring ds(mm) | 216.5 |
|
Axial loading Coa(KN) |
650 |
| Axial loading Ca(KN) | 128 |
| Radial loading Cor(KN) | 74 |
|
Radial loading Cr(KN) |
6 |
|
Friction torque M(Nm) |
6 |
|
Limit speed nG(rpm) |
640 |
| Runout precision P4 | 3 |
|
Runout precision P2 |
1.5 |
|
Weight m(Kg) |
5.4 |
| Payment Terms: | TT/ Paypal/Western Union |
|---|---|
