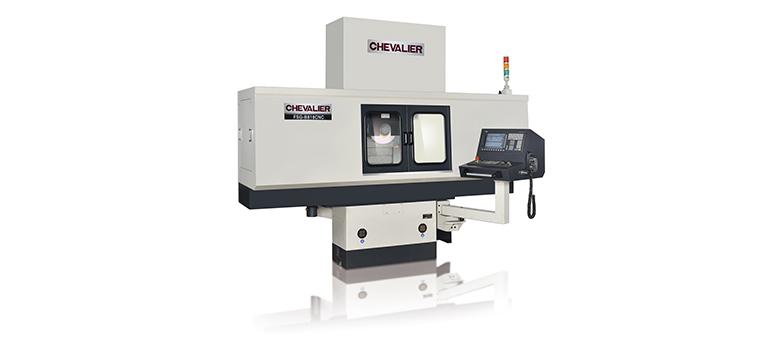

Detailed description: CNC forming grinder FSG-HB818CNC (CNC series)

With deep-cutting and slow-giving forming grinding function, as long as a button, different shapes of workpieces can be intensively ground at the same time

mill. Various grinding cycles such as plane, groove, pitch, side edge, forming, indexing and deep-cutting, etc.

Ring, starting from the grinding wheel quickly approaching the workpiece, rough grinding, grinding wheel dressing and fine grinding with automatic correction function,

In this series, all can be integrated into a single automatic cycle. Wheel head system with built-in diamond dresser can

Continuous grinding wheel dressing; precision ball screw and FANUC AC servo motor provide precision to the workbench

Quasi-positioning, especially during deep-cutting and gentle grinding operations, can increase the grinding speed to the highest. Optional

Equipped with 4th or 5th axis rotating worktable, the worktable can be locked with single or double-head roller dresser, and automatic

Workbench exchange system.
Three-axis CNC
Moving column type
Can be used for deep-cut and slow-feed grinding
FANUC CNC Controller
Table size (width x length): up to 600 x 2,000mm
X axis is driven by ball screw and servo motor
Spindle motor
Wheel hub
Electromagnet
Rotary electromagnet
Precision vice
Double-headed roller dresser (diamond roller not included)
Single-head roller dresser (diamond roller not included)
Quartz work light
Wheel balance platform
Oil temperature cooling regulator
Water tower type water machine
Solenoid controller
Automatic balance corrector
Horizontal index plate (CNC control)
Vertical analysis plate (air pressure drive fixed angle)
Waterproof cover automatic door device
Adjustable angle dresser
Paper belt electromagnetic water filter (with a roll of filter paper)
Paper belt water filter (with a roll of filter paper)
Wheel head diamond roller dresser (diamond roller not included)
Silent air compressor
