American S-T precision vertical projector ST-4600 1
  • American S-T precision vertical projector ST-4600 1

American S-T precision vertical projector ST-4600

Model:-
Brand:-
Origin:Made In United States
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:American S-T , precision vertical , projector ST-4600
Price: -
Min. Order:-
Inquire Now Add to Basket

Member Information

Detail

Wyldar Group

Biz MemberGuang Dong - China
Live Chat:点击这里给我发消息Last Online:16 Jan, 2023

Product Description

* φ350mm matte projection screen can provide super bright and super clear images

* Dual-fiber cold light source surface illumination

* Can install 3 lenses at the same time

* Long-life halogen bulbs provide contour lighting

* Hat brim design reduces the influence of light on projection observation

* Fiber edge finder arm

* Rotating screen and digital display angle reading accurate to 1" or 0.01°

* 3 kinds of readers are optional, with complete geometric calculation function and automatic edge finding function selection, and RS232C interface

* Worktable stroke is 200X100mm or 300X100mm, X and Y axis adopt precision linear guide to improve accuracy, X axis

  It can use the fast moving mode, adopt 1um electronic ruler to read, and the measurement accuracy is high.

specification:

Model number

ST4600

Measuring travel

200×100mm/300×100mm selection Focus stroke: 100mm

Display accuracy

0.001mm

measurement accuracy

(3+L/50)um (L: measuring length)

working desk size

366 × 255 mm / 470 × 255mm

Workbench bearing

5.5 kg / 25 lbs

Projection screen specifications

Φ350mm / 14" frosted glass. 30°, 60°, 90° scale line, rotation angle digital display 1 minute

Lighting system

 12V 100W dual-fiber cold light source surface illumination / 24V 150W adjustable focus bottom light illumination

Objective lens selection

5X, 10X, 20X, 50X, 100X

Reading device

QC100 simple X, Y coordinate reader

QC221-AR Multifunctional Data Processor

QC221E-AR Multifunctional data processing and automatic edge finding device

Dongguan Gaotengda Precision Tools Co., Ltd.
[Exclusive agent CHEVALIER Taiwan Fuyu Precision Surface Grinding Machine CNC Grinding Machine]
FSG-12_16_20 series_new energy industry_lithium battery coating nozzle
FVGCseries_TC_20210518_V4 New Energy Industry
SMART-B818III_New Energy Industry_Ultrasonic Welding Head

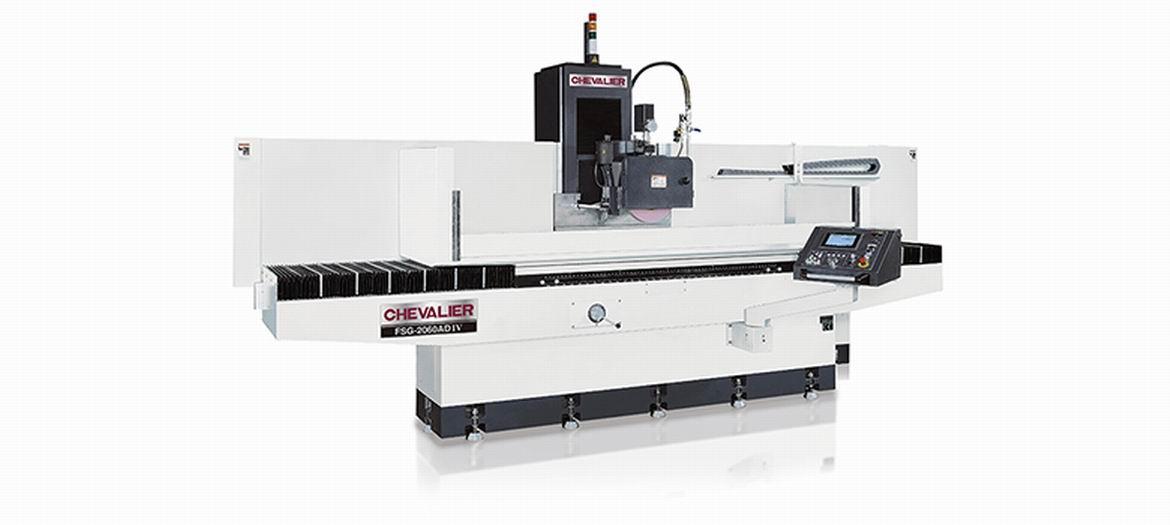

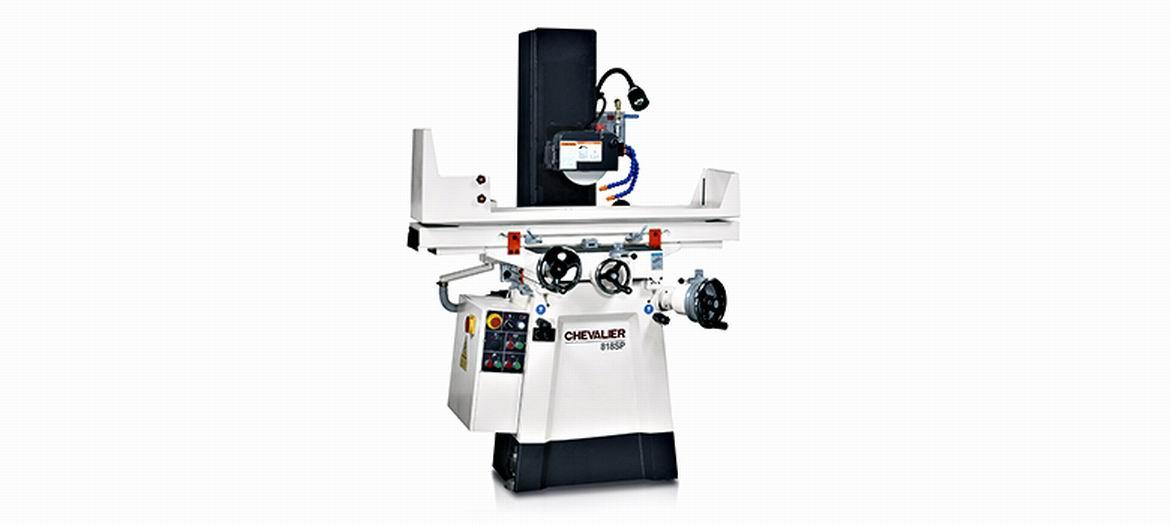

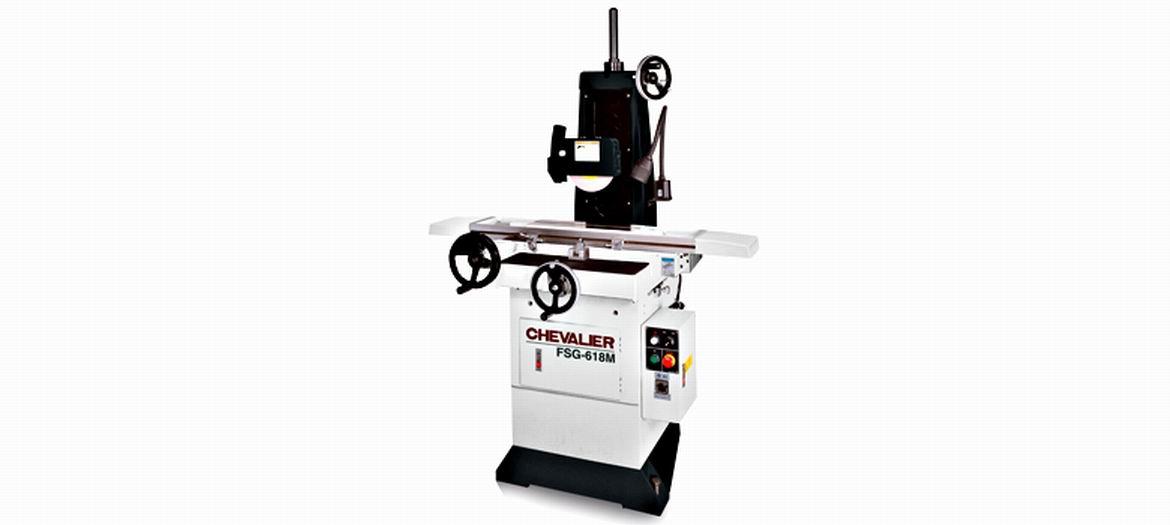

Taiwan Fuyu CHevalIER CNC surface grinder, large water grinder
