| Model: | - |
|---|---|
| Brand: | HJX |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Computer Cable |
| Label: | UL007 electric wire , 18AWG cable , electric cable |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:28 May, 2021 |
Description:
UL1007 Stranded Copper Wire
AWG Number - 22
Color - Red or can be customized
Max Voltage - 300V

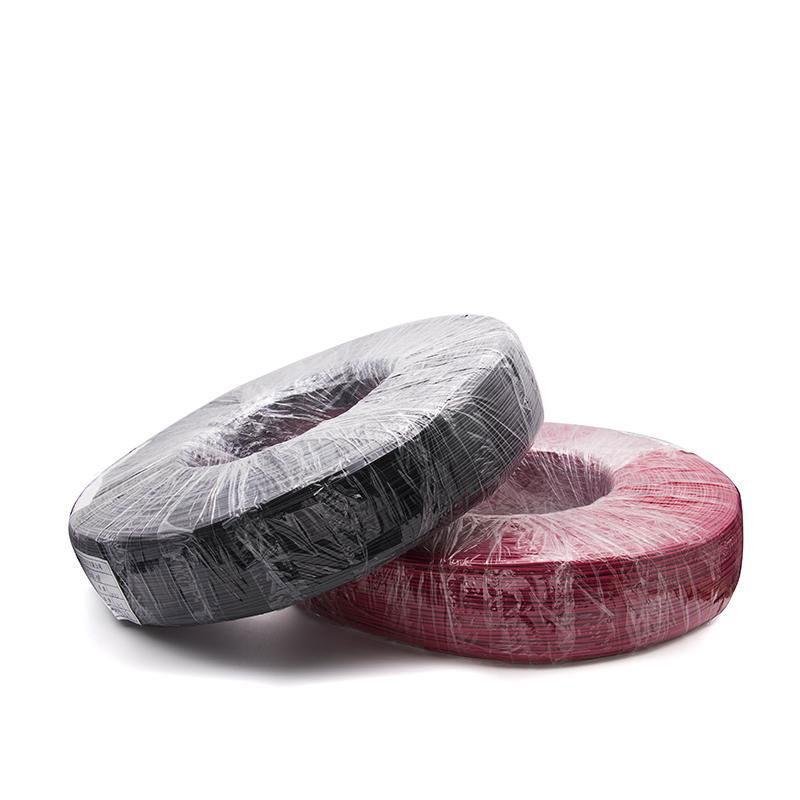

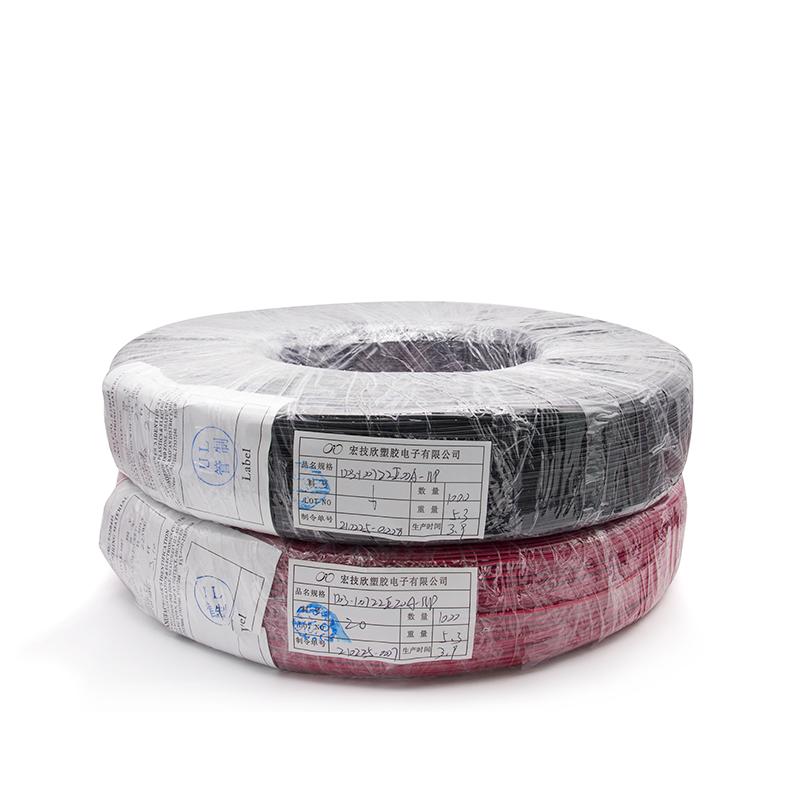

Comes in 1000M per Rool
UL code: E320444
Factory Name: Hongjixin
Weight per roll: 5.5KGS
Technical Data: PVC-insulated jumper wire to UL-Style and CSA-AWM
Temperature Range: Flexible -5 to +80 degrees C, Fixed -30 to +80 deg. C (CSA-AWM IA/B)
Bending Radius: Approx.. 5x cable diameter
Nominal Voltage: 300V and Spark Test (Test Voltage): 4kV
Stranded copper wire is used for the internal wiring of switchboards, electrical equipment (e.g. radio or televisions, other household items, and control desks). It is also used in connecting wires in machines laid in protective tubes and flexible pipes. The wire is also used in motors and transformers. The PVC is self-extinguishing and flame retardant according to test method to UL VW-1/CSA FT1. The materials used are lead free (RoHS compliant) and are heat and damp resistant.
