◆Applications:

Working as connecting and control cable under dry or wet indoor situation,especially for kinds of electronic installation of industrial condition.The cable cross section area 0.5mm² or upper could work as control and connecting cable in machine tool manufacture,whole set equipement installation,power station, belching and air conditionor installation.For its special flexibility,it could also work in installation or fixation.

◆Properties:

For PVC’s high mechanical property,excellent insulation,good chemistry stability,water resistance.Coloured core identification cable has more excellent capability and safety service.

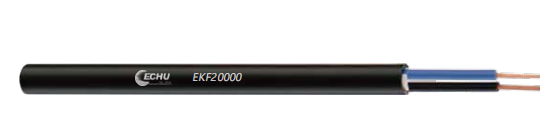

◆Structure:

Conducor:copper acc.GB/T3956 CLASS 5、JB/T8734

Insulation:Speciall PVC

Inner liner:PP or non-woven for buffer

Sheath:optional

Standards:JB8734.4、GB5023.5

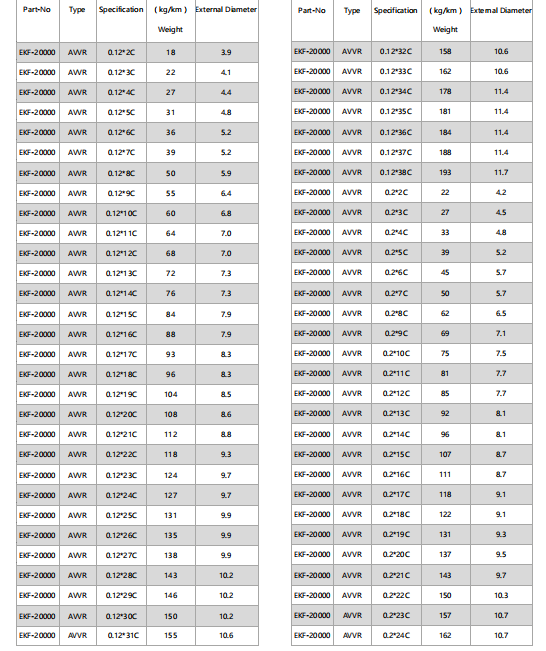

Technical data:

Minimum bending diameter

Fixed Installation:15X outer diameter

Flexing Installation:6X outer diameter

Temprature range

Flexing Installation:-5℃----70℃

Fixed Installation:-15℃----70℃

Test voltage:≤0.5mm² 2000V

>0.5mm² 2500V

Working voltage:≤0.5mm² 300/300V

>0.5mm² 300/500V

Optional: flat cable.
