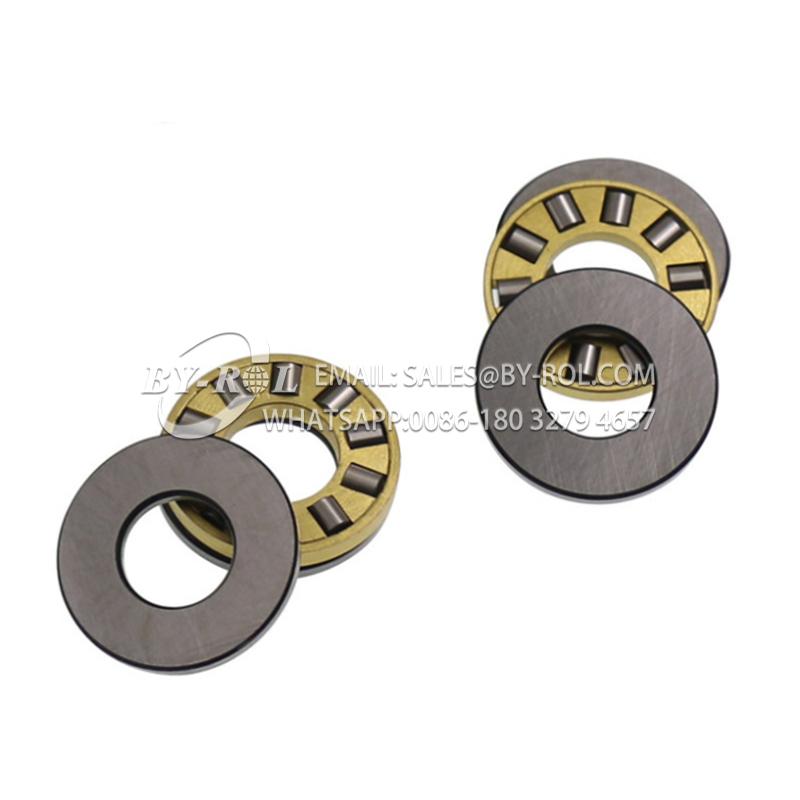

Thrust Roller Bearing Plane Thrust Cylindrical Roller Bearing 81112 81226 Series
Brief introduction
Thrust roller bearings are separable bearings, can only withstand axial load and a slight impact, to limit the shaft (or shell) of the axial displacement in one direction, it can be used as single-axis to the position. But its carrying capacity is far greater than the thrust ball bearings.
The single direction thrust ball bearing consist of a shaft washer, a housing washer and a ball and cage thrust assembly.
The bearings are separable so that mounting is simple as the washers and the ball and cage assembly can be mounted separately.
The types: bearings with a flat seat surface on the housing washer, bearings with a sphered seat surface and bearings with a sphered housing washer can be used together with a sphered seat washer
This type bearing can accommodate axial loads in one direction and thuslocate a shaft axially in one direction. They must not be subjected to any radial load.
Thrust Roller Bearings are used for axles of axial load and radial joint load, but the radial load shall not exceed 55% of axial load. Compared with other thrust roller bearings, such bears are provided with lower friction coefficient, higher speed and self-aligning properties.The rollers of these bearings are of spherical shape, and the spherical raceway surface of the housing washer is self aligned.
Features
Spherical roller thrust bearings are featured by the extremely big axial load carrying capacity and meanwhile they can also carry cetrain radial load.
Typical application
Applications of these bearings can be found in steel industry, mining&construction, papermaking machinery, gearboxes, injection molding machines, motorcycles, crane hooks, pump, centrifuge, jack, speed reducer.
|
item No. |
Dimenssion(mm) |
Basic Load Rating |
Limited Speed(rpm) |
Weight |
||||
|
d |
D |
H |
Cr(N) |
Cor(N) |
Grease |
Oil |
Approx.(KG) |
|
|
Bearing 81102 |
15 |
28 |
9 |
112200 |
12000 |
3200 |
4300 |
0.024 |
|
Bearing 81103 |
17 |
30 |
9 |
11600 |
12900 |
3200 |
4300 |
0.027 |
|
Bearing 81104 |
20 |
35 |
10 |
17600 |
19600 |
2800 |
3800 |
0.037 |
|
Bearing 81105 |
25 |
42 |
11 |
24000 |
29000 |
2200 |
3200 |
0.053 |
|
Bearing 81106 |
30 |
47 |
11 |
24500 |
31000 |
2000 |
3000 |
0.057 |
|
Bearing 81107 |
35 |
52 |
12 |
27000 |
37500 |
1900 |
2800 |
0.073 |
|
Bearing 81108 |
40 |
60 |
13 |
38000 |
52000 |
1700 |
2400 |
0.11 |
|
Bearing 81109 |
45 |
65 |
14 |
40500 |
58500 |
1600 |
2200 |
0.13 |
|
Bearing 81110 |
50 |
70 |
14 |
42500 |
64000 |
1600 |
2200 |
0.14 |
|
Bearing 81111 |
55 |
78 |
16 |
69500 |
127000 |
1400 |
1900 |
0.22 |
|
Bearing 81112 |
60 |
85 |
17 |
80000 |
134000 |
1300 |
1800 |
0.27 |
|
Bearing 81113 |
65 |
90 |
18 |
83000 |
143000 |
1200 |
1700 |
0.31 |
|
Bearing 81114 |
70 |
95 |
18 |
86500 |
153000 |
1200 |
1700 |
0.33 |
|
Bearing 81115 |
75 |
100 |
19 |
75000 |
129000 |
1100 |
1600 |
0.38 |
|
Bearing 81116 |
80 |
105 |
19 |
76500 |
134000 |
1000 |
1500 |
0.4
|
BY-ROL Bearings will be always here to assit you.There are many other bearings that are not listed above, please do contact us for more models.
