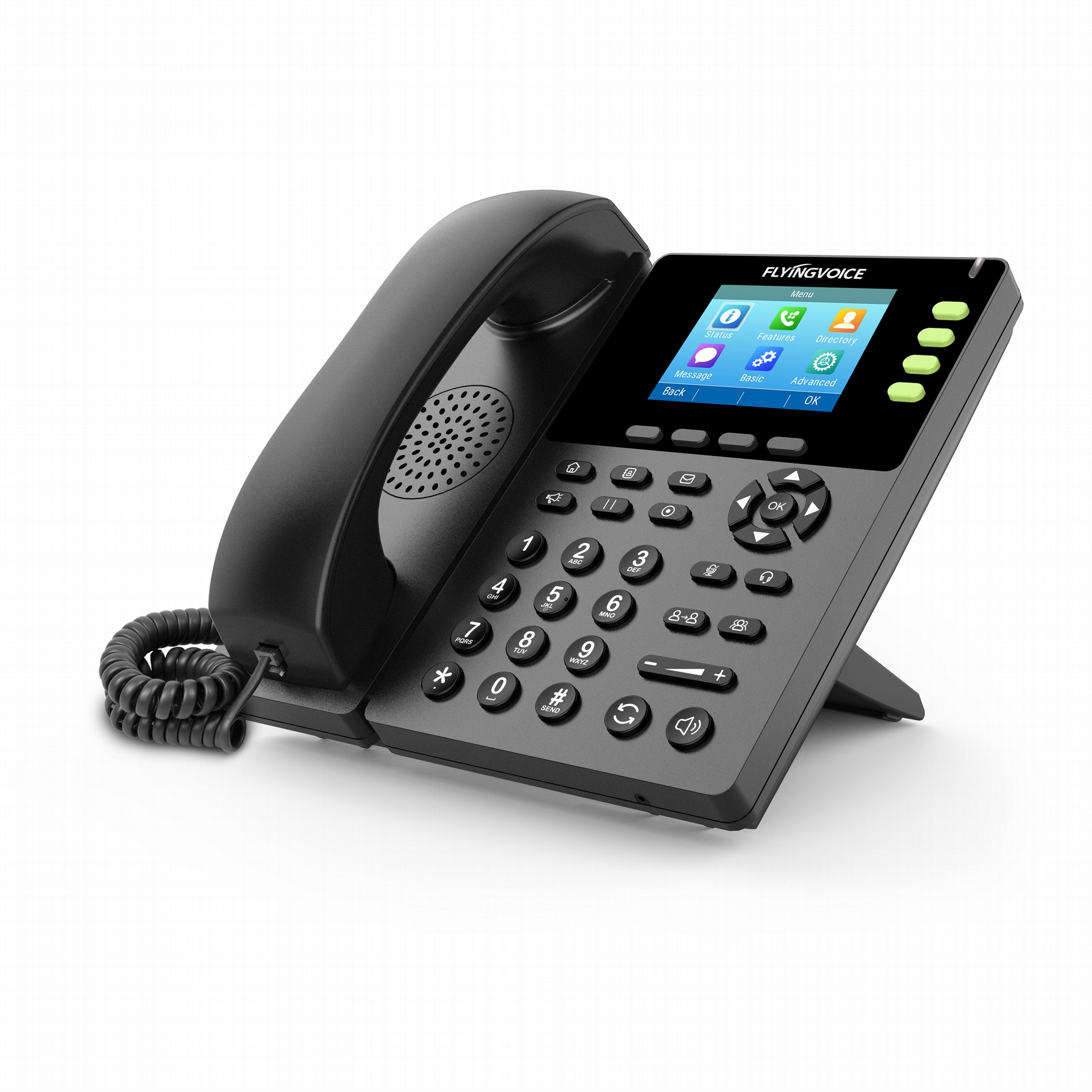

FIP13G

4-Line GigaE IP Phone

FIP13G is a 4-Line business IP phone specially for office staff

who are looking for easy-to-use device. The 2.8” colour LCD

display provides detailed call information accompanied by icons

to maximize usability. Functions and contacts can be accessed

quickly via 9 DSS/BLF keys. FIP13G provides users the newly

designed LCD screen, as well as dual-port Gigabit Ethernet, PoE

and 2.4GHz Wi-Fi.



Key Features and Benefits

Simple and Easy to Use UI Design

FIP13G comes with a simple design yet ergonomic design that is easy to

use. Prompts guide you through a simple installation process making it

easy to start a voice collaboration.

Rich Features, Meet Your Needs

FIP13G supports dual 10/100/1000 Mbps ports and built-in 2.4GHz Wi-Fi,

connect people with the way you like. The built-in USB port allows you to

record calls onto a USB flash drive. Besides, FIP13G supports EHS Headset.

HD Voice Quality

FIP13G provides excellent voice quality. We have created high-definition

sound quality solutions for handset and hands-free scenarios, even in a

noisy environment.

High Security and Compatibility

All conversations are well protected. We make sure of security algorithms

such as configuration files utilising AES, SRTP and TLS call encryption.

The FIP1X series IP phones are widely compatible with SIP-based PBX

platforms such as Asterisk, Broadsoft and 3CX.



Audio Features

> HD voice: HD handset, HD speaker

> Wideband Codec: G.722, Opus, AMR-WB(Optional),

G.711WB(Optional)

> Narrowband Codec: G.711(A/u), iLBC, G.729AB, G.723,

G.726, AMR-NB(Optional)

> DTMF: In-band, RFC 2833 and SIP info

> Full-duplex hands-free speakerphone

> VAD, CNG, AEC, PLC, AJB, AGC

Display and Indicator

> 2.8" 320 x 240px color screen with backlight

> 16 bit depth color

> LED for call and message waiting indication

> Dual-color (red/green) illuminated LEDs for line

status information

> Intuitive user interface with icons and soft keys

> Multilingual user interface

> Caller ID with name and number

> Power saving

Management

> Configuration: browser/phone/auto-provision

> TFTP/HTTP/HTTPS for Auto Provisioning

> TR069（TR104/TR106）

> Reset to factory, reboot

> Package tracing export, system log

> DNS/DNS SRV (RFC 1706, RFC 2782)

> NAPTR for SIP URI lookup (RFC 2915)

> Cloud device management: FCMS

> DHCP server and DHCP client

Phone Features

> 4 SIP accounts

> Call hold, mute, DND, redial, auto answer

> One-touch speed dial, hotline, SIP message

> Call forward, call waiting, call transfer (attended/blind)

> Paging, intercom, 3-Way conferencing, Dial rule

> Direct IP call without SIP proxy

> Set date time manually or automatically

> IP conflict detection

> 2.4 GHz Wi-Fi

> Up to 9 DSS/BLF keys

> USB port (2.0 compliant) for USB call recording

Directory

> Phone book (2000 records)

> Black list

> XML/LDAP remote phonebook

> Phonebook search/import/export

> Call history: dialed/received/missed (60 records)

IP-PBX Features

> BLF

> Anonymous call, anonymous call rejection

> Voice mail, call park, call pickup

> Message waiting indicator (MWI)

Feature Keys

> 4 Line keys

> 7 features keys: message, headset, hold, mute,

transfer, redial, hands-free speakerphone

> 4 Soft Keys

> 5 Navigate Keys

> Volume+/-

Interface

> 2x RJ45 Ports (Ethernet 10/100/1000 Base-T)

> Support PoE

> 1 x RJ9 Handset port

> 1 x RJ9 Headset port

> 1 x USB 2.0 port

> 1 x Power adapter

Others

> Color: Classic grey

> Stand with 3 adjustable angles

> Wall mountable

> AC/DC Adapter

AC Input: 100~240V, 50~60Hz

DC Output: 5V, 1A

> Power consumption(PSU): 1.5-3.5W

> Power consumption(PoE): 1.9-4.5W

> Dimension（W x H x D x T）:

190mm x 188.5mm x 173mm x 41.5mm

> Relative humidity: 10%~90% (No Condensing)

> Storage temperature: -25~ 65°C

> Operation temperature: 0~45°C

Network and Security

> SIP v1 (RFC2543), v2 (RFC3261)

> Call server redundancy supported

> NAT Traversal By STUN

> Proxy mode and peer-to-peer SIP link mode

> IP assignment: Static IP and DHCP

> HTTP/HTTPS web server

> Time and date synchronization using SNTP

> SDP (RFC 2327) ，UDP/TCP

> Mutil-VLAN, DSCP and 802.1p QoS

> SRTP

> TLS

> HTTPS certificate manager

> AES encryption for configuration file

> Digest authentication

> VPN：PPTP, L2TP, OpenVPN

> IPv4 /IPv6 ,Dual stack IPv4/IPv6

> RTP/RTCP (RFC 1889, RFC 1890)

> ARP/RARP (RFC 826/903)

> IEEE802.1Q VLAN/802.1p/DSCP

> SNMPv2

> LLDP/CDP/DHCP VLAN

Package Contents

Compatible with

Certificated by

> Flyingvoice FIP13G IP Phone

- Handset with handset cord

- Ethernet cable

- Stand

- Quick start guide

> Qty/CTN: 10 PCS

> N.W/CTN: 9.62 kg

> G.W/CTN: 10.12 kg

> Giftbox size: 270mm x 190mm x 78mm

> Carton meas: 420mm x 420mm x 290mm
