Programmable salt spray test chamber

Model:HD-90
Brand:-
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Other Electronic Instrument
Label: -
Price: US $3500 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Hyde Science and Technology Limited

Free MemberShaan Xi - China
Live Chat:Last Online:31 Aug, 2021

Product Description

Programmable salt spray test chamber

Salt spray chamber is designed to carry out corrosion tests in a salt fog environment during its continuous or periodic spraying.



Model

HD-60

HD-90

HD-120

HD-160

HD-200

Internal dimensions (D*W*H)

450*600*400 mm

600*900*500 mm

800*1200*500 mm

1000*1600*500 mm

1200*2000*600 mm

External dimensions (D*W*H)

672*1150*

1090 mm

842*1450*

1200 mm

1240*2080*

1285 mm

1450*2480*

1520 mm

1650*2900*

1550 mm

Lab Temperature

Saline testing method (NSS ACSS) 35℃±1℃/ Erosion-resistant testing method (CASS) 50℃±1℃

Pressure pot temperature

Saline testing method (NSS ACSS) 47℃±1℃/ Erosion-resistant testing method(CASS )63℃±1℃

Saline Temperature

35℃±1℃ 50℃±1℃

Lab capacity

108 L

270 L

480 L

800 L

1440 L

Saline box capacity

15 L

25 L

40 L

40 L

40 L

Saline concentration

Sodium chloride solution with 5% concentration or less than 0.26g copper chloride is added to each liter of sodium chloride solution with 5% concentration

Compressed air pressure

1.00±0.01kgf/cm2

Spray volume

1.0~2.0ml/80cm2/h (at least collecting 16 hours and take the average value)

Relative humidity in the lab

Above 85%

Value PH

6.5~7.2, 3.0~3.2

Spray method

Programmable spray (including Continual spray and discontinuous spray)

Power

AC220V1Φ

10A

AC220V1Φ

15A

AC220V1Φ

20A

AC220V1Φ20A

AC220V1Φ30A


Product Image

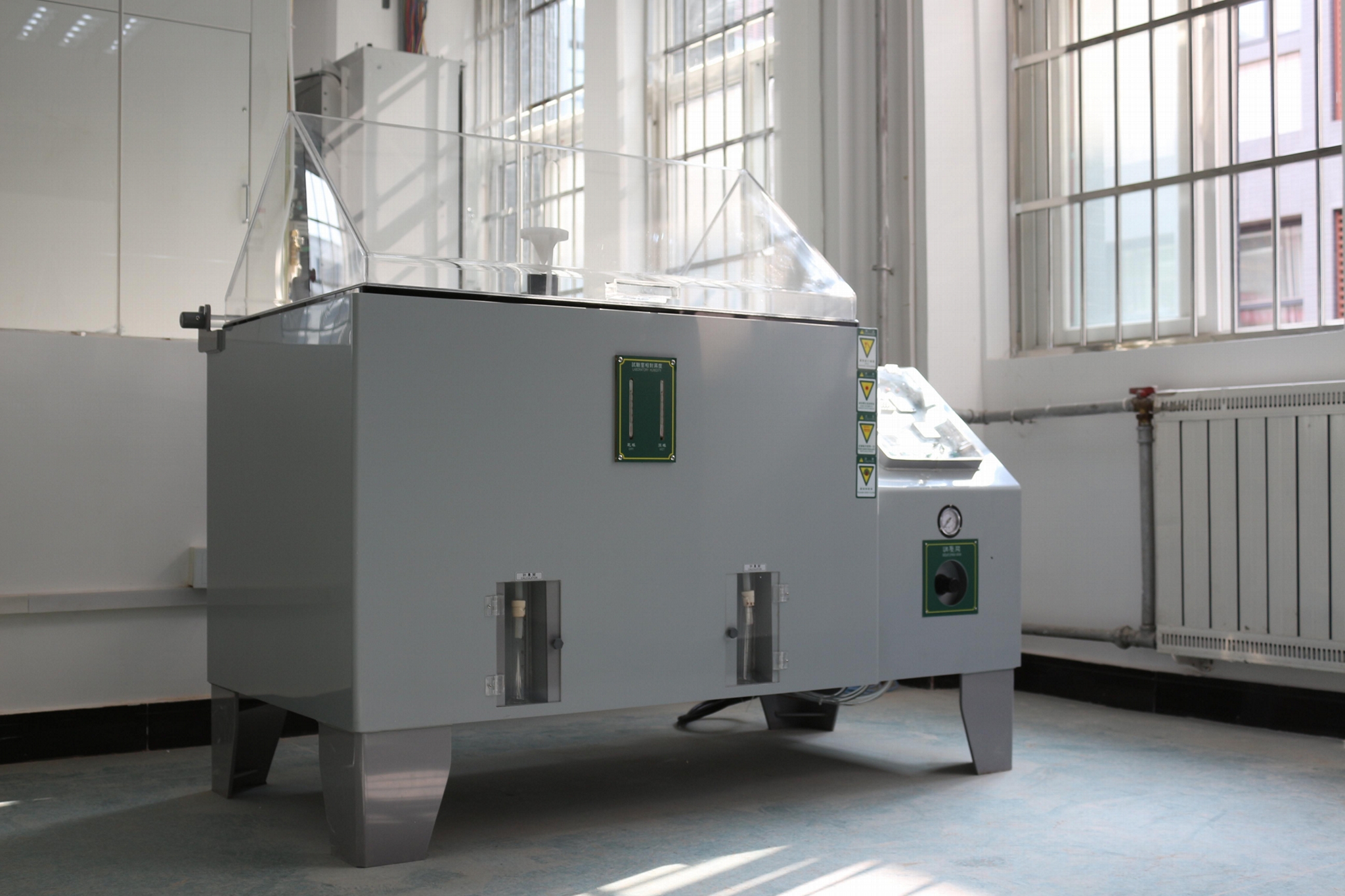

Programmable salt spray test chamber  1
Img 1

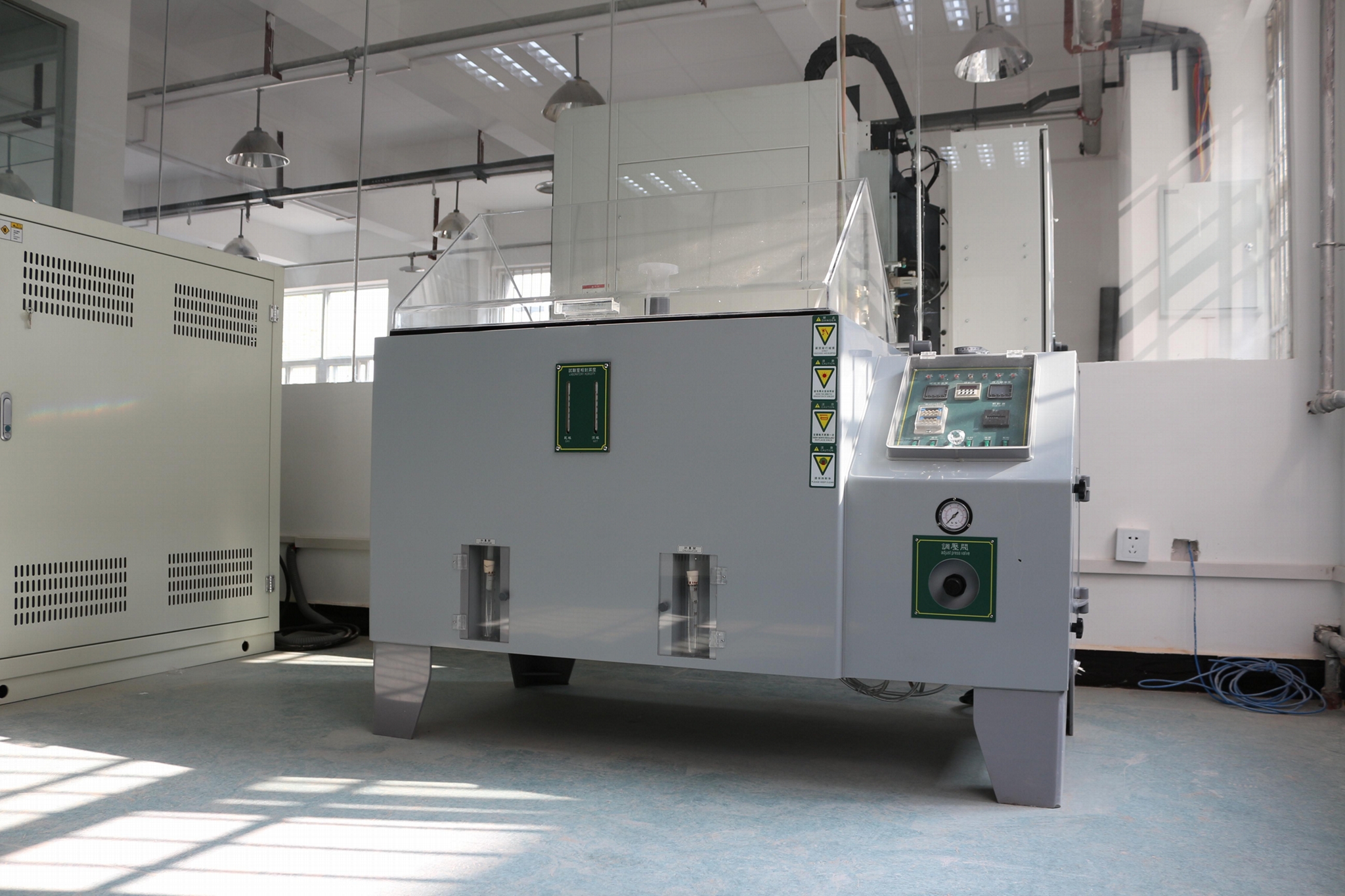

Programmable salt spray test chamber  2
Img 2
Programmable salt spray test chamber  3
Img 3
Programmable salt spray test chamber  4
Img 4
Programmable salt spray test chamber  5
Img 5
