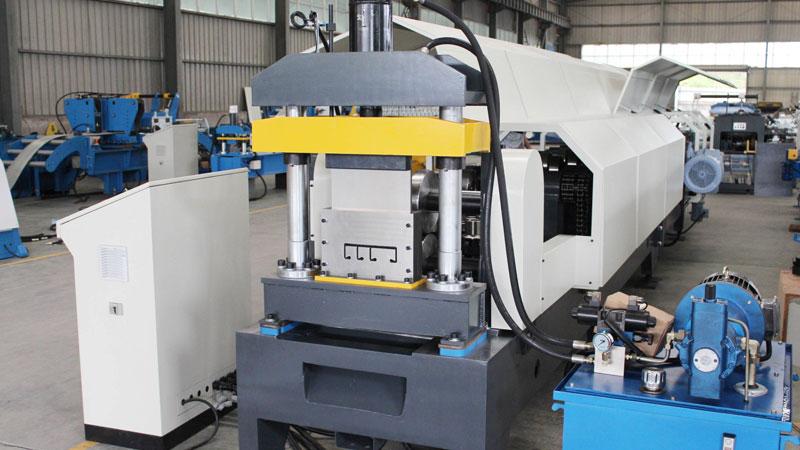

Semi-Automatic cz purlin machine for Sale uses the same set of equipment to produce various specifications of C/Z purlin through semi-automatic simple stepless adjustment, without changing the forming rollers when changing specifications. If want to change C to Z(Z to C), need to change the rollers position manually. The production process adopts automatic control mode, which can automatically punch, cut and form according to the parameters of the purlin length, vertical hole distance and number entered.

Features and Advantages of Semi-Auto cz purlin roll forming machine  for Sale

Automatic multi-size adjusting can be finished quickly on PLC screen.

C & Z profile changeover job can be finished very easily and quickly under the help of the C/Z changeable device.

Just need to switch the specific stations tooling to a different position, thus it can produce both C and Z purline.

Forming speed: 30m/min; Production speed 15m/min

It saves much cost than a full automatic C/Z exchangeable line but can realize all functions.

Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

Most of the hot & popular profiles models, we have ready roll forming machine in stock for prompt delivery.

Semi-Auto C/Z Purlin Roll Forming Machine Working Flow

Decoiler-leveler integrated unit

Servo Feeding

Hole punching unit

 Guiding device

Pre-cutting to length

Roll Forming System

Output Manual Supporter/Auto Stacker(optional)

Production line Components and Parameters：
