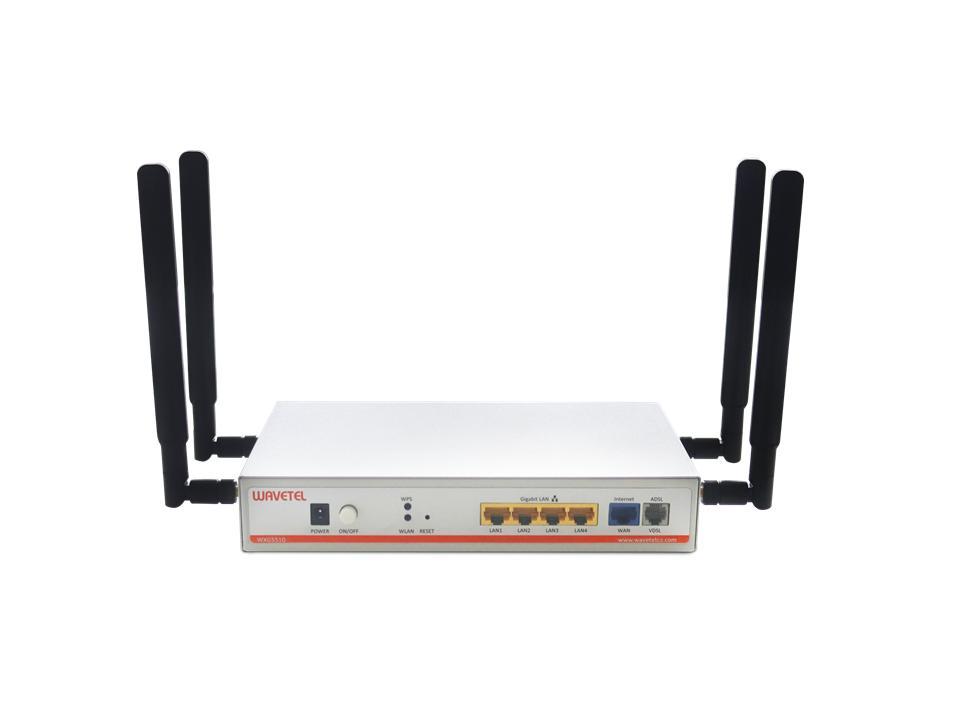

Wavetel LTE xDSL Dual WiFi VoIP Router WXG5510 has 5 Ethernet ports and 1 RJ11 for xDSL. It supports Dual-Band WiFi and fail over between WANs of LTE, xDSL(ADSL/VDL) and Ethernet. Optionally, it provides 1 more RJ11 port for VoIP.

Highlights

·Support WAN of xDSL, LTE and Ethernet

·Dual Band WiFi: 2.4GHz + 5GHz

·Fail over between WANs of xDSL, LTE and Ethernet

·VPN: L2TP, IPSec, GRE

·Support Static Route, OSPF, BGP, RIP and VRRP

·Support VoIP (Optional)

​

· Interface:

1 x RJ11 for ADSL2+/VDSL

1 x 10/100/1000Mbps WAN Port

4 x 10/100/1000Mbps LAN Ports

Dual Band WiFi: 2.4GHz + 5GHz

1 x Sim Slot

2 x LTE Antenna

2 x WiFi Antenna

1 x Rj11 for VoP(Optional)

1 x Power Supply

​

· Buttons

Power ON/OFF Button, WPS Button, WiFi Button, Reset Button

Data Functions

·ADSL2+/VDSL2

  VDSL2 Profile: 8a/b/c/d, 12a/b, 17a, 30a and 35b

  ADSL2+ Annex A,B

  Up to 8 VCs

​

·LTE

  Cat 4, Max 150Mbps(DL)/50MBps(UL)

  Frequency Band:

  LTE: 1/3/7/820/38/40/41

  WCDMA: 1/8

  (Please contact us for more frequency band combinations)

​

·Link Management

  Configurable Main Link and Back Link

  Link Detection

  WAN Fail Over

​

·WiFi

  IEEE 802.11b/g/n, 2.4GHz and 5Ghz (optional)

  Max Rate:300Mbps@WiFi N, 866Mbps@WiFi AC (optional)

  Antenna:2 x 5dBi dual band fixed antennas

· WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

​

·DHCP Server/Relay, DNS, DDNS

·Static Route, OSPF, RIP, BGP, VRRP

·VPN: L2TP, IPSec, GRE

·802.1Q/VLAN, IP Passthrough

·Quality of Service (QoS)

·Firewall, DMZ, Port Forwarding

Voice Features (Optional)

· SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711

· Call forwarding, Call waiting, Call block, 3-way conference call, etc.

Environmental

·Size: 210mm x 150mm x 30mm

·Net Weight: 400g

·Power Supply: DC12V/1.5A

·Operation Range: 0℃ to 55℃

·Humidity: 10%-90% non-condensing
