| Model: | SL-5868ILEQ |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | Sound Level Meter , Impulse , Integrating |
| Price: |
US $336
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:18 Oct, 2023 |

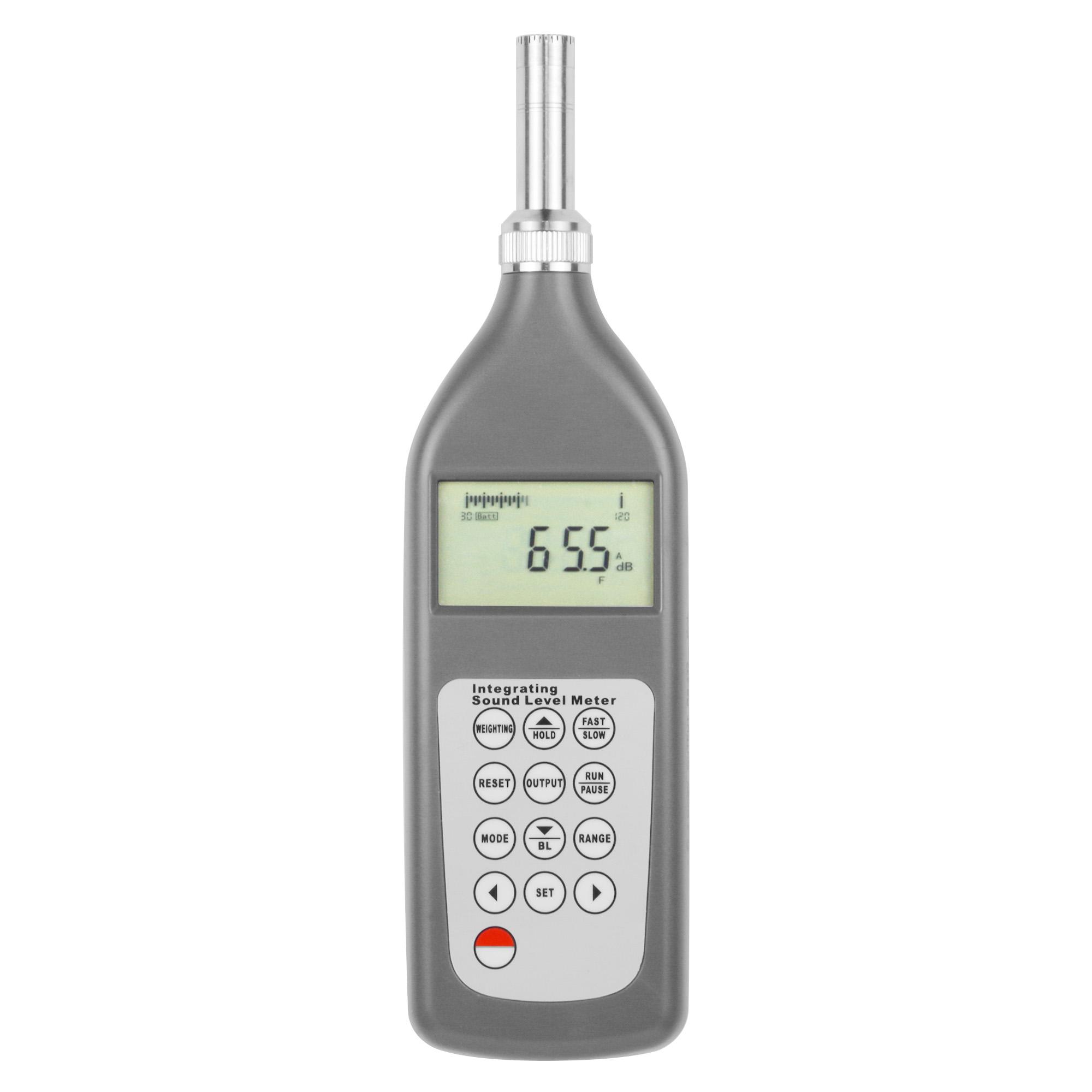

SL-5868ILEQ Digital Portable Impulse Integrating Sound Level Meter
The Impulse Integrating Sound Level Meter is a universal sound level meter, an integrated sound level meter. It can also measure Accumulated percentile sound level.
Features
* Its performance is in accordance with GB/T 3785-2010 standard level 2 And IEC 61672:2013 Class 2 sound level meter requirements. It also meets the JJG 188-2017 standard.
* With the function of integration and statistics, 800 groups of single measurement and 6 days of regular measurement can be achieved. The stored data can be read and printed. The collected data can be checked when the regular measurement ispaused.
* The three time weighting F, S, and I can be selected.
* The digital detection technology is used to replacesome traditional sound level meters, the stability andreliability are greatly improved.
* Large screen display is adopted, with clear and intuitive display. With dynamic scale display.
* Optional Bluetooth printer for data printing.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Specifications
|
Microphone |
Φ12.7mm (1/2') test condenser microphone |
|
|
Frequency weighting |
A, C, and Lin(Linear) |
|
|
Range |
25dB~130dB (A) |
|
|
Range control |
Manual, three gears, linear range > 60dB |
|
|
Testing Range |
30dB~90dB (dynamic scale display 10~100) |
|
|
50dB~110dB (dynamic scale display 30~120) |
||
|
70dB~130dB (dynamic scale display 50~140) |
||
|
Accuracy |
In accordance with IEC61672 standard, class 2 |
|
|
Time Weighting |
Fast (F), Slow (S), Impulse (I) |
|
|
Display |
Large screen dynamic LCD, instantaneous sound level, with analogammeter display. |
|
|
The output interface |
AC signal output |
|
|
USB data cable output |
||
|
Calibration |
Use class 1 sound level calibrator |
|
|
Power Supply |
4x1.5V AAA Size (UM-4) Battery |
|
|
External Power |
6V |
|
|
Weight |
185g (Not Including Batteries) |
|
|
Dimensions |
227x63x26 mm |
|
|
Operating Condition |
Temperature: -10~50°C |
|
|
Standard Accessories |
Main Unit |
|
|
Windscreen |
||
|
Carrying Case (B04) |
||
|
Manual |
||
|
Optional Accessories |
CD |
|
|
Data Cable |
||
|
Bluetooth Data Adapter |
||
|
Bluetooth printer |
||
|
Printer power adapter |
||
|
External power supply (6V) |
||
