| Model: | AT-137PC |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | Tachometer , speedmeter , 50-600mm |
| Price: |
US $103
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:22 Mar, 2024 |

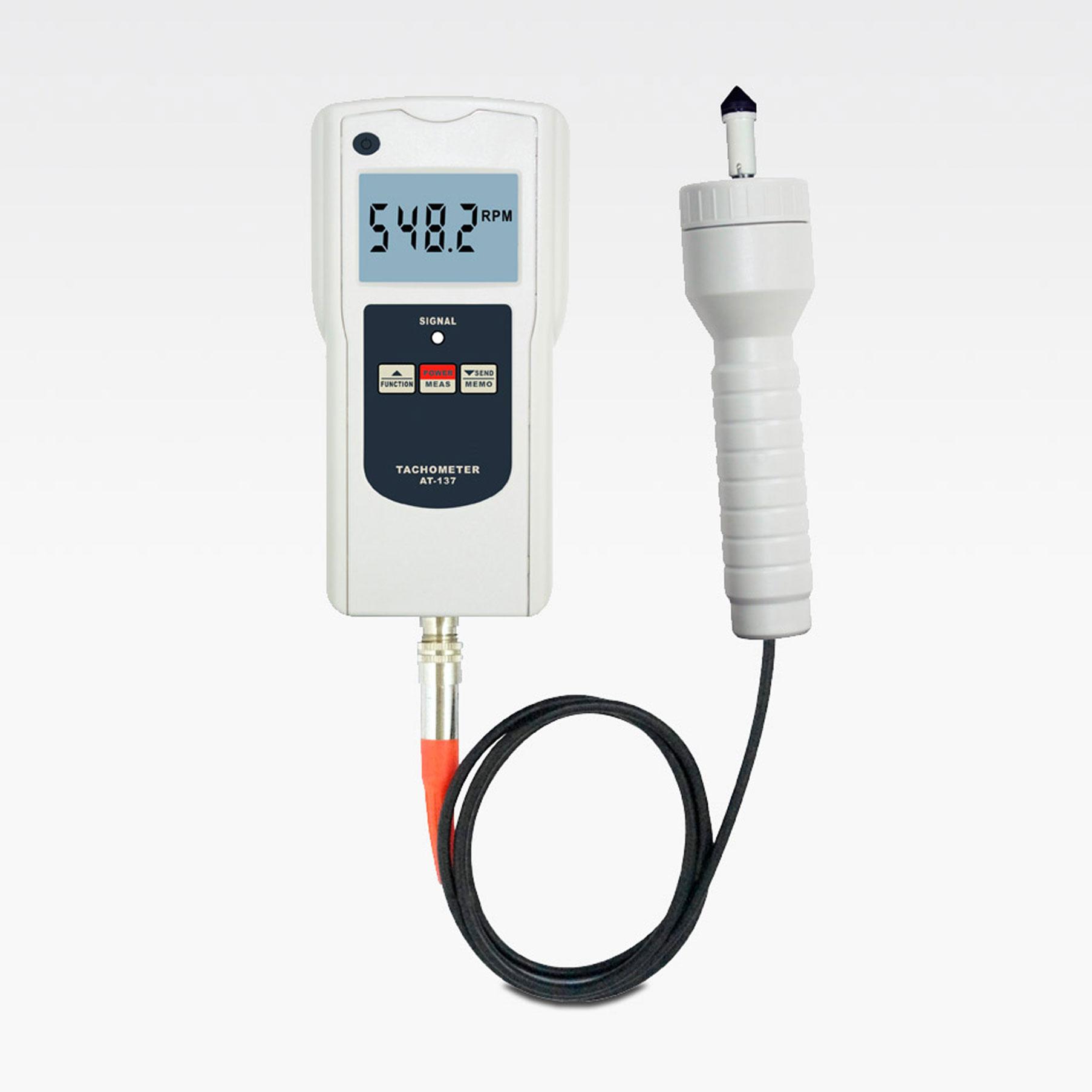

AT-137PC Digital Intelligent Tachometer Surface speed Multifunction speedmeter
Product Description
The Multifunction Tachometer Used to test the rotative velocity ,surface speed or frequency of motor.Widely applicable to motor, fan, paper-product ,plastics,chemical fiber,washing-machine,automobile,airplane,steamer department etc.
Product Feature
*digital display with no guessing errors.
*Wide measuring range and high resolution.
* The lastvalue / max.value / min.value will be automatically stored in memory.
*Multifunctional, one instrument combines PHOTO TACH. (RPM) & CONTACT TACH. (RPM , m/min., ft/min).
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegantshapeand ease of use.
Product Parameters
|
Measuring range |
Laser:2.5-99999r/min |
|
Contact:0.5-1999r/min |
|
|
Surface: 0.05-1999.9 m/min;0.2-6560ft/min |
|
|
Laser tach detecting distance |
50-600mm |
|
Accuracy |
±（0.05%n+1d） |
|
Resolution |
0.01/0.1/1 |
|
Sampling time |
1 s |
|
Memory |
max/min/last value |
|
Battery indicator |
low battery indicator |
|
Power Supply |
4x1.5v Um-4Battery |
|
Size |
140x70x30mm |
|
Weight |
130g(Not including batteries) |
|
Standard Accessories |
Main Unit |
|
Conical adapter |
|
|
Round adapter |
|
|
line speedwheel |
|
|
Carrying Case |
|
|
Operation Manual |
