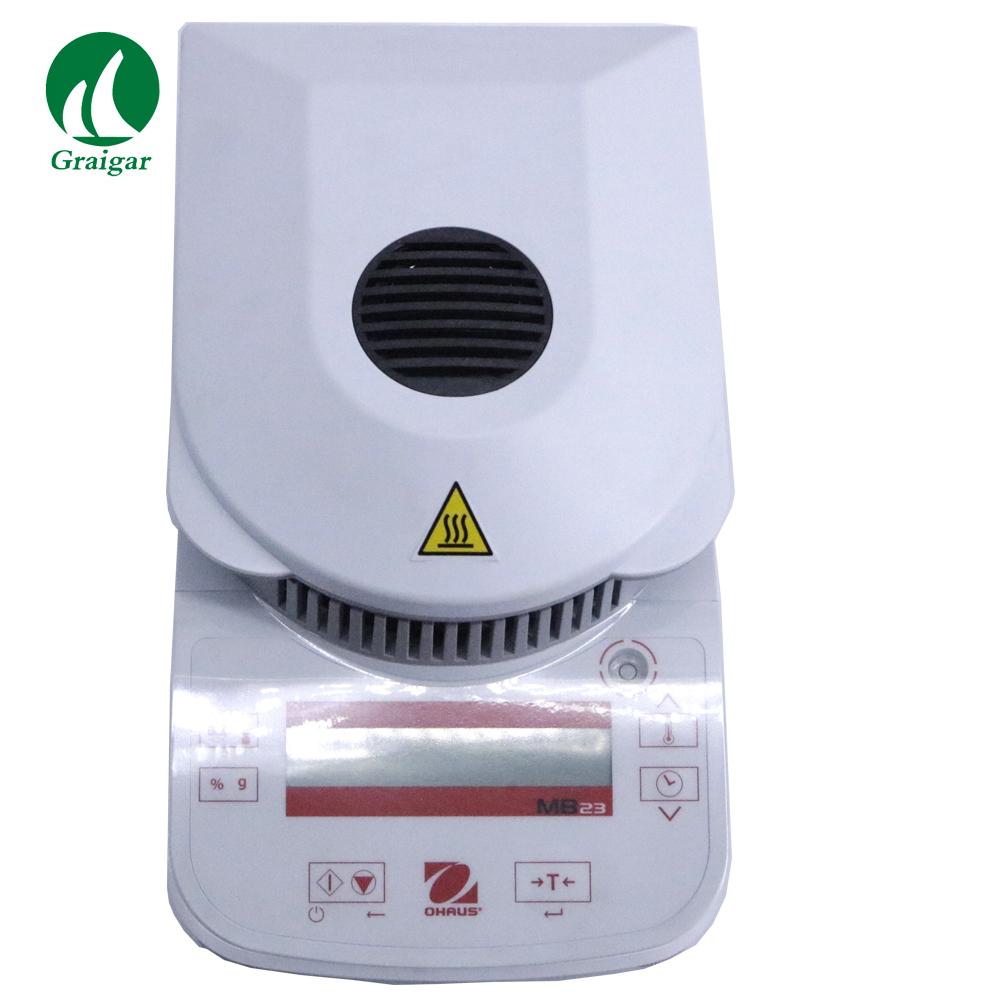

MB23 Professional Moisture Meter Infrared Moisture Analyzer

Model:MB23
Brand:Ohaus
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:MB23 , Moisture Meter , Moisture Analyzer
Price: US $692 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:23 Nov, 2022

Product Description

Moisture Analysis Detail:



1.Easy to setup and operate-The MB45/35 utilize a dot matrix graphic display for quick setup and use. The MB23/25 employ a bright backlit LCD display.

2.Halogen or IR heating elements-MB45/35/25 have a fast and even heating halogen lamp, while the MB23 uses a glass free IR heating system.

3.Simple or Advanced-The MB45 features powerful software with an integrated date-base to store 50 drying procedures along with the ability to track statistical date. All products feature multiple shutoff criteria to save time and cost.



Item#

MB45

MB35

MB25

MB23

Capacity (metric):

45 g

35 g

110 g

110 g

Readability (metric):

0.001 g

0.002 g

0.005 g

0.01 g

Repeatibility (Std. Dev.):

0.05% (3g sample) - 0.015% (10g sample)

0.18% (3g sample) - 0.05% (10g sample)

0.1% / 0.01g

0.3% (3g sample) 0.2% (10g sample)

Moisture Range:

0.01% to 100% (0.01% to 1000% for regain mode)

0.05% to 100%

3g to 20g typical, 0.5g min.

3g to 20g typical, 0.5g min.

Interface:

Bi-directional RS-232

Bi-directional RS-232

Bidirectional RS-232

Bidirectional RS-232

Timer:

1 - 120 minutes

1 - 120 minutes

1-99 minutes, 30 second increments to 60 minutes

1 - 99 minutes, 30-second increments to 60minutes

Heat source:

Halogen

Halogen

Halogen

Infrared (no glass)

Temperature settings:

50° to 200° in 1°C increments

50° to 160° in 5°C increments

50°C to 160°C in 5° increments

50°C to 160°C in 5° increments

Power Requirements:

120, 240 VAC 50/60 Hz

120, 240 VAC 50/60 Hz

100 to 240 VAC, 50/60 Hz

100 to 240 VAC, 50/60 Hz

Tare range:

To capacity by subtraction

To capacity by subtraction

To capacity by subtraction

To capacity by subtraction

Operating Temperature Range:

50° to 104° F / 10° to 40° C

50° to 104° F / 10° to 40° C

41° to 104°F / 5° to 40°C

41° to 104°0F / 5° to 40°C

Display:

128 x 64 Pixel Graphical Backlit LCD Display

128 x 64 Pixel Graphical Backlit LCD Display

Custom backlit LCD

Custom backlit LCD

Information displayed:

% moisture, % solids, time, temperature, weight, test ID, drying curve

% moisture, time, temperature, weight

% moisture or % solids or weight (g), temperature, time

% moisture or % solids or weight (g), temperature, time

Pan size (Dia.) (in/cm):

3.54 / 90

3.54 / 90

3.5 inch / 90 mm

3.5 inch / 90 mm

Dimensions WxHxD (in/cm):

7.5 x 6 x 14.2
19 x 15.2 x 36

7.5 x 6 x 14.2
19 x 15.2 x 36

6.5 x 5 x 11 inches / 17 x 13 x 28 cm

6.5 x 5 x 11 inches / 17 x 13 x 28 cm

Net Wt. (lb/kg):

10.1 / 4.6

10.1 / 4.6

5 lb / 2.3 kg

5 lb / 2.3 kg

Shipping Wt. (lb/kg):

14.1 / 6.4

14.1 / 6.4

8.5 lb / 3.9 kg

8.5 lb / 3.9 kg
