The world's highest precision LED exposure machines

Model:TMEP-LED18230T
Brand:Tamprinter
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:LED slide Exposure , LEDExposure Machine , LED Exposure
Price: US $22222 / SET
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

TAMPRINTER PRINTING MACHINERY GROUP LIMITED

Biz MemberGuang Dong - China
Live Chat:
Last Online:10 May, 2021

Product Description

 TMEP-LED18230T Highest precision LED parallel light exposure machine

Low energy consumption  (0.1 kWh/p),
 long lifespan  (2 years),
fast exposure speed  (5 seconds),
high accuracy  (exposure to patterns above 130 lines),
Mechanical size (length * width * height)  2300*1950*1100mm
Glass area  1800*2300mm
Maximum Frame outside size  1500*2000mm
Air consumption  13L/pcs 0.6Mpa
Cooling system water cooling
Equipment|Light  Source Korea LED
Lamp source power  1000W
Vacuum pump  Taiwan oil-free vacuum pump
Blanket rubber  1.2mm
Glass thickness 12mm
Drive servo motor  Mitsubishi
Control touch film screen  PLC Mitsubishi
Rated voltage:  220v/ 50Hz
Power consumption:  0-1000W
Radiation intensity 20M distance:  800-1000MW/c m° (data for reference only)
UV MJ/CM 10 meters/minute:  180-200mj/c m° (data for reference only)
Peak wavelength:  395, 365 mixed wavelength
LED chip brand/origin/power:  Seoul, South Korea
Light-emitting surface size:  1 000*12MM
Installation method and others:  20-50MM irradiation distance

it is currently the highest precision plate-making product on the market.

LED Fine Exposure Machine
Scope of application:
Electronic, solar, light guide plate high-precision screen printing and exposure.
TAMPRINTER has launched the latest semi-automatic LED exposure machine and exposure machine. It has a number of invention patents. It adopts the world's leading optical technology and rigorous production technology. Equipped with an advanced LED progressive light source system to ensure the production efficiency and quality of PCB boards, it is an ideal choice for customers pursuing high-quality!, The product's light source life has been greatly improved, energy consumption is greatly reduced, environmental protection is pollution-free, and low compliance Carbon concept, the whole structure is simple and easy to use, and the illuminance is more uniform.

product description
Specifications can be customized
Performance characteristics:

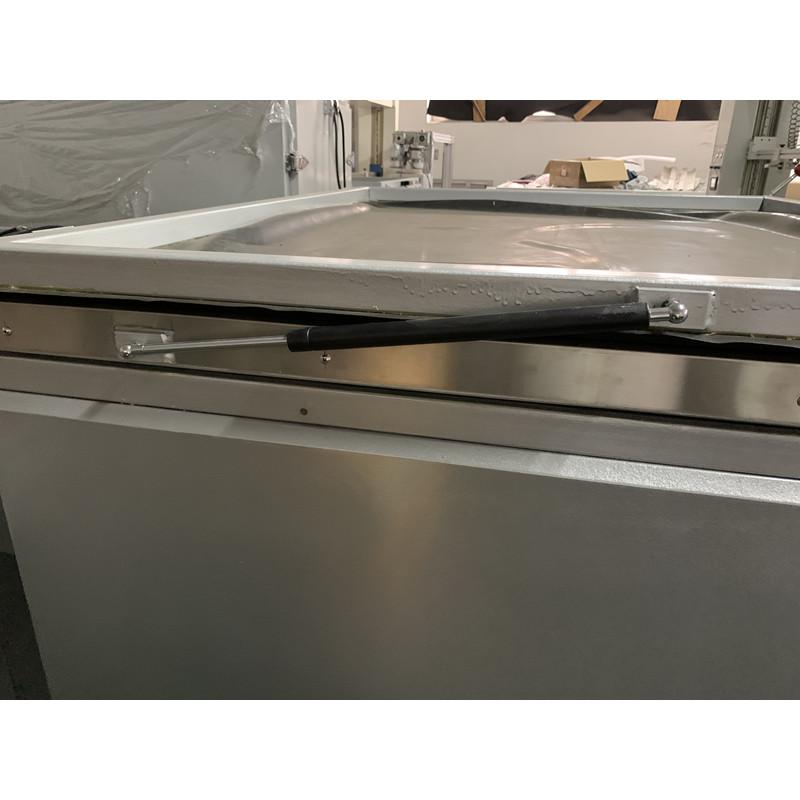

The screen plate is vacuum-adsorbed, and the imported rubber cloth is highly elastic, so that the screen plate and the film closely fit, and the film pattern is reproduced truly and accurately.
Imported LED lamp matrix, uniform light emission, cold light source exposure to prevent film deformation.

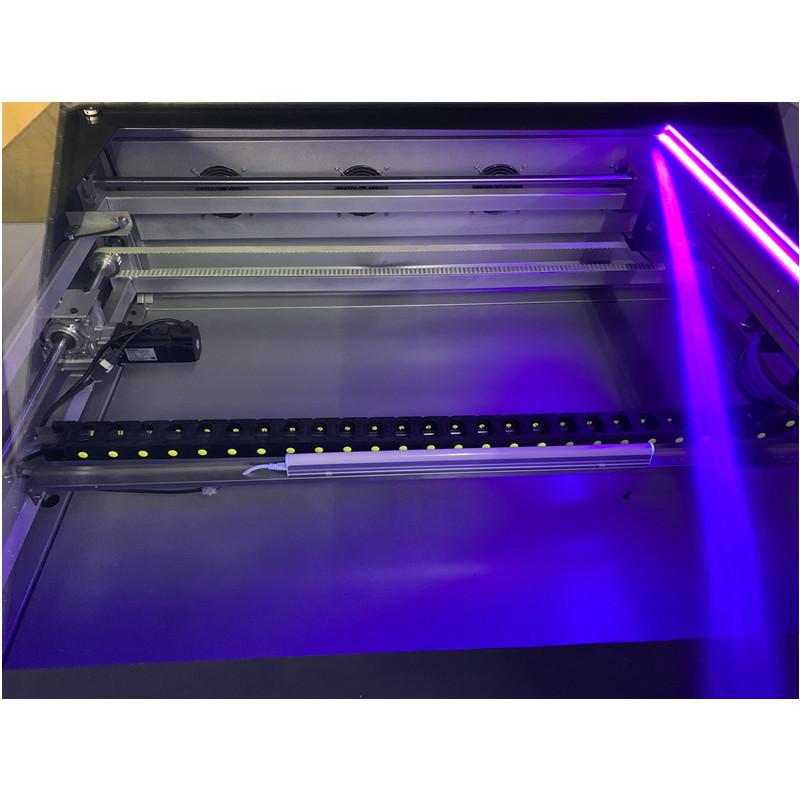

Scanning exposure ensures precise exposure of the entire pattern.
According to the characteristics of different photosensitive adhesives, different exposure speeds and exposure times can be set.
Easy to operate, all parameters can be adjusted arbitrarily according to needs in the touch screen.
LED energy-saving printing machine-600W instead of traditional 3000W lamp, low power and high energy.
LED lights work without ozone emission, low carbon and environmental protection.
Wide applicability and compatibility. It can be applied to any brand of photosensitive glue.
Reduce the hot glass, low glass temperature, no screen plate, reduce the unstable factors caused by glass heating, and maintain the stability of the quality of the printing plate.
The operation is convenient and fast, the LED light can reach the spectral capacity value instantly after starting, and it works in lightning style.
