| Model: | TS5505L |
|---|---|
| Brand: | Tensan |
| Origin: | Made In China |
| Category: | Chemicals / Adhesives & Sealants |
| Label: | RTV Silicone Adhesiv , Adhesive for Electro , RTV adhesive |
| Price: |
US $1
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: | Last Online:17 Mar, 2021 |

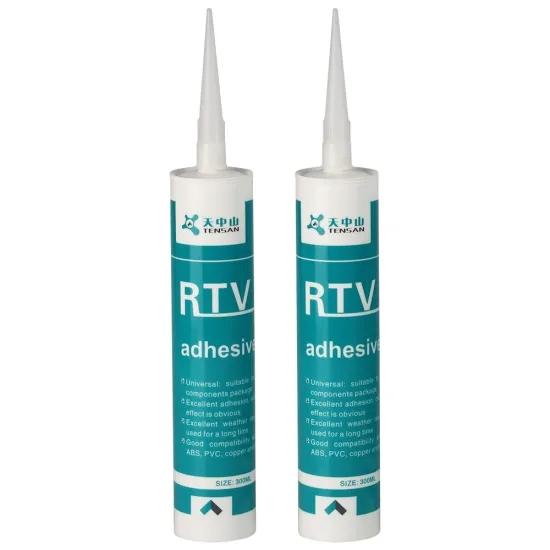

Electronic Adhesive Silicone Sealant Glue
Features & Benefits of Thermal Conductive Adhesive Sealant
TENSAN Thermal Conductive Adhesive Sealant is one-component silicone with bonding and sealing strength. It can be used for bonding metal, glass, ceramics material,etc.
1. REACH, ROHS certified
2. MSDS for air/sea shipment
3.Non-corrosive to most metal material
4.Good press ratio,suitable for machine dispensing
5. Good adhesive strength
6.Good performance in extreme condition
7.Good flame resistance
Typical Properties
| Thermally Conductive Adhesive | |||||
| Property | Test Method | TS5505 | TS5505L | TS5505M | TS5505H |
| Color | Visual | White | White | Grey | White |
| Viscosity (KCPS) | Brookfield Viscometer | 60 | 60 | 60 | 60 |
| Specific Gravity (g/cc) | Helium Pycnomter | 2.0 | 2.2 | 2.6 | 2.9 |
| Operation time(mins) | / | 60 | 60 | 60 | 60 |
| Thermal Conductivity (w/m.k) | Hot Disk | 1.0 | 1.3 | 1.5 | 2.3 |
| Thermal Resistance@50psi | ASTM D5470 | 0.08 | 00.08 | 0.08 | 0.06 |
| Breakdown Voltage (KVac/mm) | ASTM D149 | >6 | >6 | >6 | >6 |
| Volume Resistivity (ohm-cm) | ASTM D257 | 5*1014 | 5*1014 | 5*1014 | 5*1014 |
| Dielectric Constant@1MHz | ASTM D150 | 6.0 | 6.0 | 6.0 | 6.0 |
| Hardness (Shore A) | ASTM D2440 | 65 | 70 | 80 | 86 |
| Elongation (%) | ASTM D142 | 180 | 170 | 150 | 110 |
| Shelf Life (Month) | / | 6 | 6 | 6 | 6 |
| Usage Temperature Range | / | -50~+200 | -50~+200 | -50~+200 | -50~+200 |
| Cure Condition | / | 24H | 24H | 24H | 24H |
| UL Flammabitily Rating | UL94 | V-0 | V-0 | V-0 | V-0 |
Typical Applications of Thermal Conductive Adhesive Sealant
This one-component silicone is widely used in the electronic component of TV,CRT, Driver,Telecommunication equipment for bonding and sealant. It is also applied in the inflaming products for sealant purpose ,like metal,plastic glass,rubber ,etc.
Packing Information of Thermal Conductive Adhesive Sealant
1. Hard plastic tube 100 ml
100 tubes / carton
2. Hard plastic tube 300 ml
24 tubes / carton
3. Hard plastic tube 2600ml
4 tubes / carton
4. Customized packing is acceptable
Storage and Validity of Thermal Conductive Adhesive Sealant
1.Keep away from children.
2.Stored in a cool, ventilated, dry place.
Shelf life: 6 months
