4color 20station Large Ink Cup Tank Belt Pad Printer with loading and unloading

Model:PM4-150TK-20T
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pad printer , ink cup , automatic
Price: US $18170 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:25 Jan, 2022

Product Description

LC-PM4-150TK-20T pad printing machine adds automatic loading and unloading system, can print 4 colors automatically at one time. It adds PLC and touch screen control system , can help you  adjust the machine smoothly. It is printing speed reach 2000 pcs per hour.

Cylinder of LC-PM4-150TK-20T is German FESTO brand. Electrical components are imported from Japan. Vacuum system is from Taiwan. It meets CE standard, with very stable running.

It is with closed ink cup, can save 60% ink and 90% thinner. Closed ink cup to drive by independent cylinder, so that can ensure removing ink completely and prolong the life of sealed cup and steel plate.

Kindly check here sees the machine working on Youtube.com:

https://youtu.be/RZPc_D7s2kY

 LC-PM4-150TK-20T pad printing machine for mini wheel



Applications:

Suitable for metal, glass, ceramic, plastic, wood, leather and other materials in the printing area is relatively small flat or curved and irregular surfaces precision printing products. Such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, heel and so on.



Specification:

1.Printing colors: 4colors

2.Printing station: 20Pcs

3.Up and down stroke of print head cylinder: 75mm

4.Front and back stroke of sliding cylinder: 225mm

5.Front and back stroke of oil cup cylinder: 200mm

6.Table size: 144 * 155mm

7.Workbench station: 20Pcs

8.Plate Size: 150 * 300mm

10.Printing speed: 2000 Pcs / Hr

11.Power: 220V 50Hz

12.Pressure: 6 Bar

13.Air consumption: 170 Liter / Min

14.Dimensions: 1070 * 1400 * 1620mm

15. weight: 385Kg


Product Image

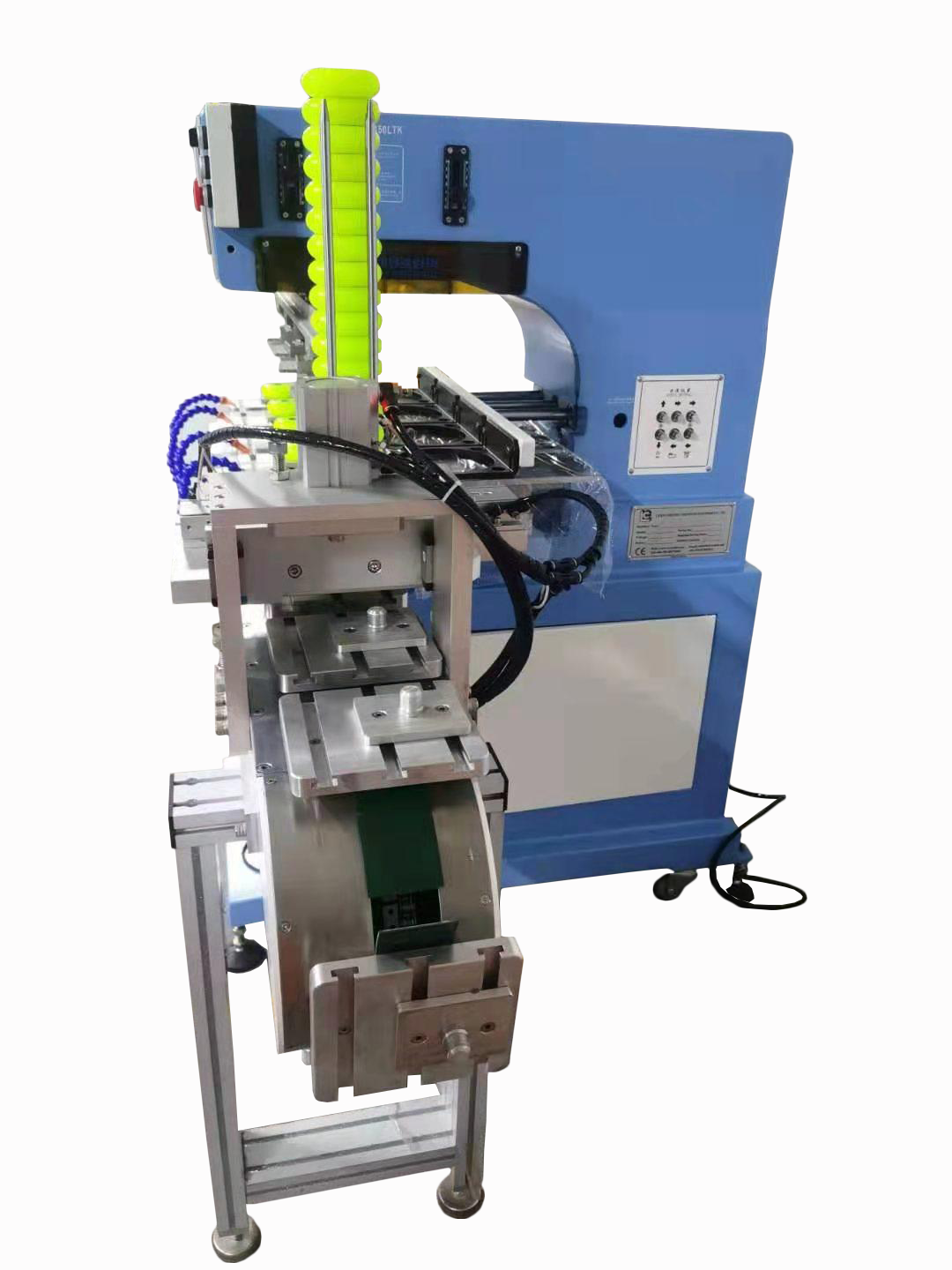

4color 20station Large Ink Cup Tank Belt Pad Printer with loading and unloading  1
