| Model: | TC-2600-2800 |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | folder gluer , gluer stitcher |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:30 Dec, 2022 |

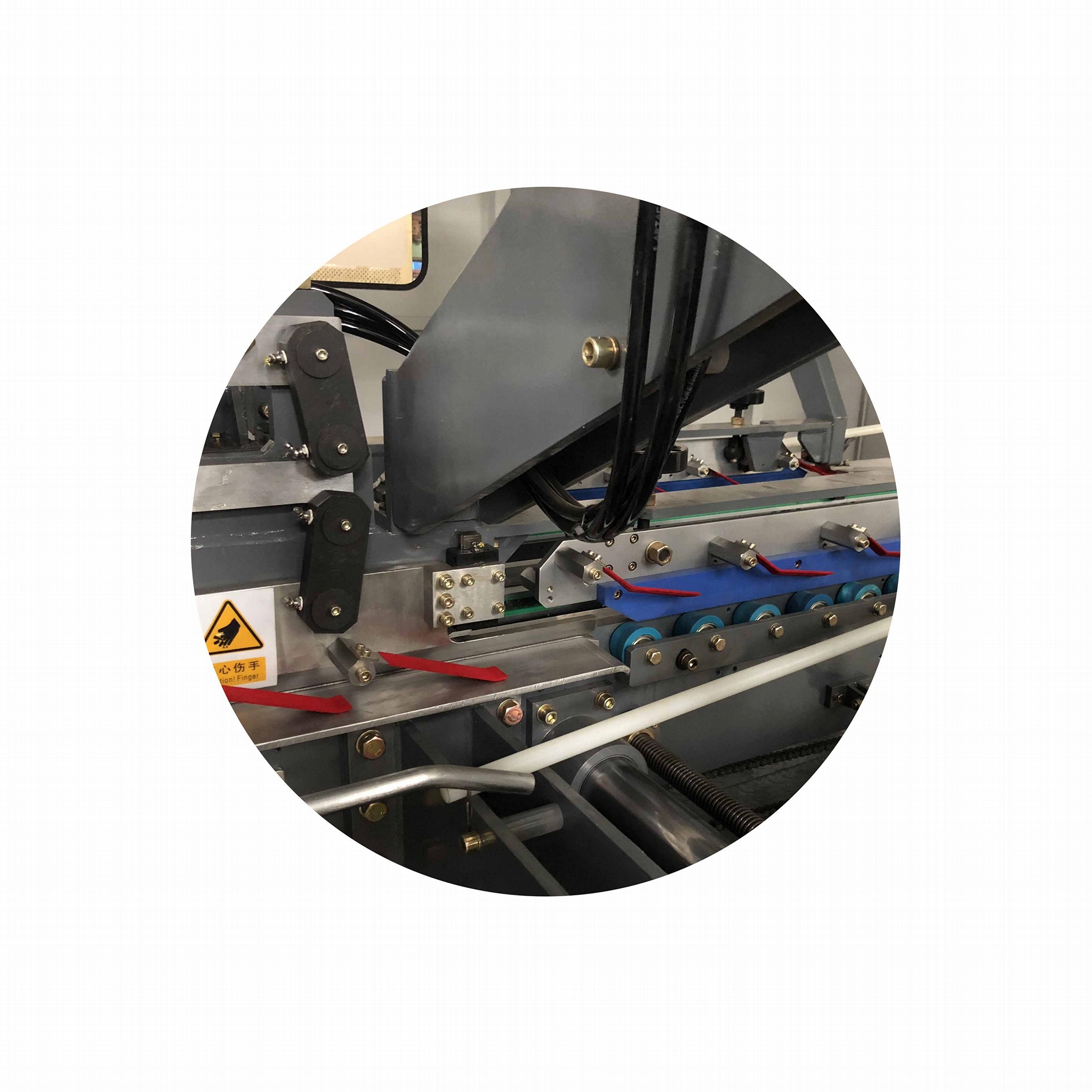

Corrugated carton box folder gluer stitcher machine with double wall
Corrugated carton box folder gluer stitcher machine with double wall are mainly used in food carton box, fruit carton box and industry carton box.
The stitching head speed is 1000 stitching times per minute.
Automatic vacuum belt lead edge feeder.
The whole machine installed 8 sets of Mitsubishi servo motors.
PLC program system is Mitsubishi.
Order memory is 100 sets of sheets.
|
Model |
TC-2600 |
TC-2800 |
|
Max feeding size |
2600*940mm |
2800*940mm |
|
Min feeding size |
800*300mm |
800*300mm |
|
Corrugated board |
3ply, 5ply, 7ply |
3ply, 5ply, 7ply |
|
Max stitching speed |
90pcs/min (3 wire stitches) 80pcs/min (4 wire stitches) 70pcs/min (5 wire stitches) |
90pcs/min (3 wire stitches) 80pcs/min (4 wire stitches) 70pcs/min (5 wire stitches) |
|
Max gluing speed |
90pcs/min |
90pcs/min |
|
Stitching head speed |
1000 stitches/min |
1000 stitches/min |
|
Stitching wire |
1.8mm |
1.8mm |
|
Stitching distance |
20-80mm |
20-80mm |
|
Total power |
50kw |
50kw |
|
Voltage |
380V, 50HZ, 3phase |
380V, 50HZ, 3phase |
|
Weight |
15.5tons |
15.8tons |
|
Dimension |
15000*3700*2100mm |
15000*3900*2100mm |
