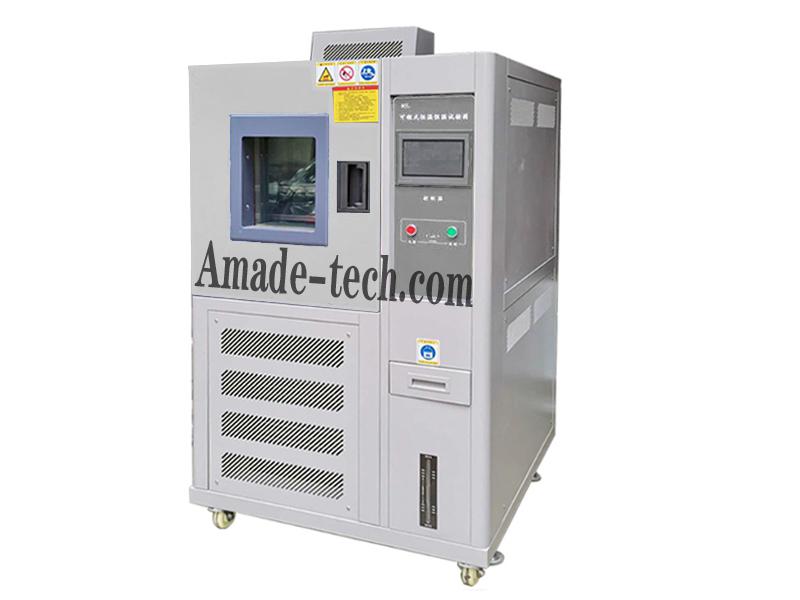

Environmental Test Chamber with Constant Temperature and Humidity
It Is able to simulate the range of temperature & humidity fluctuating from an extremely low value of -70℃ & 20% R.H to an exceeding high value 150℃ & 98% R.H which products may be exposed to in the natural environment.
Standards
IEC60068-2
MIL-STD-810D
MIL-STD.202F
Main Parameters
|
Model |
AT-C1001 |
|
Temperature range |
0℃～150℃,-20℃～150℃, -40℃～150℃,-70℃～150℃ |
|
Temperature resolution |
0.01℃ |
|
Temperature fluctuation |
±0.5℃ |
|
Temperature uniformity |
±2℃ |
|
Temperature accuracy |
±0.1℃ |
|
Heating rating |
Average 3℃/min Nonlinear no load |
|
Cooling rate |
Average 1℃/min Nonlinear no load |
|
Humidity range |
20%RH ~98%RH |
|
Humidity fluctuation |
±2.5%RH |
|
Humidity uniformity |
Humidity >75%RH: ≤+2%RH,-3%RH Humidity <75%RH:≤±5%RH |
|
Humidity resolution |
±0.1%R.H |
|
Temperature humidity comparison chart |
|
|
Inner chamber dimension (WxHxD) |
400x500x400mm(80L), 500X600X500mm(150L) 500X750X60mm(225L), 600X850X800mm(408L) 1000X1000X800mm(800L), 1000X1000X1000mm(1000L) |
|
Box material |
The inner chamber is made of SUS304 first-class stainless steel, and the outer chamber is cold-rolled steel plate and treated with high-grade vertical paint |
|
Insulation layer between inner and outer chamber |
Polyurethane foam and glass wool, Better insulation performance |
|
Refrigeration system |
TECUMSEH or Bitzer Fully enclosed or semi-enclosed compressor, using environmentally friendly refrigerant The cooling and heating cycle system and key electrical components of the refrigeration unit adopt world-renowned brands |
|
Temperature and humidity control system |
World famous brand TEMI or OYO |
Welcome to contact with us for details on product and price.
