Stylish Steel Barrier Swing Turnstile 1
  • Stylish Steel Barrier Swing Turnstile 1

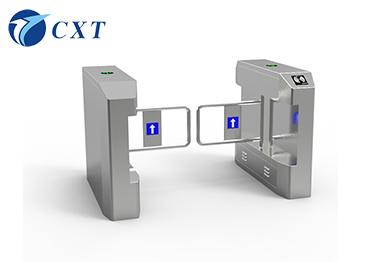

Stylish Steel Barrier Swing Turnstile

Model:-
Brand:CXT
Origin:Made In China
Category:Electronics & Electricity / Other Electrical & Electronic
Label:swing gate lane
Price: US $800 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Product Description



As one of the turnstile gate suppliers, CXT tech dedicates to providing all kinds of middle and high-class Turnstile solutions for Integrators and Distributor worldwide with 12 years history.



CXT Swing Turnstile Unique Features:

Adopt Brush-less motor, it has a longer lifespan.

Non polar collision avoidance,it has strong resistance to destruction.

Superego protection, it is the preferred choice for non-motorized vehicle passageway.

Cutting edge new ARM technology, which has better expand-ability and high-cost performance.

Merits for smooth running, speed adjustable and low wear.

Adopt module structure design, the swing gate lane has an easier operation and less maintenance.

Lane size can be set and has the good anti-pinch performance to protect passengers.

CXT Swing Turnstile Main Function:

Easy operation and convenient maintenance with functions of breakdown self-check and alarm.

The internal swing barrier can be linked to an external control device and receive the signal by the button or remote control, thus to realize one or bi-direction passing control.

Auto reset function: Arm rotates 90 degree and auto resets after detection of human/objects' passing, or auto cancels passing right and resets if there has no valid passing within the specified time.

Lighting indicator: High brightness passing indication.

Anti-follow function



A.Anti-follow function: Arm rotates 120 degrees for normal passing and will hold tight and alarm if there has trailing

B.(when equipped with infrared detection)infrared alarms if someone attempts to trail when former person or objects are not fully passing through.



Pedestrian passing and vehicle passing models are optional.

Can be connected to the fire alarm signal, to realize continuous electric pole normal open to evacuate people.

Alarm prompt function: Auto alarm for illegal passing or dash passing.

Speed adjustable: Multi-stage adjustable arm opening and closing speed, and can be set according to the actual demand.

A new generation of industrial-grade ARM control system, to establish multi-functional digital Settings, such as encryption and reset function.

Anti-reverse function: In the process of arm reset, if there has reverse force, the arm will start anti-reverse function automatically and send out alarm till external forces disappear, then back to zero for normal passing.

Auto self-protection function: when the arm is prevented by the external continuous force, the system will auto detect for about 20 seconds and enter into a dormant state. When receiving a legitimate signal input, the system will automatically return to normal.

Multi-stage anti-collision( buffer function): illegal traffic or blunt brake, brake lever buffer corresponding Angle and start immediately reverse thrust, start the alarm at the same time, in the realization of human injury prevention at the same time also greatly reduced because of the often or continuous collision caused by mechanical damage

Arm normal open when power is off(free passing), auto reset when power is on. (passing is controlled)

Oval shape swing Turnstile Technical Parameter:

Housing material: 304SS frame structure

Processing work-craft: Adopt Laser, bend, weld, polish and etc.

Standard Dimension: per different models

Weight: per different models

Arm length: 545mm(adjustable)

Lane Width: 1140mm(adjustable)

Voltage: AC220±10V,50HZ (notify if you have special requirement)

Motor: 24V/30W DC

LED guider: High brightness traffic status indication (Arrow flashing when passing)

Working environment: Indoor and Outdoor

Suitable Temperature: -40℃ ~ 80

Suitable humidity: 5%-90%

Emergency measure: Gate will auto open when power off

Gate opening/closing time: 0.5s-2s (adjustable)

Passing speed: 30-40people/minute

Communication interface: RS485/TCP/IP



Oval Shape Swing Turnstile Function Comparison Table:

Seq.

Item name

Market product

CXT upgraded product

1

Transmission mode

Brush motor

Brush-less motor

2

Locating principle

Optical coupling point

Brush-less intelligent positioning

3

Positioning mode

Gear locating

Intelligent react force(unlock)

4

Buffering

None

Lasting buffer

5

Anti-reverse

None

has

6

Running speed

Uniform speed

Speed adjusted

7

Mechanical wear

Big

Small

8

Illegal mechanical alarm

None

has

9

Life-span

1-3Year

5- 6 year

10

Transmission life

3million times

10million times

11

Date setting

Dialing

Numerical code button

12

Memory

None

has

13

Fire protection input

has

has

14

Feedback signal output

has

has

15

Normal open when power off

has

has






Payment Terms:TT
