LHC Underhang Hoist

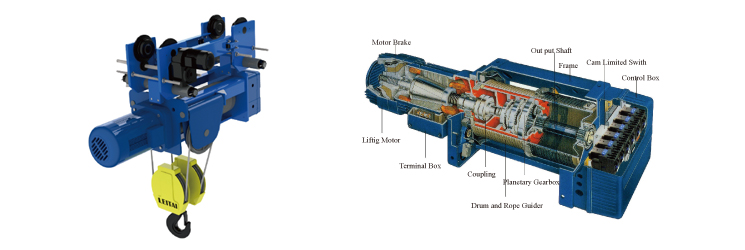

LEITAI LHC series steel rope electric hoist have newest designing with quadrate outline, modularize construction, good unitized capability.
1. The fundamental mode change combine is very convenient and multiform.
2 The special long transmission shaft.
3. The reducer use planetary speed-down drive which have high effective, low yawp long using life.
4. Unique column rotor-taper breaking wheel motor with low yawp, disk reliable.
5. With the advanced guide rope technology from overseas, unit is very reliable and safety.
6. High precision and super mechanical apin limiter.
7. High quality control electric component with low malfunction.
| Model | Capacity
(t) |
Duty | Rope
reeving |
lifting
speed (nyrnin) |
Lifting
motor (kw) |
Traveling
speed (nyrriin) |
Traveling
motor (kw) |
L2
(mm) |
Suitable for Rail C
(mm) |
||
| Singlespeed | Doublespeed | I | H | ||||||||
| LH4B | 3.2 | M4 | 4/1 | 3.6
3.6/1.2 |
3/1 | 20
20/6.7 |
0.37
0.37/0.12 |
350 | 535 | 110-180 | 180-420 |
| LH5B | 6.3 | M4 | 4/1 | 3.5
3.5/0.8 |
4.5
4.5/1.1 |
20
20/6.7 |
0.55
0.55/0.18 |
380 | 600 | 130-180 | 180-420 |
| LH6B | 10 | M4 | 4/1 | 3.8
3.8/0.9 |
7.5
7.5/2.0 |
20
20/6.7 |
0.75
0.75/0.25 |
460 | 645 | 140-180 | 180-450 |
| LH7B | 16 | M4 | 4/1 | 4
4/1 |
13
13/3.4 |
20
20/6.7 |
2x0.75
0.75/0.25 |
520 | 620 | 150-180 | 180-300 |
| LH8B | 20 | M4 | 4/1 | 3.2
3.2/0.8 |
13
13/3.4 |
20
20/6.7 |
2x0.75
0.75/0.25 |
520 | 620 | 150-180 | 180-300 |
| Model | L5
mm |
L4
mm |
HI
mm |
Hmi
n mm |
u | D
mm |
S
mm |
lifting height(H) | |||
| 6m | 9m | 12m | 15m | ||||||||
| LH4B | 375 | 282 | 121 | 1105 | 147 | 142 | 0.0174H | 716 | 924 | 1132 | 1340 |
| 925 | 1133 | 1341 | 1549 | ||||||||
| LH5B | 429 | 278 | 151 | 1225 | 161 | 157 | 0.0182H | 757 | 975 | 1193 | 1411 |
| 986 | 1204 | 1422 | 1640 | ||||||||
| LH6B | 434 | 308 | 179 | 1314 | 194 | 175 | 0.019IH | 832 | 1061 | 1290 | 1519 |
| 1101 | 1330 | 1559 | 1788 | ||||||||
| LH7B | 434 | 186 | 179 | 1412 | 250 | 208 | 0.0194H | 885 | 1118 | 1351 | 1584 |
| 1201 | 1434 | 1667 | 1900 | ||||||||
| LH8B | 434 | 186 | 179 | 1412 | 250 | 208 | 0.0194H | 885 | 1118 | 1351 | 1584 |
| 1201 | 1434 | 1667 | 1900 | ||||||||
