| Model: | 定制customizable |
|---|---|
| Brand: | GANXIN |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electric Parts & Materials |
| Label: | hermetic feedthrough , ceramic feedthrough , ceramic vacuum |
| Price: |
¥1000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:16 Apr, 2024 |
1. Main technical indicators:
a.Withstand voltage: 200kV
b.Current: 1000A
c.Leak rate: <10(-10)Pa·L/S
d.Bakeable to: 500°C
e.Tensile strength: ≥120MPa
2. Main process characteristics:
a.High temperature metallization.
b.Vacuum brazing, welding temperature is 800°C, and specific welding temperature can be applied according to user requirements.
c. Vacuum professional technology and professional equipment process guarantee.
3. Processing method
1). Standard electrode:

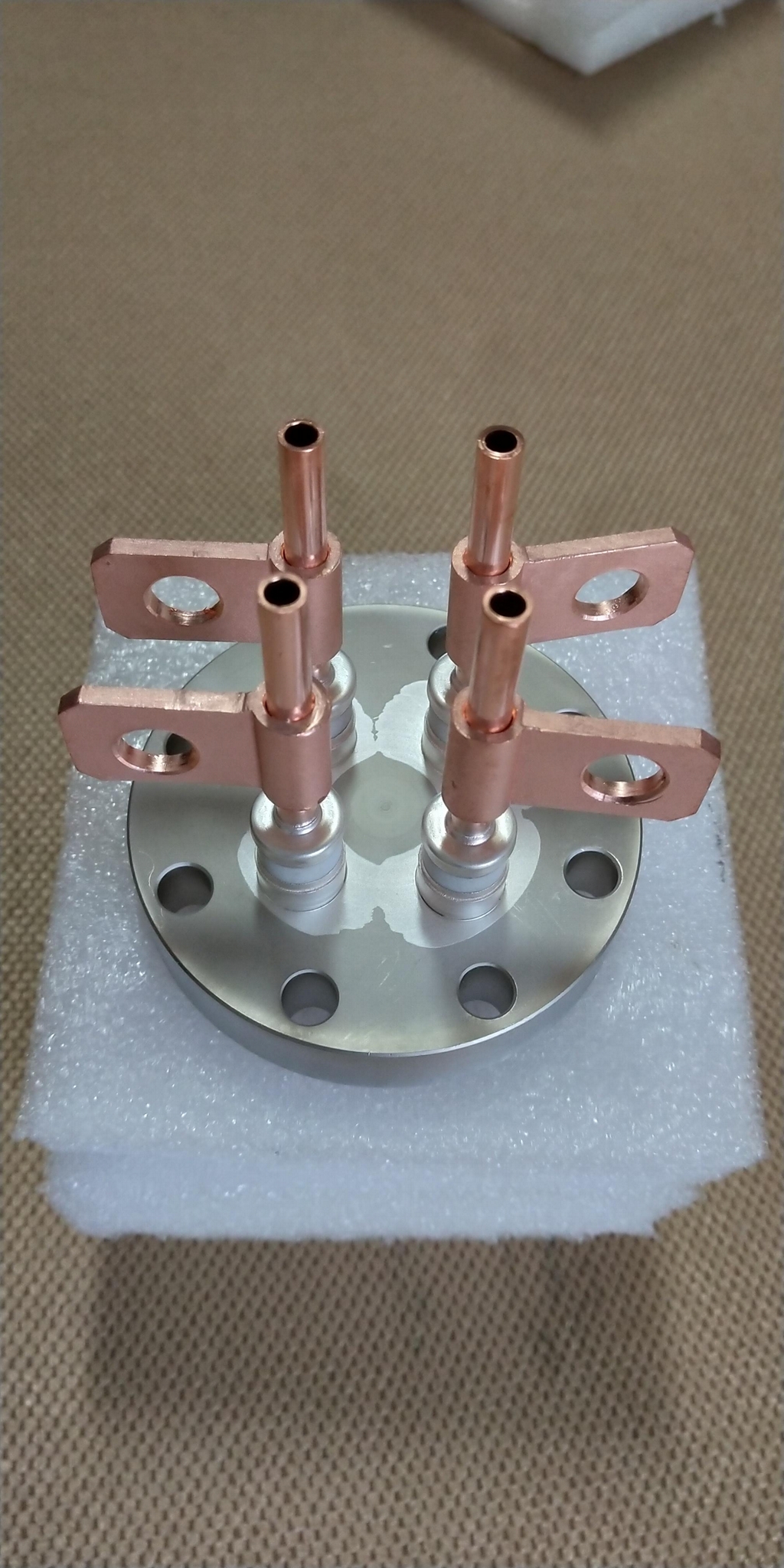

a. flange connection forms: CF, ISO; KF and LF, standard interfaces; various non-standard flange interfaces can be customized.
b. Number of electrode cores: according to user needs.
2). Non-standard processing: According to user needs, we can process drawings or samples and design and process products for customers.
