| Model: | G2L32 |
|---|---|
| Brand: | Jiaxin |
| Origin: | Made In China |
| Category: | Industrial Supplies / Construction Machine |
| Label: | CNC bender center , auto bending certer , Double Head Bender |
| Price: |
US $18500
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:18 Nov, 2020 |

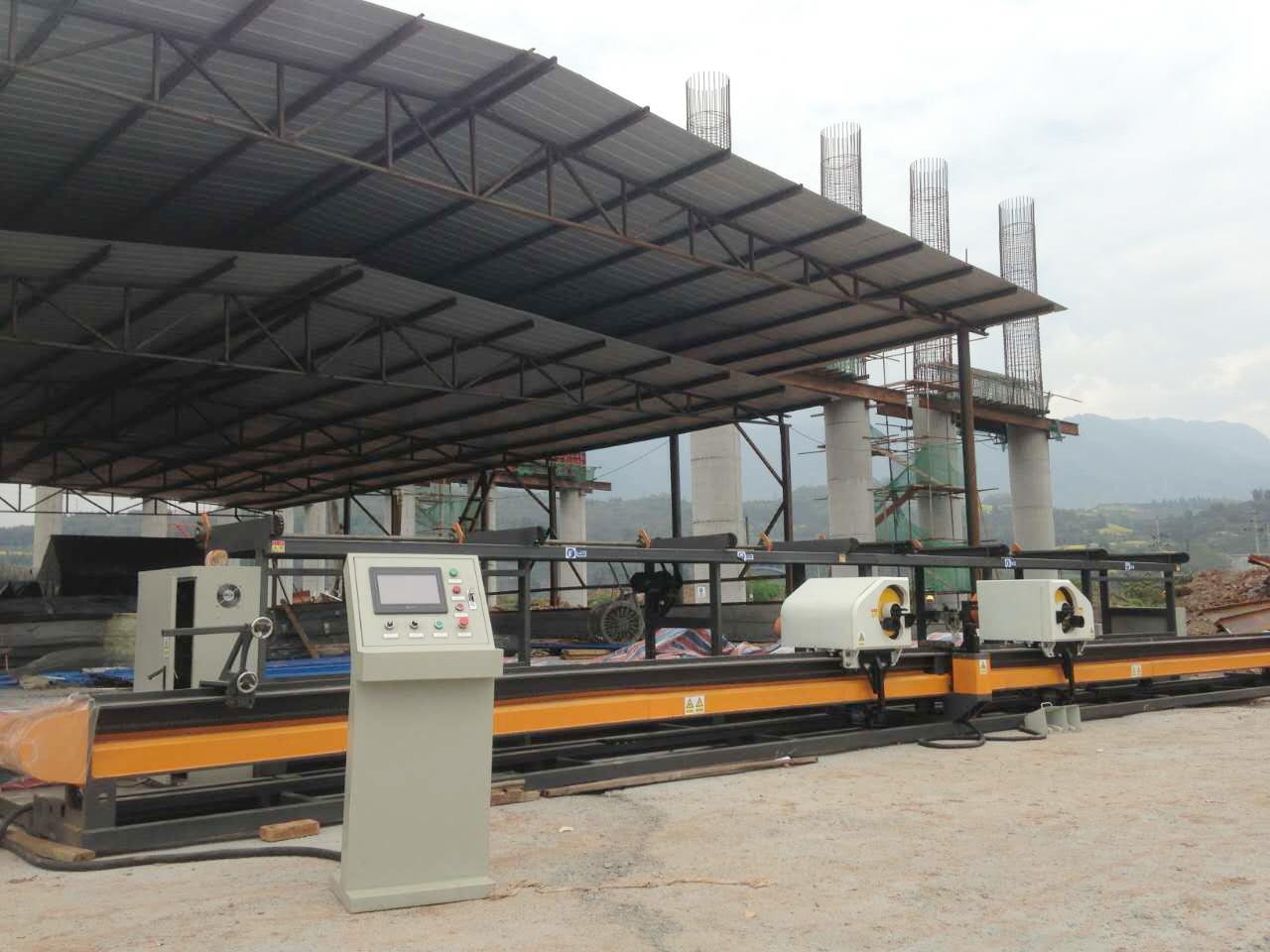

1. Description of G2L32 CNC Automatic Double Head Bending Center
1) Imported PLC and CNC control system controller with touchscreen interface, could save hundreds graphics.
2) Easy to operate, could bend more angles within one rebar loop.
3) Locking reinforcement bar flexible,to make sure bending precision.
4) Bending panel is wear-resisting,by heat treatment, have longer working life.
5) Bending spindle controlled by servo system, will provide high bending accuracy.
6) This machine could set bending length easily by moving bending spindle.
7) Whole machine is integrated, high quality moving track.
8) Retractable bending axle realize both-way bending.
9) Use heavy loading auto-feeding shelf for large batch materials.
10) High working efficiency, could bending many bars at same time.
11) Could process 5500pcs steel bars at one day, working efficiency is 10times compare with traditional equipment.could instead of 12 workers.
13) Bending reinforcement bars φ10mm to φ32mm; with high precision, low labor cost.
2. Technical Parameter of G2L32 CNC Automatic Double Head Bending Center
| Model | G2L32 | |||||||||
| Machine Dimension | 12.5*1.6*1.6m | |||||||||
| Max Bending Angle | Up Bending Angle | 180° | ||||||||
| Down Bending Angle | -120° | |||||||||
| Max Length Scope of Stirrup Side | 10m | |||||||||
| Min Length Scope of Stirrup Side | 90mm | |||||||||
| Min Space Between Stirrup Side | (φ10),(520mm) | |||||||||
| (φ32),(580mm) | ||||||||||
| Length Precision | ±2mm | |||||||||
| Angle Precision | ±0.5mm | |||||||||
| Bending Motor | CNC Servo Motor | |||||||||
| Total Power Rating | 14KW | |||||||||
| Voltage | 3 Phase 380V 50Hz | |||||||||
| Moving Speed of Bending Head | 0.5-1m/s | |||||||||
| Working Temperature | -5~40° | |||||||||
| Air Pressure | 0.6Mpa | |||||||||
| Processing Ability | Bar Diameter | 10 | 12 | 14 | 16 | 20 | 22 | 25 | 28 | 32 |
| Qty of Bars | 6 | 5 | 4 | 3 | 2 | 2 | 1 | 1 | 1 | |
| Total Weight | 5500kgs | |||||||||
| Payment Terms: | TT / LC |
|---|---|
| Packing: | Nude Packing or 40HQ Container |
| Lead Time: | 25 working days after payment. |
