| Model: | - |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Construction Machine |
| Label: | - |
| Price: |
¥6800
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:31 May, 2023 |
|
MODEL |

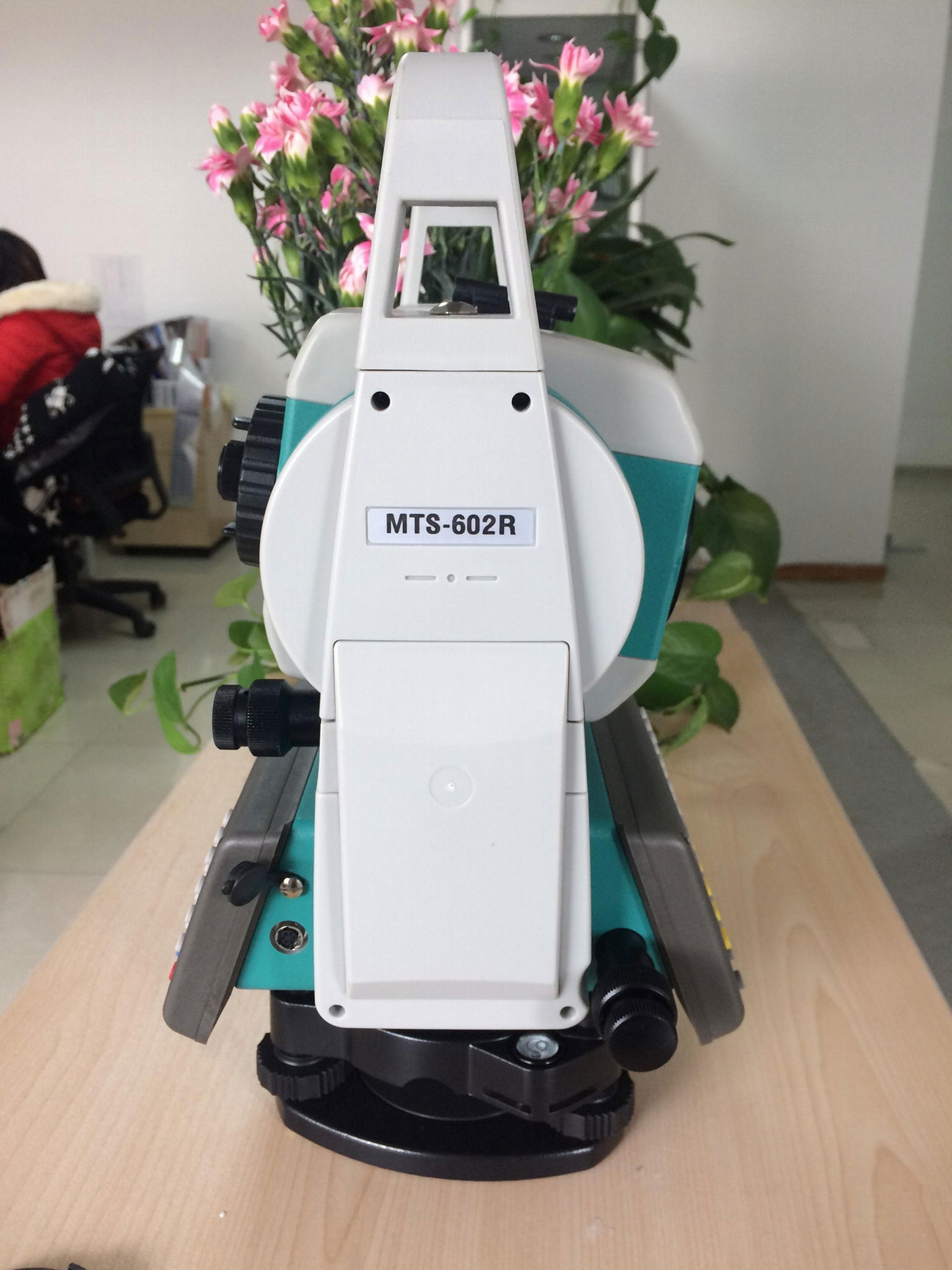

MTS-602R |
MTS-602 |
MTS-605 |
|
Telescope |
|||
|
Image |
Erect |
||
|
Magnification |
30X |
||
|
Effective Aperture |
45mm(DTM 50mm) |
||
|
Resolving Power |
4" |
||
|
Field Of View |
1°30' |
||
|
Minimum Focus |
1.5m |
||
|
Distance Measurement(under Fair Weather Condition) |
|||
|
None prism |
500M |
|
|
|
Range 1P |
3.0km |
3.0km |
2.0km |
|
sheet |
3.0 km |
3.0km |
2.0km |
|
Accuracy |
2mm+2ppmxD |
||
|
Minimum Count |
1mm |
||
|
Distance Unit |
ft.Or m selectable |
||
|
Measuring Time |
|
||
|
Fine |
1.8sec.(first time2.5sec.) |
||
|
Tracking |
0.4 Sec. |
||
|
Maximum display |
999999.999m |
||
|
Atmospheric Correction |
|
||
|
Temperature |
C or F |
||
|
Atmospheric Pressure |
hPa/mmH/inHg |
||
|
Atmospheric Deflection & |
|
||
|
Earth Curvature Correction |
k=0.14/0.20/0 |
||
|
Prism Constant |
0 mm / 30 mm |
||
|
Angle Measurement |
|||
|
Measurement Method |
Incremental Photoelectronic Encoder |
||
|
Detection Method |
|
||
|
Horizontal |
Dual |
||
|
Vertical |
Dual |
||
|
Accuracy |
2" |
2" |
5" |
|
Minimum Readout |
1"and5" |
1"and5" |
5"and10" |
|
Sensitivity of Vials |
|||
|
Plate Vial |
30"/2mm |
||
|
Circular Vial |
8'/2mm |
||
|
Vertical Compensation |
Available |
||
|
Type |
Liquid-electric detection/Plate level |
||
|
Compensation Range |
+/-3' |
||
|
Resolution |
1" |
||
|
Optical Plummet |
|||
|
Image |
Erect |
||
|
Magnification |
3X |
||
|
Focus Rang |
0.5m-infinity |
||
|
Display |
Double Side, LCD, Four-line Display |
||
|
Data Port |
RS-232 or USB port
|
||
|
Battery |
Lithium Rechargeable |
||
|
Voltage |
7.4VDC |
||
|
Operation Time |
Distance and angle measurement: 8.5hours; Angle measurement 30 hours |
||
|
Charging Tine |
2 hours |
||
