Electric Pallet Truck-Heavy Duty
Product Description
| Sitting Electric Pallet Truck |
|
|
| Electric Pallet Truck |
|
|
| Mode：CBD60/80/100/120/150/200/250 |
|
|
| Loading Capacity：6000-25000kg |
|
|
| AC System, EPS, Lower Noise Pump,Side Draw battery, Optional Lithium Battery, Customized |
| Feature |
|
|
| Standard |
|
|
| ● Double Oil Cylinder |
|
|
| ● USA Curtis Controller |
|
|
| ● Zhongnan Transimission |
|
|
| ● EPS, easy to operating, Silence |
|
|
| ● Japan Shimazu Lower noise Hydraulic Pump |
|
|
| ● AC Drive motor, brushless, no need Maintaince Motor |
|
| ● Electromagnetic、regenerative brake |
|
|
| ● Over high and low Volage Limit Protection, Over heating Protection |
| ● Self Automatic issue code Checking |
|
|
| |
|
|
| |
|
|
| Safety |
|
|
| ● Automatic Speed Reduction Device for Curves |
|
|
| ● Controller Multiple Protection System |
|
|
| ● OPS Seat /Brake system |
|
|
| ● Cylinder Safety Shut-off Valve |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Specification |
|
| Product Name |
|
Electric Pallet Truck |
| Model |
|
CBD 60/80 |
| Power Model |
|
Battery |
| Drive Model |
|
Sitting |
| Loading Capacity |
kg |
6000/8000 |
| Loading Center |
mm |
600 |
| Size |
|
|
| Overall Length（Platform Fold/unfold) |
mm |
2215 |
| Overall Width |
mm |
1270 |
| Fork Size |
mm |
1200*235（245） |
| Outside Fork Distance |
mm |
715/735 |
| Mini Ground Clearance |
mm |
105-110 |
| Maxi Ground Clearance |
mm |
225 |
| Wheel Types，Drive/Load |
|
PU |
| Wheel Size，Loading |
mm |
Φ100*140 |
| Wheel Size，Driving |
mm |
Φ343*135 |
| Wheel Number F/R（X=Drive） |
|
4/1X |
| Steering Wheel Height |
mm |
1485 |
| Seat Height |
mm |
1070 |
| Lifting Height |
mm |
120 |
| Platform Height |
mm |
145 |
| Mini Ground Clearance of Fork |
mm |
85 |
| Performance |
|
|
Aisle Width for Pallet 1000*1000
Fork along side 1200 Platform unfold/fold |
mm |
2895 |
| Turing Radius |
mm |
1995 |
| Driving Speed， Loaded/Unloaded |
km/h |
7.0/8.0 |
| Lifting Speed， Loaded/Unloaded |
mm/s |
40/54 |
| Lowering Speed， Loaded/Unloaded |
mm/s |
55/45 |
| Max Climbling Capacity， Loaded/Unloaded（S2-5 min) |
% |
8 |
| Brake Model |
|
Electromagnetism |
| Steering Model |
|
EPS |
| Battery Exchange mode |
|
Side Draw |
| Power |
|
|
| Driving Motor（S2-5Min) |
kw |
6.3 |
| Lifting Motor（S2-5Min) |
kw |
4.5 |
| Battery |
V/AH |
48/300 |
| Charger |
V/A |
48/50A |
| Weight |
|
|
| Battery |
kg |
650 |
| Overall Truck(Includes Battery) |
kg |
1800（2000） |

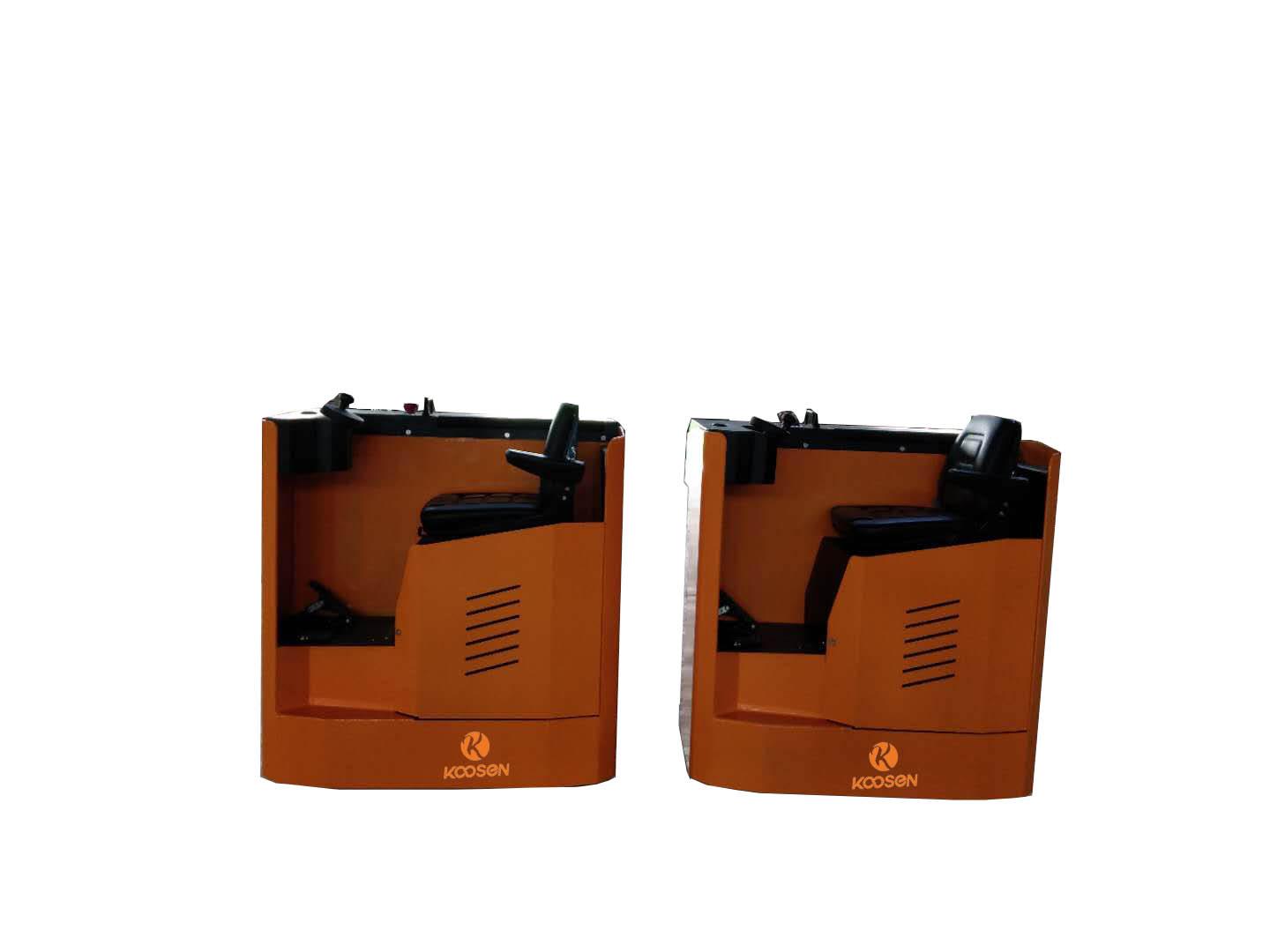

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
