Product Description
| Size |
|
|
| Model |
GTBZ18A |
GTBZ16A |
| Working Hight |
18.00m |
16.00m |
| Platform Foor Hight |
16.00m |
14.00m |
| Max.Hrizontal Rach |
8.85m |
7.47m |
| Up and Over Clearance |
8.45m |
7.67m |
| Overall Length |
7.59m |
6.94m |
| Length (Tansport Position) |
5.80m |
5.15m |
| Overall Width |
2.30m |
2.30m |
| Overall Height |
2.33m |
2.33m |
| Platform Size |
1.80m×0.76m |
1.80m×0.76m |
| Ground Clearance |
0.36m |
0.36m |
| Wheelbase |
2.20m |
2.20m |
| Performance |
|
|
| Model |
GTBZ18A |
GTBZ16A |
| S.W.L |
230kg |
230kg |
| Max.Occupants |
2 |
2 |
| Turntable Tilswing |
0 |
0 |
| Turning Radius(Inside/Outside) |
2.84m/4.29m |
2.84m/4.29m |
| Turntable Turning |
360°continuous |
360°continuous |
| Platform Rotating Range |
±90° |
±90° |
| Jib Lift Movenent Range |
+70°/-60° |
+70°/-60° |
| Travel Speed(Stowed) |
6.1km/h |
6.1km/h |
| Travel Speed(Working) |
≤1.1km/h |
≤1.1km/h |
| Gradeability |
40% |
40% |
| Maximum Slope |
5° |
5° |
| Tyre |
33×12-20 |
33×12-20 |
| Power |
|
|
| Model |
GTBZ18A |
GTBZ16A |
| Engine (Kubota V2403) |
34.1kw/2400rpm |
34.1kw/2400rpm |
| Diesel |
Diesel |
Diesel |
| Hydraulic Tank |
184L |
184L |
| Diesel Tank |
90L |
90L |
| Weight |
|
|
| Model |
GTBZ18A |
GTBZ16A |
| Gross Weight |
7835kg |
7430kg |

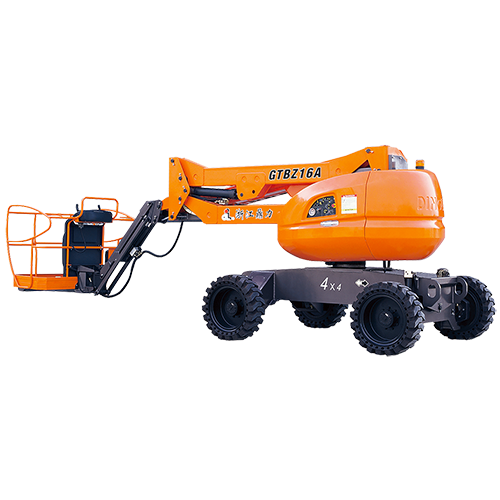

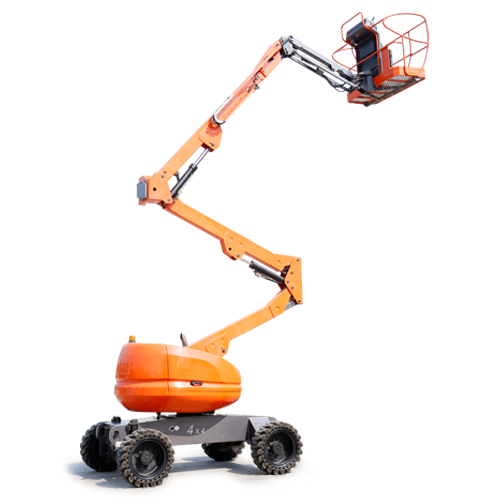

Product Image
