Three cylinders piston grout pump with mixer for construction

Model:GGP
Brand:Gaodetec
Origin:Made In China
Category:Industrial Supplies / Machinery / Pumps Vacuum Equipment
Label:grout plant , grout mixer pump , piston grout station
Price: US $16999 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Gaode Equipment Co., Ltd.

Biz MemberHe Nan - China
Live Chat:点击这里给我发消息Last Online:15 May, 2021

Product Description

Three cylinders piston grout pump with mixer for construction

Description

GGP400/700/320/100TPI-E grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the agitator drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is driven by an electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.



Product Feature

  • Three cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
  • Grouting pressure and displacement is adjustable.
  • The function switch between mixer and pulping machine is realized by using squeeze switch.
  • Triplex single acting reciprocating piston pump acted as universal grouting applications.
  • Easy to operate and maintain.
  • Up to 5mm particle size.



Product Specification

We could also customize according to your demands.

Name

Data

Type

GGP400/700/320/100TPI-E Grout station

Mixer

Volume(L)

400

Speed(rpm)

1500rpm

Agitator

Volume(L)

700L

Speed(rpm)

45

Power(KW)

3

Grouting pump

Stroke (mm)

110

Cylinder diameter (mm)

80

Pump speed (Times/min)

214

153

109

78

Flow(L/min)

320

230

165

118

Pressure(MPa)

2.2

3.6

 6.2

10

Power(KW)

30

Dimension

Dimension(mm)

2300×2100×1880

Weight(KG)

1500


Payment Terms:TT / LC / DP / DA
Packing:standard export packing or as your request
Lead Time:15
Standards Certificate:CE.ISO

Product Image

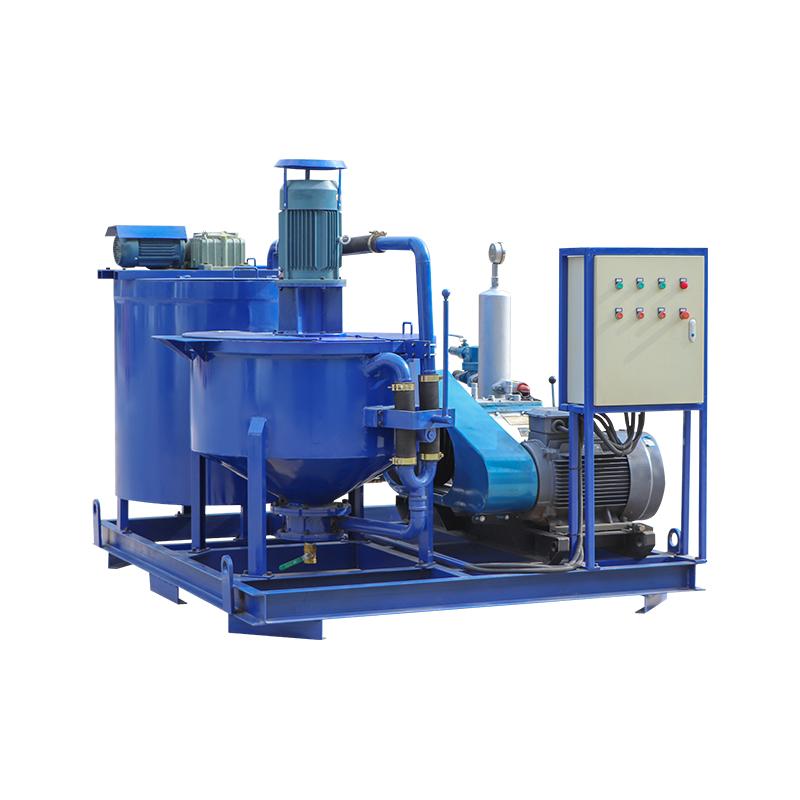

Three cylinders piston grout pump with mixer for construction 1
Img 1

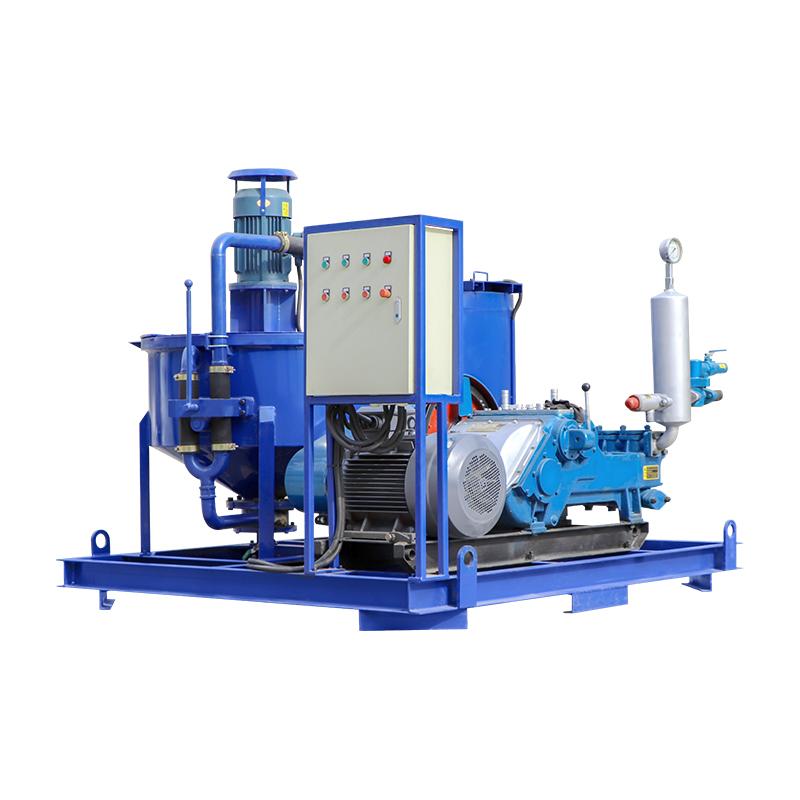

Three cylinders piston grout pump with mixer for construction 2
Img 2
Three cylinders piston grout pump with mixer for construction 3
Img 3
Three cylinders piston grout pump with mixer for construction 4
Img 4
Three cylinders piston grout pump with mixer for construction 5
Img 5
