| Model: | SCR535B |
|---|---|
| Brand: | SCR535B |
| Origin: | Made In Belgium |
| Category: | Electronics & Electricity / Electronic Components / Speaker,Trumpet & Buzzer |
| Label: | Micro Speaker , Piezoelectric buzzer , buzzer |
| Price: |
¥188
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:19 Apr, 2024 |
Product details

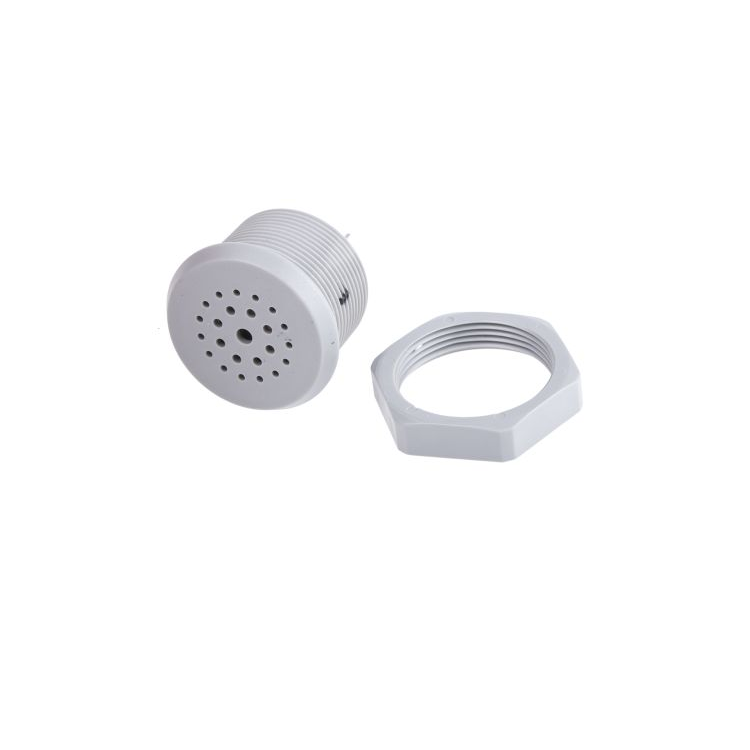

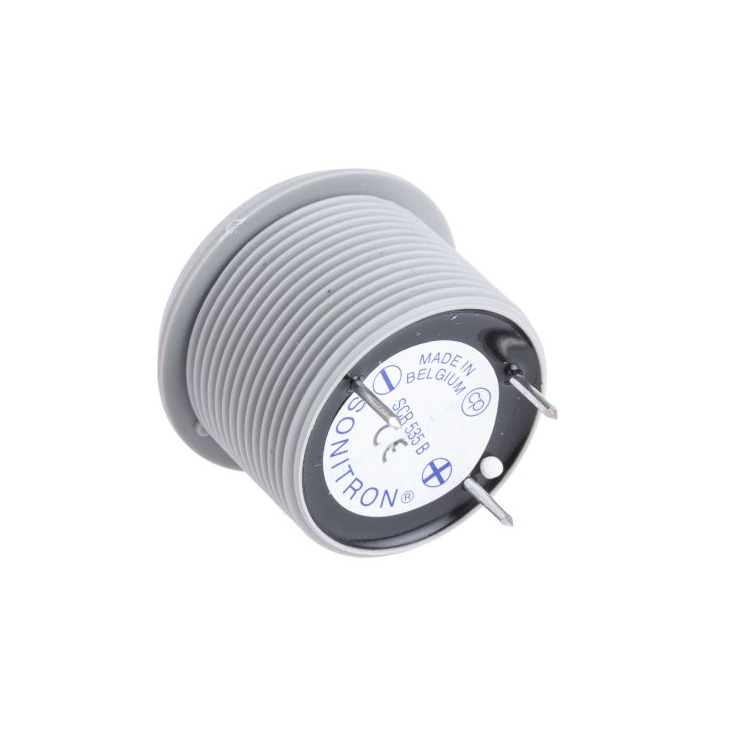

PCB pin of pulse tone buzzer installed in panel hole
Panel hole installation
Pulse tone buzzer
Printed circuit board pin connection
High output level
Internal circuit for DC operation
Product technical parameters
Attribute value
Installation type panel installation
Minimum supply voltage 5V DC
Maximum power supply voltage: 35V DC
Sound level: 84dB
Drive type internal
Tone type multi function
Diameter: 36.5mm
Height: 26mm
Size 36.5 (dia.) x 26mm
Minimum operating temperature - 35 ° C
Maximum operating temperature + 75 ° C
The maximum frequency is 4.025khz
The lowest frequency is 2975hz
Power supply current: 12.6ma
| Price Terms: | FOB SHENZHEN |
|---|---|
| Payment Terms: | TT |
| Packing: | 1 |
| Lead Time: | 9 Week |
