| Model: | 6550-C |
|---|---|
| Brand: | FUANSHI |
| Origin: | Made In China |
| Category: | Security & Protection / Other Security & Protection |
| Label: | baggage scanner , x-ray scanner , x-ray machine |
| Price: |
US $8000
/ unit
|
| Min. Order: | 1 unit |
| Live Chat: | Last Online:20 Aug, 2020 |
Model: FAS 6550C
Tunnel Size: 650(W)mm*500(H)mm

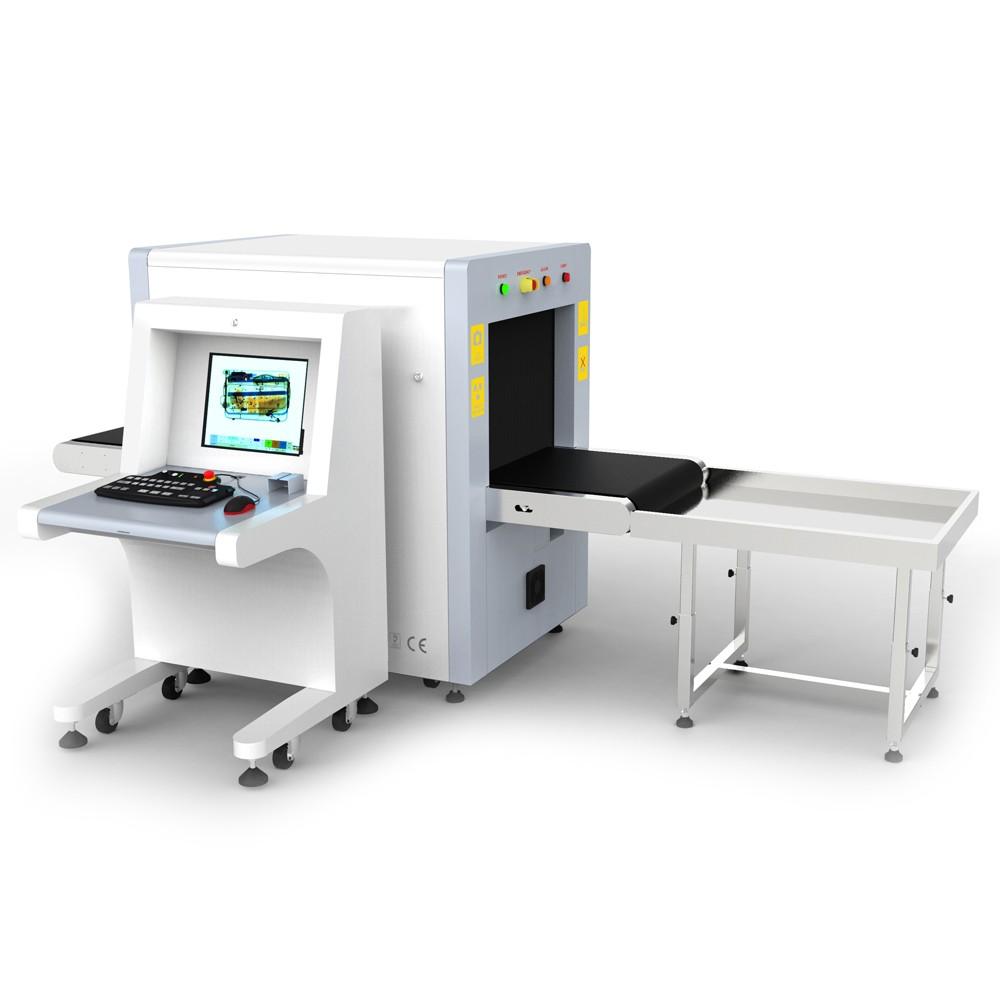

6550C X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand l age, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.
Advantages
Comprehensive leadership: Product performance of International first-class level, high- definition images, strong penetration, high resolution, and powerful material identification.
Unique system
with embedded windows operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process.
Safety and environmentally friendly
The equipment meets safety and environmental standards.
Stable and reliable
The production process is strictly controlled in accordance with the IS09001 quality management system. Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10,000 hours without failure.
Equipment functions
Imaging process functions: Color/BW, Local Enhancement, Enhancement of High Penetrating Power, Enhancement of low Penetrating Power, Super Enhancement, Organics Exclusion, Inorganic Exclusion, Negative, Brightening, Darkening, Gray-Level scan, Zoom in and out, Pseudo-color Processing, Organics Enhancement, Alarm sign box of suspicious object, Edge Enhancement.
System functions
Power-on self-test, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, device information query, multi-format image export, OSD operation function, image mirroring, 1-64 times stepless magnification, magnifying glass, Operator training, accurate positioning of package images, empty channel reminders, remote operation software, one-button shutdown, and intelligent roller engine (optional).
Scanned Images
Global sales
Product Data
| Tunnel size(mm) | 650(L)*500(W) |
| Conveyor Speed(m/s) | 0.2 |
| Conveyor Max Load(kgs) | 150 |
| Conveyor height(mm) | 695 |
| Unit weight | 475kgs |
| Unit size(mm) | 2808(L)*902(W)*1362.5(H) |
| Penetration | Typical 32mm steel, guarantee 30mm steel |
| Wire Resolution | Typical AWG38, guarantee AWG36 |
| X-Ray generator | 140KV, oil cooling, from bottom to top |
| Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/lowpenetration, organic /inorganic Stripping, general enhancement, and pseudo color,etc. |
| Image Archive | Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats. |
| Other Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc. |
