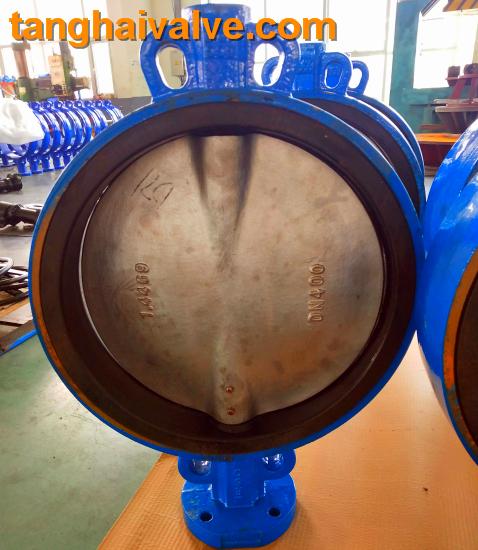

Wafer type butterfly valve (TH-BTV-AW)
Area of application
Marine industry, Water supply and drainage, fire fighting, shipbuilding, water treatment and other systems
Technical Parameters /Properties of Wafer type Butterfly valve
| TYPE: | Multi-Flange Wafer |
|---|---|
| SIZE & CONNECTIONS: | DN50 to D1200 |
| MEDIUM: | Air, Inert Gas, Oil, Seawater, Waste water, Water |
| MATERIALS: | Cast Iron / Ductile Iron/ Carbon Steel / Stainless
Steel / Alu Bronze |
| PRESSURE RATING: | PN10, PN16 |
| TEMPERATURE: | -30°C to 200°C |
| SEAT/LINING: | Replaceable Liner / Bonded Liner
NBR/EPDM/VITON |
| CERTIFICATES & APPROVALS: | DNV-GL, Lloyds, DNV, ABS, BV Type Approval
3.1 & 3.2 Cert (on request) |
Standards
Material of Parts
| PART NAME | Material |
|---|---|
| BODY | ASTM A536 65-45-12/ASTM A126 B
EN-JL 1040 (GG-25) EN-JS 1030 (GGG-40) EN-JS 1049 (GGG 40.3) Stainless steel (1.4408) Alu-Bronze |
| DISC / PLATE | DI+NI,CF8/CF8M,C954/C958
EN-JS 1030 (GGG-40) Stainless steel (1.4408) |
| SHAFT / STEM | SS431/SS420/SS410/SS304 |
| SEAT / LINING | NBR/EPDM/VITON |
| TAPER PINS | SS416/SS316 |
| BUSHING | BRASS/PTFE |
| O-RING | NBR/EPDM/VITON |
| KEY | STEEL |
Actuation
Wafer type butterfly valve features
