| Model: | CSEA025 |
|---|---|
| Brand: | SILURIAN, SKF, NSK |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Insulation |
| Label: | thin wall bearing , ball bearing , CSEA025 |
| Price: |
US $1.39
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:21 Nov, 2020 |

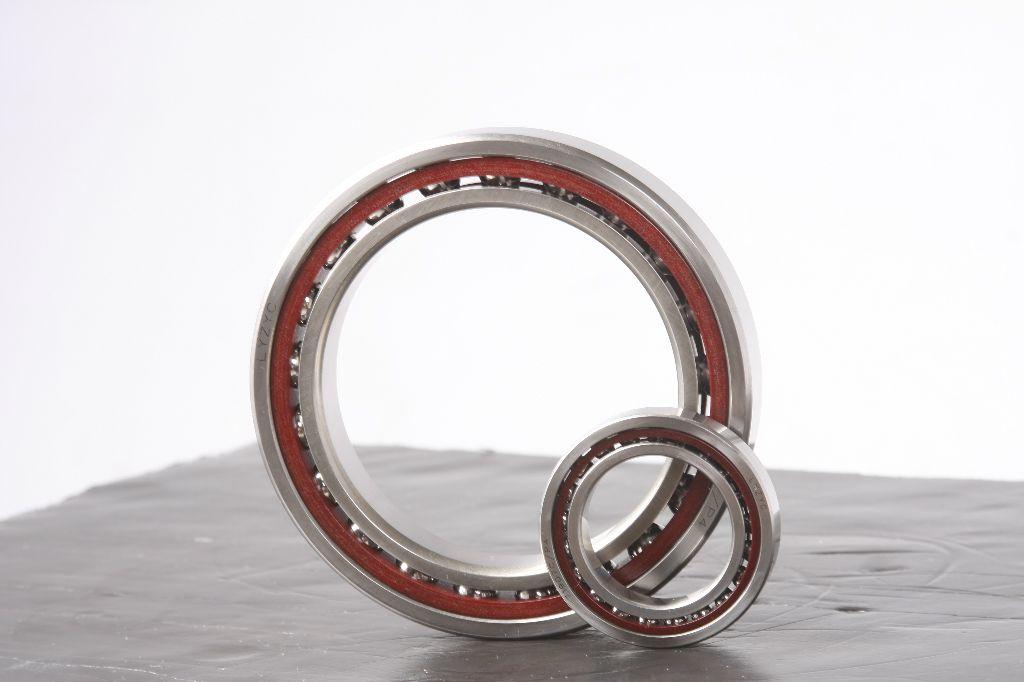

CSEA025 angular contact thin section bearings for the unmanned drone
Detailed Product Description
| Material: | 9Cr18 Or GCr15 | Accuracy: | P0/P6/P5 |
|---|---|---|---|
| Type: | Angular Contact Ball Bearing/Deep Groove Ball Bearing | Seal Type: | 2RS Or ZZ Or Open |
| Samples: | Available | Market: | Korean,Japan,China |
| d | 63,5 mm | |
| d | 2 1/2 inch | |
| D | 76,2 mm | |
| B | 6,35 mm |
| D1 | 71,5 mm | |
| D2 | 72,9 mm | |
| d1 | 68,2 mm | |
| rmin | 0,6 mm | min. 0,6 is the smallest chamfer distance and the largest permissible rounding radius on the shaft and in the housing. |
| m | 0,06 kg | Mass |
| Cr | 3550 N | Basic dynamic load rating, radial |
| C0r | 3800 N | Basic static load rating, radial |
| nG Öl | 8500 1/min | Limiting speed
With grease lubrication, the permissible value is taken as 70% of the value given in the table. |
