| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh |
| Label: | galvanized welded g , welded gabon wall , gabion baskets |
| Price: |
US $2
/ Square Met
|
| Min. Order: | 1 Square Met |
| Live Chat: | Last Online:02 Jul, 2020 |
Gabion welded Box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.

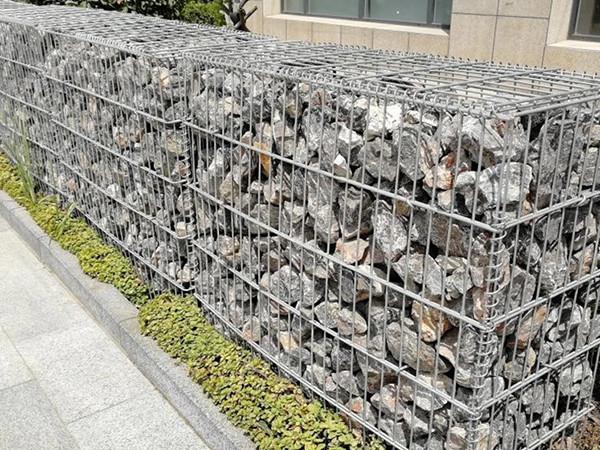

Welded gabion is high quality steel mesh.They can be filled on site with hard durable stone materials to form mass gravity retaining structures.Owing to their inflexibility.welded gabions can not adapt to differential settlement or be used in water courese.in comparison with woven wire gabions,welded gabions offer a higher strength.In order to meet different project requirements,various wire diameters and unit sizes are available for welded gabion boxes.
Specification:
| Material | Galvanized steel Wire,galfan wire/zinc-aluminum wire |
| Application | Garden |
| Hole Shape | Square |
| Wire Gauge | 3.0-8.0mm |
| Surface treatment | Galvanized PVC coated |
| Aperture | 5*5cm 5*10cm 10*10cm .ect |
| Aperture
(mm) |
Wire Diameter
(mm) |
Wire Diameter(PVC Coated)
Inner/outside(mm) |
Strands |
| 60x80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80x100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80x120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100x120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100x150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120x150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |
| Length | Width | Height | Diaphragm | Volume | Tolerance |
| 2.0m | 1.0m | 0.5m | 1 | 1.0m³ | L+/-3% |
| 3.0m | 1.0m | 0.5m | 2 | 1.5m³ | W+/-5% |
| 4.0m | 1.0m | 0.5m | 3 | 2.0m³ | H+/-5% |
| 2.0m | 1.0m | 1.0m | 1 | 2.0m³ | |
| 3.0m | 1.0m | 1.0m | 2 | 3.0m³ | |
| 4.0m | 1.0m | 1.0m | 3 | 4.0m³ |
| Payment Terms: | TT/LC |
|---|---|
