Product Description

Product Description

Abstracts

Leakage Current Sensor is a closed-loop low current sensor based on the principle of flux gate and adopting magnetic modulation technology. It can be divided into DC leakage current and AC leakage current. It has good stability in measuring low current and has high insulation value between primary and secondary.


It is widely applied to insulation leakage inspection and current inspection of signal control system in power grid and power plants, as well as other applications requiring current difference measurement. It is adopted in power plants, substations and all industrial enterprises that use DC control system, such as electric power, chemical industry, telecommunication, railway and other departments that have requirements for the safe operation of DC system, to perform monitoring the ground leakage current state of DC system, especially the monitoring of the low current state in the ground leakage current by DC system, eliminate the ground fault of DC system timely and precision, and eliminate the hidden trouble of DC system grounding in advance to avoid the harm caused by the simultaneous grounding of two points.

Features

⚫Good linearity and strong anti-interference capability

⚫Has the functions of power down protection and power polarity protection, etc.

⚫Excellent heat dissipation and insulation performance

Application Fields

⚫Electric power industry

⚫Solar energy industry

⚫New energy industry

⚫Industrial automation industry

Specification

Model

SCMH08

SCMH19

SCMH33

SCMH60

SCMH94

SCMH20B

SCMH40B

Unit

Maximum diameter

6

18

30

58

90

18

38

mm

Outline structure drawing

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7



Product structure class

Opening

Close



Measured current type

DC and AC



Rating value of measured IPN

10

20

50

100

200

500

1000

2000

3000

mA

Maximum value of measured current IP

±20

±50

±100

±200

±400

±800

±800

±3000

±5000

mA

Output signal

DC5V、DC±5V or 4-20mA (±1%)

V

Supply voltage VCC

DC±12V or DC24V(±5%)

V

Current consumption IC

<20

mA

Load resistance RL

≥10K

Ω

Linearity ε L

≤±1%

FS

Zero offset voltage VOL

≤±50 (TA =25℃)

mV

Zero offset temperature drift VOT

≤±2(IP=0 TA =-10~+60℃)

mV/℃

Insulation voltage VD

2.5KV /50Hz/1min

/

Operating ambient temperature TA

-25~+70 ℃

Storage ambient temperature TS

-40~+85 ℃

Packing & Delivery

Each pieces put into po bag, then to a paper box, then 50 pieces into a master carton. The master carton will put on the storage rack and stored in our warehouse before delivery.

Company Profile

Prestigious and without fear, Soway company is always in pursuit of excellence, growing in size and expanding its area of expertise. Today, the company employs a plethora of brilliant minds, which include a highly competent R&D team consisting more than 30 engineers. The team works enthusiastically and with a meticulous attention to detail, as they construct a supple supply of high-quality products. But Soway’s ambition does not end there. As we strive to take one solid step after another, we believe the company has what it takes to one day cement itself as one of the most prestigious sensor enterprises of all.

Certifications

FAQ

 1. Q: What payment method your company accepts?

A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat pay, L/C accordingly. If any other payment method is more convenient to you, please tell us by including a note while making payment.

2. Q: Can you do drop shipping?

A: Yes, we can help you ship the goods to any address you want. We will not put any catalogue or any document with our company info in it unless you requested.

3. Q: How long for the production time?

A: Normally in stock, or 7~10days depends on order quantity.

4. Q: You said we can use our own logo? What's the MOQ if we wanna do this?

A: Yes, 100pcs MOQ

5. Q: How long for delivery?

A: Usually take 3-7 days on delivery via express shipping methods.

6. Q: Can you train us oversea?

A: Yes, we can send engineer to your country and guide on installation etc, but all expense during should be considered by you, in order to save your cost, we can also do remote assistance online.

7. Q: Can we go to your factory?

A: Yes, the factory address:28# Xinfeng Road Potoubei Ailian Longgang, Shenzhen 518172, China. If you take metro, stop at Universiade station then transfer to the universiade sports center direction. a few minutes by taxi. or call us, we will go pick you up.


Product Image

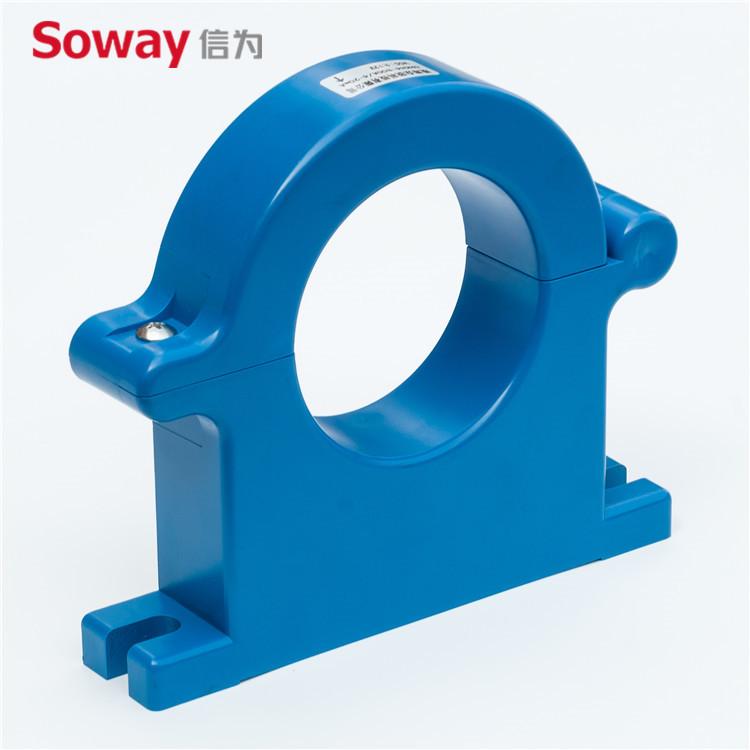

Leakage current sensor 1
Img 1

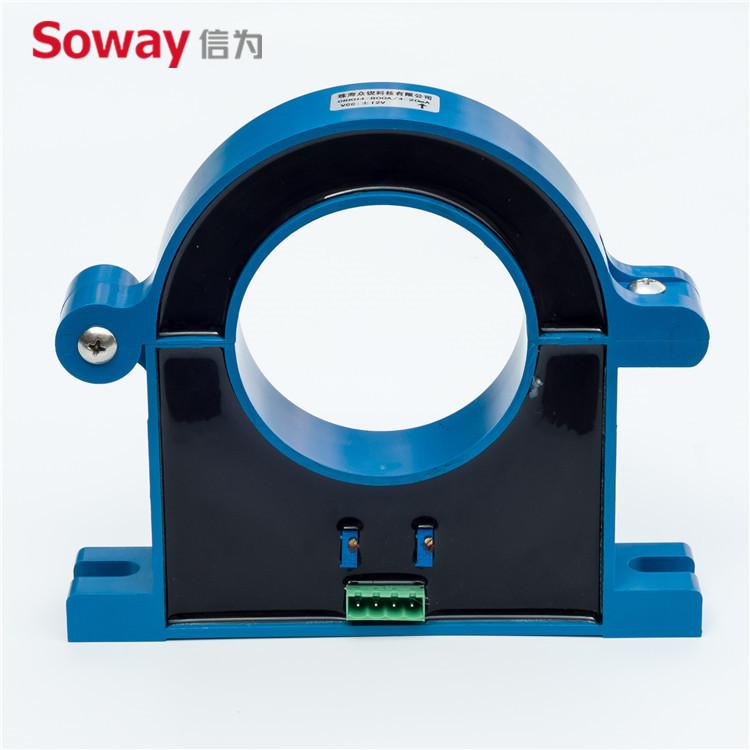

Leakage current sensor 2
