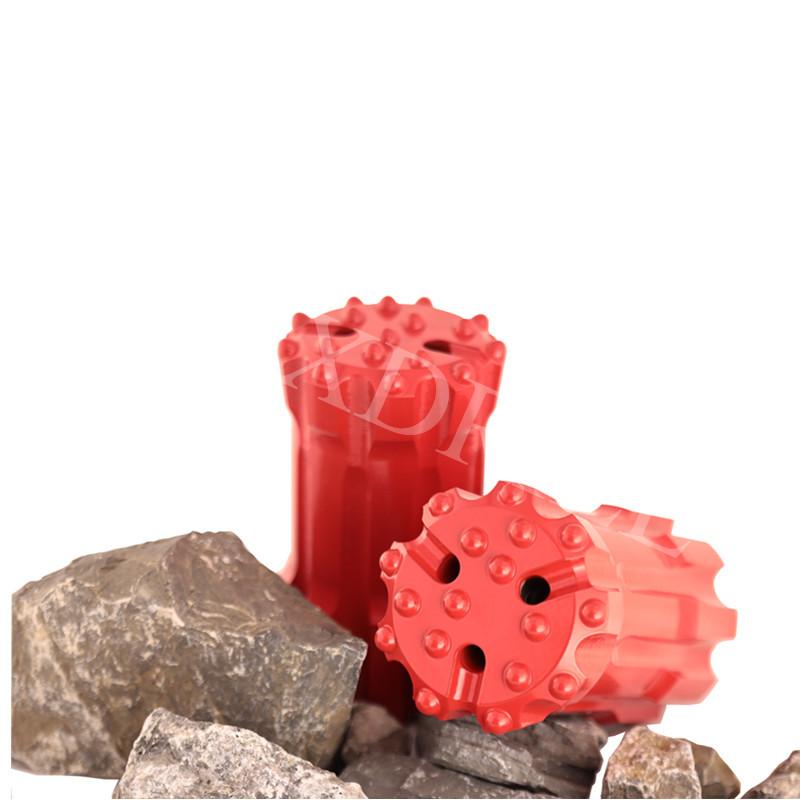

64mm T38 thread button drill bit rock mining drill bits
Product Description:
| Dimensions D | Flushing hole(mm) | Buttons(mm) | Angle | Class | Part no. | |||
| mm | in | Front No Size | Gauge No Size | Front No Size | Gauge No Size | |||
| 64 | 2 1/2 | 3*7 | 1*6 | 4*10 | 6*11 | 35° | M | 3064T3810D |
| 64 | 2 1/2 | 3*7 | 1*6 | 3*11 | 6*12 | 35° | H | 3064T38F09 |
| 64 | 2 1/2 | 2*9 | - | 4*10 | 8*10 | 35° | H | 3064T3812 |
| 70 | 2 3/4 | 2*8 | 2*6 | 4*11 | 8*11 | 35° | H | 3070T3812 |
| 76 | 3 | 2*9 | 2*7 | 4*11 | 8*12 | 35° | H | 3076T3812 |
| 89 | 3 1/2 | 2*13 | 2*8 | 5*12 | 8*13 | 35° | H | 3089T3813 |
| 76 | 3 | 2*10 | 2*7 | 4*11 | 8*12 | 35° | M | 3076T38F12 |
| 70 | 2 3/4 | 4*8 | - | 5*10 | 8*11 | 30° | M | 3070T3813D |
| 76 | 3 | 4*8 | - | 5*11 | 8*12 | 35° | M | 3076T3813D |
| 89 | 3 1/2 | 4*9 | - | 6*12 | 8*13 | 35° | M | 3089T3814D |
| 64 | 2 1/2 | 3*7 | 1*6 | 3*11 | 6*12 | 35° | M | 3064T38F09R |
| 89 | 3 1/2 | 4*10 | - | 6*12 | 8*13 | 35° | M | 3089T3814DR |
Length of drill rod: 1800mm-5530mm
Button bit design: Flat face, drop center, normal and retrac body.
Tungsten carbide (Buttons): Spherical, ballistic and conical.
Applications: bench Mining
