| Model: | BN123 |
|---|---|
| Brand: | Beno |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Heat Exchange & Air Conditioners |
| Label: | defrost heater , defrost heat element , defrost heaters |
| Price: |
US $1.5
/ pc
|
| Min. Order: | 50 pc |
| Live Chat: | Last Online:04 Aug, 2021 |

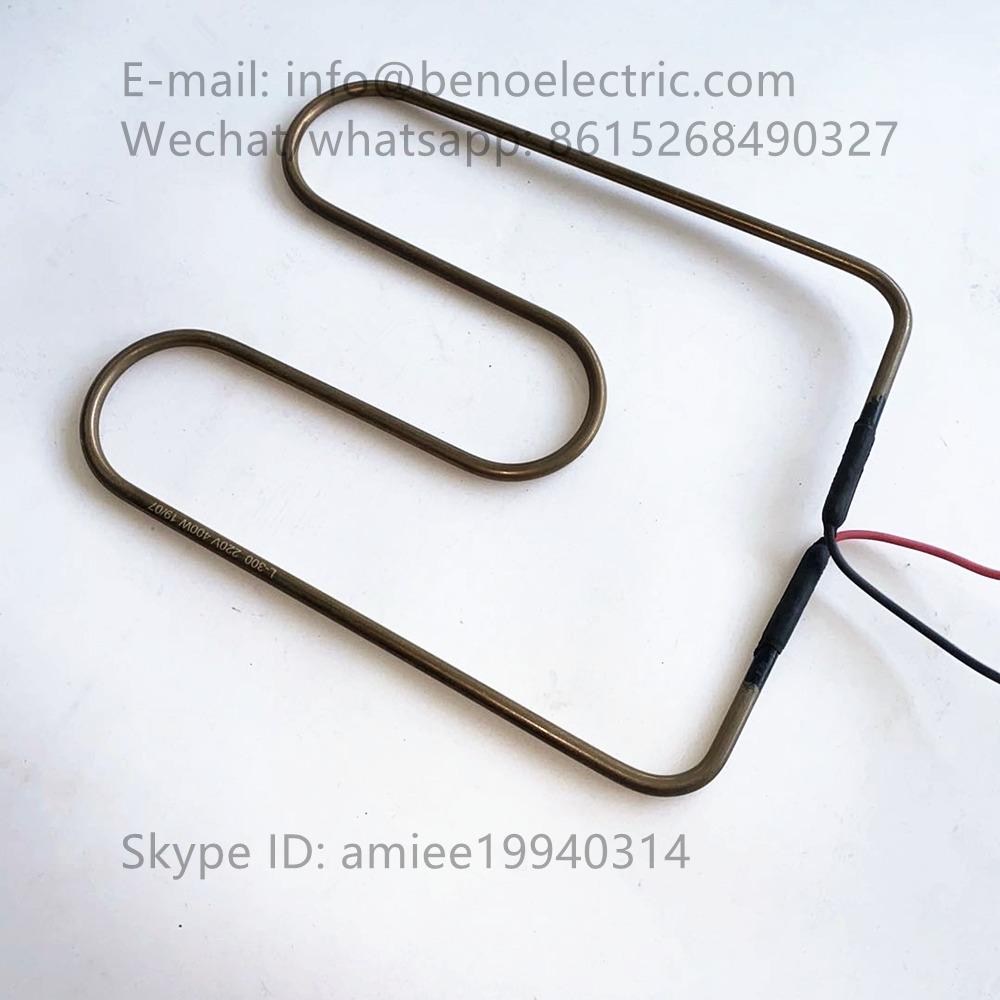

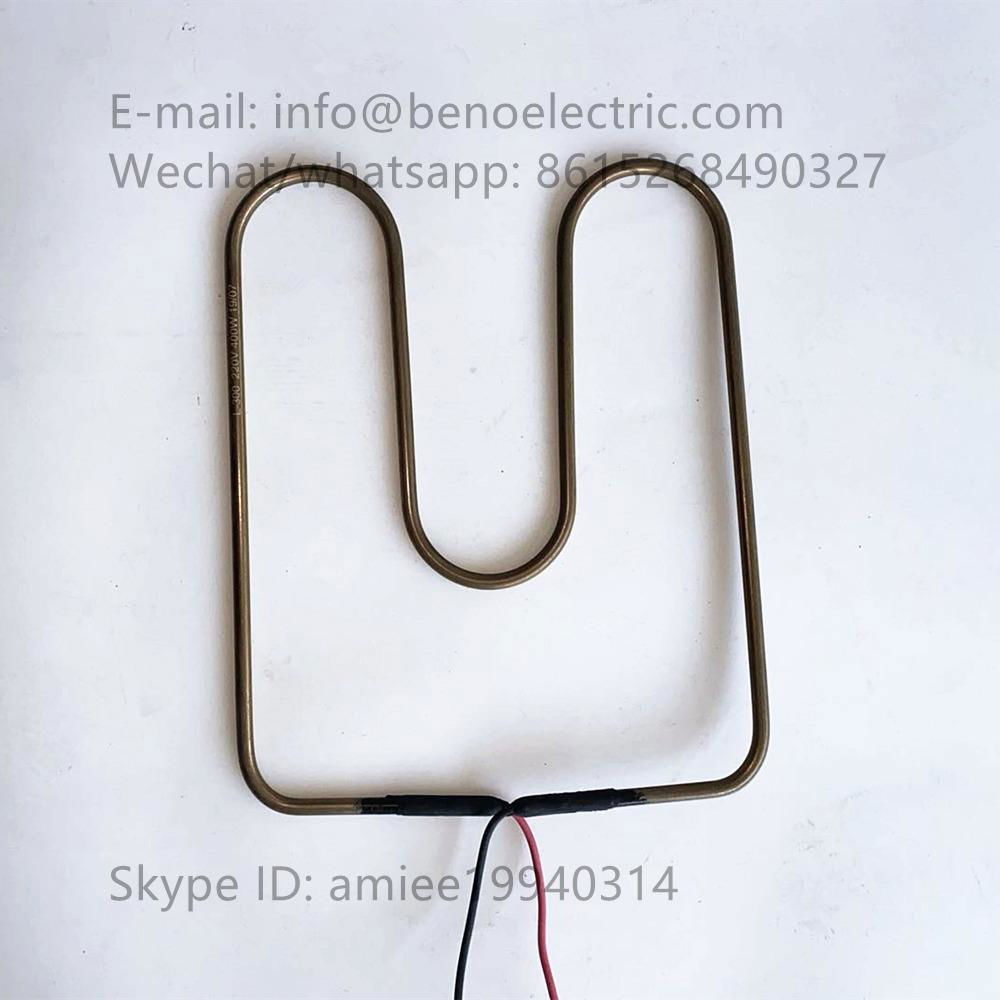

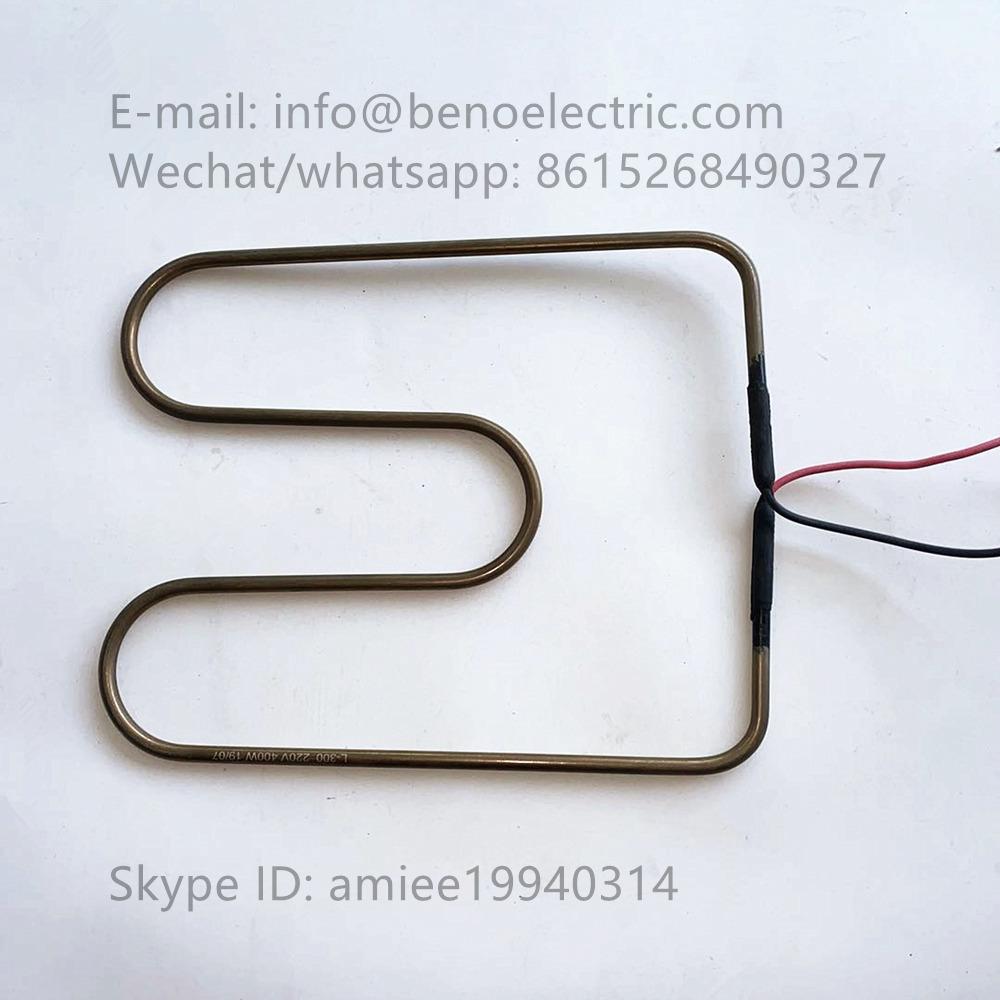

Refrigerator Defrost Heater Stainless Steel Tube Heating Element
Application of Defrost Heating Element for Freezer:
Defrost heating element is designed for defrosting hard of various kinds of freezer,refrigerator.It is adopted the stainless steel as the base material.Any shape to the user's requirements.This properties of the product are defrosted effectually,the insulating resistance is excellent,corrosion-resistant,resist and wear out.It is safe and reliable to carry the sealed dampproof performance of the end which obtained the national patent.
Feature and Technical Data of Defrost Heating Element for Freezer:
1.The material of tube is Incoloy 840,AISI 304,321
2.The diameter of tube is 6.5mm,8mm,8.5mm,9mm,10mm,11mm,12mm,14mm
3.Ambient temperature:-60℃-+125℃
4.High-voltage in test:16,00V/5S
5.Firmness of connection end:≥50N
6.High temperature molded Neoprene
7.Insulation resistance>500MΩ
8.Leakage current to be 0.5ma max while energized at rated voltage
9.Power tolerance:+5%,-10%
Customized Design and Options
Some Type of BN-U-F
| Type No. | Length(mm) | Length(inch) | Voltage | Power | φD1(mm) | L(mm) | φD2(mm) |
| BN-U-F-305 | 305 | 12'' | 110V/220V | 250W | 6.5mm | 250mm | D2=9.5mm |
| BN-U-F-355 | 355 | 14'' | 110V/220V | 280W | 6.5mm | 250mm | |
| BN-U-F-406 | 406 | 16'' | 110V/220V | 300W | 6.5mm | 250mm | |
| BN-U-F-457 | 457 | 18'' | 110V/220V | 335W | 6.5mm | 250mm | |
| BN-U-F-508 | 508 | 20'' | 110V/220V | 375W | 6.5mm | 250mm | |
| BN-U-F-533 | 533 | 21'' | 110V/220V | 395W | 6.5mm | 250mm | |
| BN-U-F-558 | 558 | 22'' | 110V/220V | 415W | 6.5mm | 250mm | |
| BN-U-F-584 | 584 | 23'' | 110V/220V | 455W | 6.5mm | 250mm | |
| BN-U-F-610 | 610 | 24'' | 110V/220V | 475W | 6.5mm | 250mm |
Sample terms:
1. All heaters can try sample, in order to let customer check our product performance before order
2. Sample fee can 100% refunds to customer when you place the order.
3. Special customized product, can send sample to us, we can product as 1:1 your sample .
Package and Delivery
Package: packed by carton or wooden case oe customized
Delivery: 15-20 days after receiving the payments
Picture for used in Evaporator, Refrigerator, Freezer ,Unit cooler
We can send the sample to you for free. you can test our qanlity!!
| Payment Terms: | TT/LC/DP/DA/Paypal/Western Union |
|---|---|
