DC BRUSHLESS VENTILATOR AXIAL FLOW EXHAUST FAN 12025

DC BRUSHLESS VENTILATOR AXIAL FLOW EXHAUST FAN 12025 1

DC BRUSHLESS VENTILATOR AXIAL FLOW EXHAUST FAN 12025 2

Model:	D12025
Brand:	CHUNGFO
Origin:	Made In China
Category:	Consumer Electronics & Lighting / Exhaust、Ventilator
Label:	dc fan , dc brushless fan , Axial Fan
Price:	US $2 / pc
Min. Order:	1000 pc

Inquire Now Add to Basket

Member Information

Chungfo Technology Co., Ltd

Free MemberGuang Dong - China

Live Chat:

Last Online:08 May, 2020

Product Description

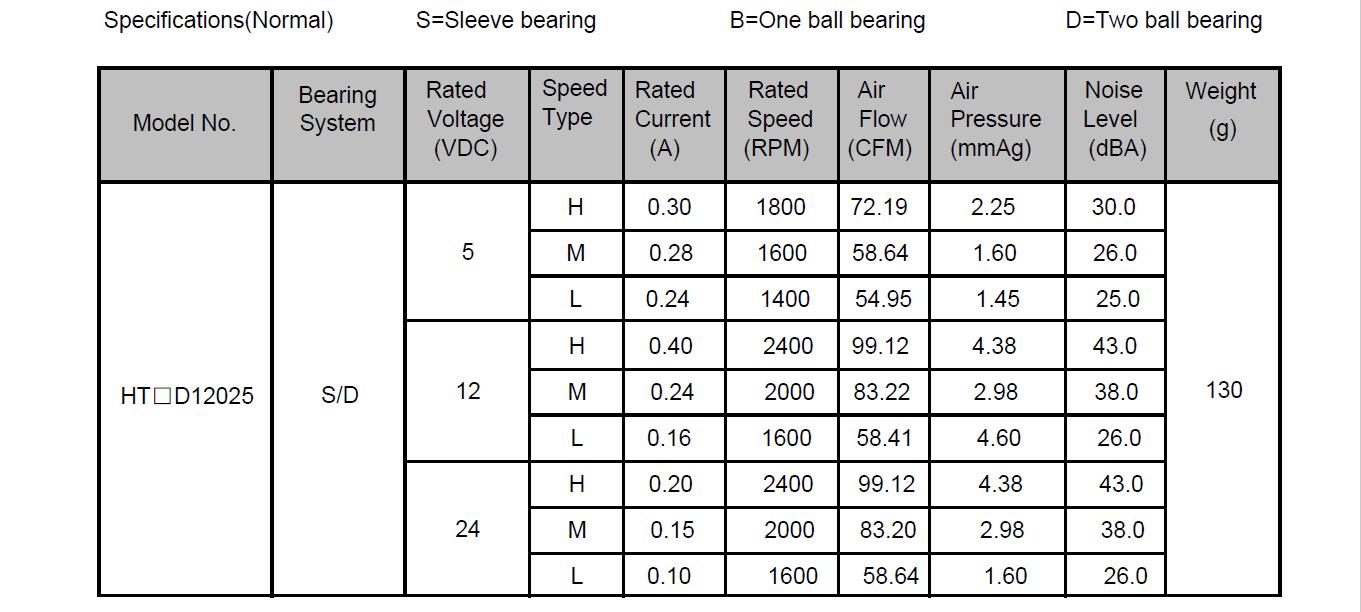

Specifications

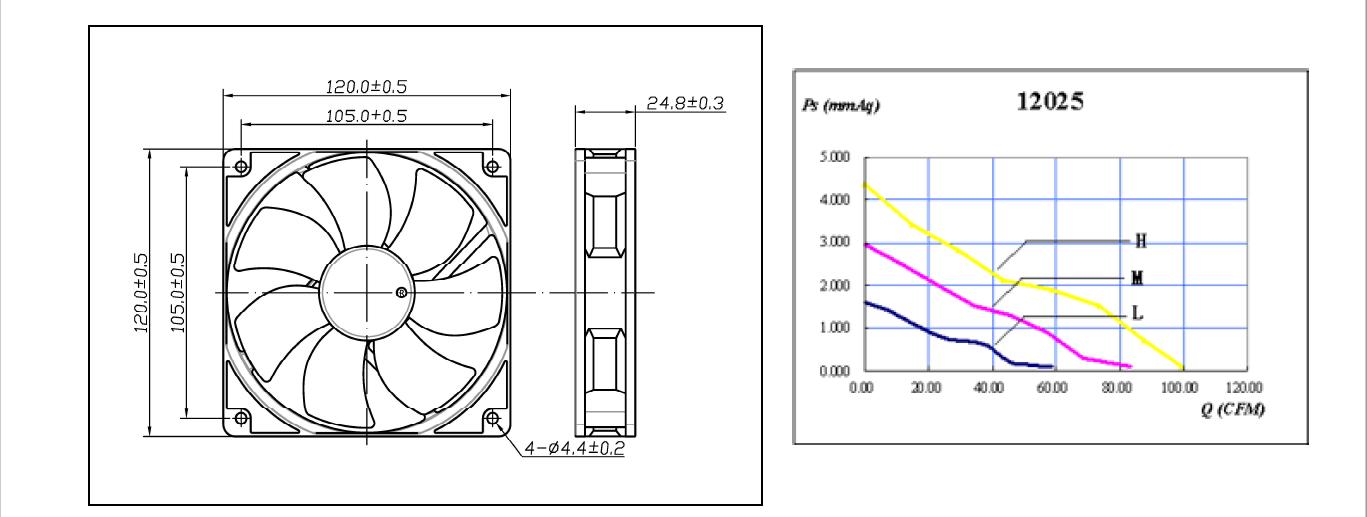

Frame Size:120*120*25mm

Voltage:5V/ 12V\24V

Bearing type:sleeve bearing/ball bearing

Speed: 1400rpm---2400rpm

Noise: 23Dba---43dBA

Frame:Plastic

Impeller:Plastic

Safety Approvals:CE, TUV, UL, CUL

Electric strength:1mAmax at 1000VAC for 1 min between lead wire and frame.

Insulation resistance:10M ohm between lead wire and frame(DC 500V)

Life expectancy(ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+/-20%

Life expectancy(sleeve bearing):30,000hrs rain at 25 degree C relative humidity 65%+/-20%

Operation temperature:-10 to 70℃

Storage temperature:-40 to 75℃

Payment Terms:	TT
