AC BRUSHLESS VENTILATION AXIAL FLOW EXHAUST FAN MOTOR

AC BRUSHLESS VENTILATION AXIAL FLOW EXHAUST FAN MOTOR 1

AC BRUSHLESS VENTILATION AXIAL FLOW EXHAUST FAN MOTOR 2

Model:	A11025
Brand:	CHUNGFO
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Draught Fan
Label:	ac fan motor , Axial Flow Fan , Axial Fan
Price:	US $2 / pc
Min. Order:	1000 pc

Inquire Now Add to Basket

Member Information

Chungfo Technology Co., Ltd

Free MemberGuang Dong - China

Live Chat:

Last Online:08 May, 2020

Product Description

Specifications

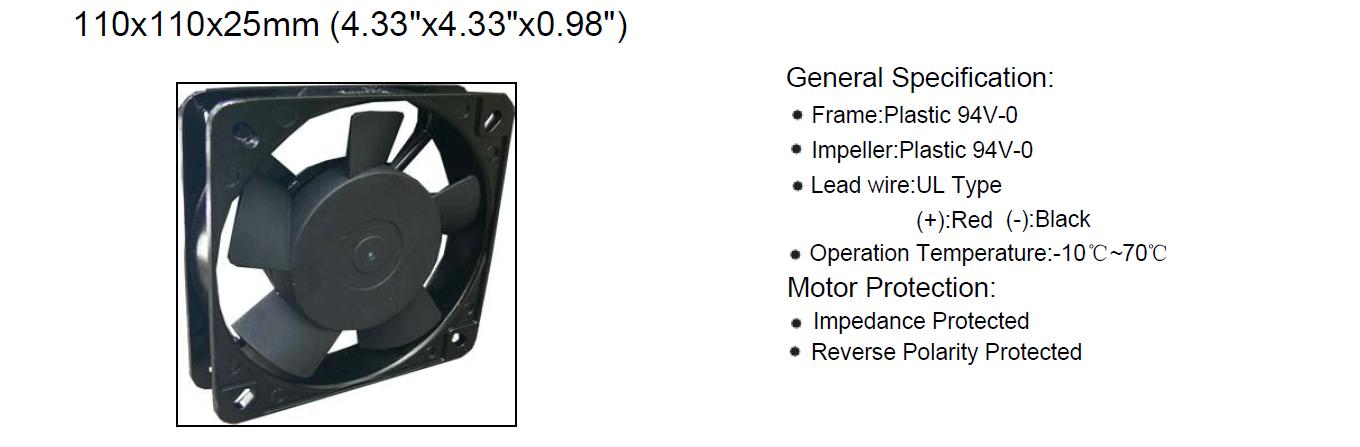

AC Fan/ AC Axial Fan A11025
Frame Size:110*110*25mm
Voltage:110V 60Hz/220V 50Hz
Bearing type:sleeve bearing/ball bearing
Speed: 2000/2200RPM
Noise:30dBA~36dBA
Frame:aluminum alloy
Impeller:Plastic
Safety Approvals:CE, TUV, UL, CUL, CCC
Electric strength:AC1500V for 3 sec(0.5Ma allowable between lead and frame)
Insulation resistance:10M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing):50,000hrs rain at 25 degree C relative humidity 65%+/-20%
Life expectancy(sleeve bearing):30,000hrs rain at 25 degree C relative humidity 65%+/-20%
Operation temperature:-10℃ to 70℃
Storage temperature:-40 to 75℃

Payment Terms:	TT

Product Image

Img 1

Img 2

Img 3

Img 4
